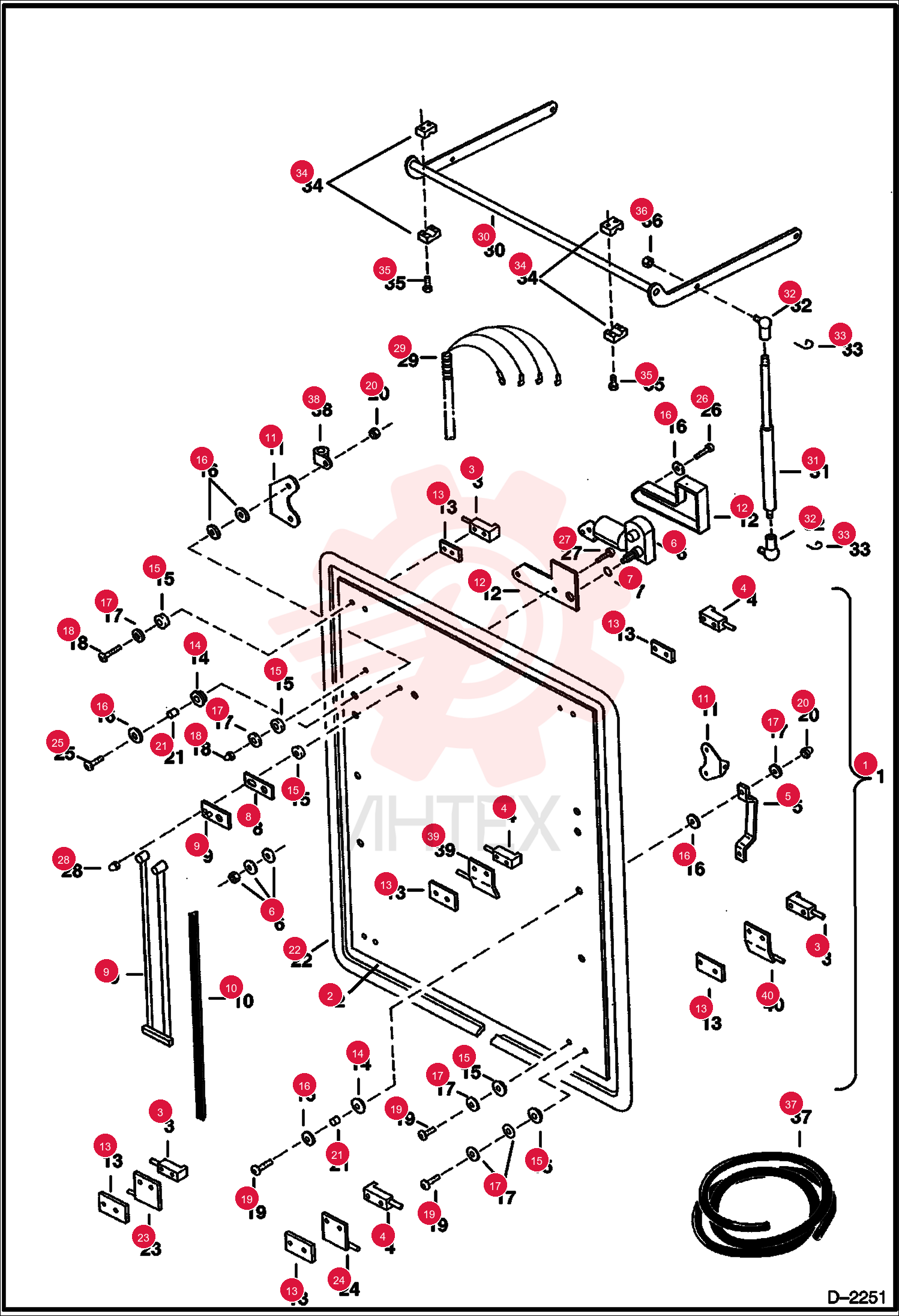

320.0
/
LATCH

LATCH

LATCH

1 6664158

  • 6664158 - LATCH
  • Window

2 6664157

  • 6664157 - LATCH
  • Window

3 6664109

  • 6664109 - HANDLE
  • Front Window

4 6668137

  • 6668137 - MOTOR
  • WIPER
  • single speed

5 6664094

  • 6664094 - MOTOR
  • WIPER
  • 2 Speed

6 25K30020

  • 25K30020 - O-RING 10
  • Wiper Motor Shaft - Was 6664098

7 6664178

  • 6664178 - GASKET

8 6664095

  • 6664095 - ARM
  • WIPER
  • W/pivot mount

9 6664096

  • 6664096 - BLADE
  • WIPER WINDOW

10 6664151

  • 6664151 - HINGE
  • Front Window

11 6664177

  • 6664177 - COVER
  • Wiper - Motor

12 6668119

  • 6668119 - RUBSPACER
  • Latch - Rubber - 1/8" (4 mm) thick - Early Style

13 6800788

  • 6800788 - GROMMET
  • .813 Mounting Hole - Was 6664087

14 6664089

  • 6664089 - GROMMET
  • .406 Mounting Hole

15 6664090

  • 6664090 - WASHER
  • 1'' (25mm) OD

16 6664065

  • 6664065 - WASHER
  • 11/16" O.D.

17 6668410

  • 6668410 - BOLT
  • 3/4" Long -/8" (4mm) Thick Spacer - Ref. 13

18 6664064

  • 6664064 - BOLT
  • 7/8" long - /4" (8mm) Thick Spacer - Ref. 13

19 6664068

  • 6664068 - BOLT
  • 1 1/4" long

20 7031515

  • 7031515 - NUT
  • Acorn 1/4" - Was 6664056

21 6664086

  • 6664086 - BUSHING

22 6664153

  • 6664153 - GUIDE PIN
  • R.H. - Straight Body - Early Style

23 6664154

  • 6664154 - GUIDE PIN
  • L.H. - Straight Body - Early Style

24 25G416

  • 25G416 - BOLT
  • 1" (25.4mm) long - Was 6664067

25 6664565

  • 6664565 - SCREW
  • 7/8" long

26 6664566

  • 6664566 - SCREW
  • 3/4" long

27 7031685

  • 7031685 - NUT
  • ACORN
  • Was 6664103

28 6669141

  • 6669141 - HARNESS
  • Cab - Was 6628903

29 6669142

  • 6669142 - HARNESS
  • Wiper Motor - Single speed

30 6803154

  • 6803154 - LINKAGE
  • Window Pivot - Was 6664148

31 6667348

  • 6667348 - CYLINDER
  • Gas Spring - with single gas spring - R.H. side only

32 6664074

  • 6664074 - SPRING
  • GAS
  • Gas Spring - When 2 Gas Springs are used

33 6664073

  • 6664073 - CLIP
  • Ball Joint Retainer

34 6649244

  • 6649244 - BALL STUD
  • Cylinder - Was 6664072

35 6664560

  • 6664560 - BLOCK
  • Linkage Mount

36 6664059

  • 6664059 - BOLT

37 6648364

  • 6648364 - NUT
  • LOCK

38 6664088

  • 6664088 - SEAL
  • bulk - sold per foot

39 30H21

  • 30H21 - CLAMP 10
  • Wire Harness - Was 30H000018B

40 6628879

  • 6628879 - GUIDE PIN
  • RH - Bent Body - Later Style - Was 6667190

41 6628880

  • 6628880 - GUIDE PIN
  • LH - Bent Body - Later Style - Was 6667191
