Bobcat
/
324.0
/

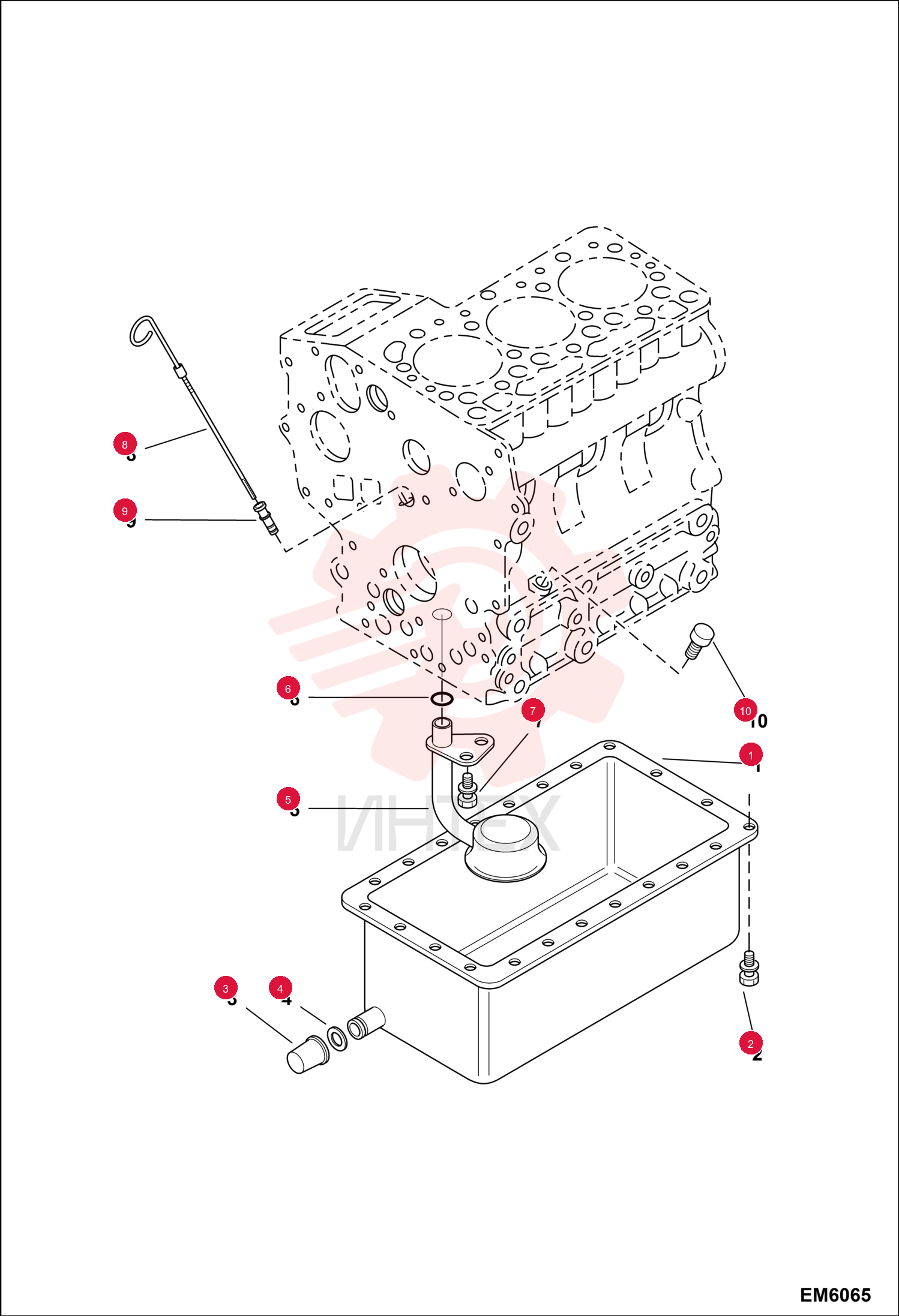

OIL PAN

OIL PAN

OIL PAN

1 6688056

  • 6688056 - OIL PAN
  • W/O adapter

2 1CM614

  • 1CM614 - SCREW HEX CAP
  • Was 4CM614

3 6687741

  • 6687741 - PLUG
  • W/Ref. 4

4 6670347

  • 6670347 - GASKET
  • Was 6691271

5 6670348

  • 6670348 - SCREEN

6 6680284

  • 6680284 - O-RING

7 6667420

  • 6667420 - BOLT

8 6688077

  • 6688077 - DIPSTICK

9 6677203

  • 6677203 - TUBE
  • DIPSTICK
  • W/Ref. 10

10 6673314

  • 6673314 - O-RING

11 6969804

  • 6969804 - PLUG
  • OIL GAUGE
