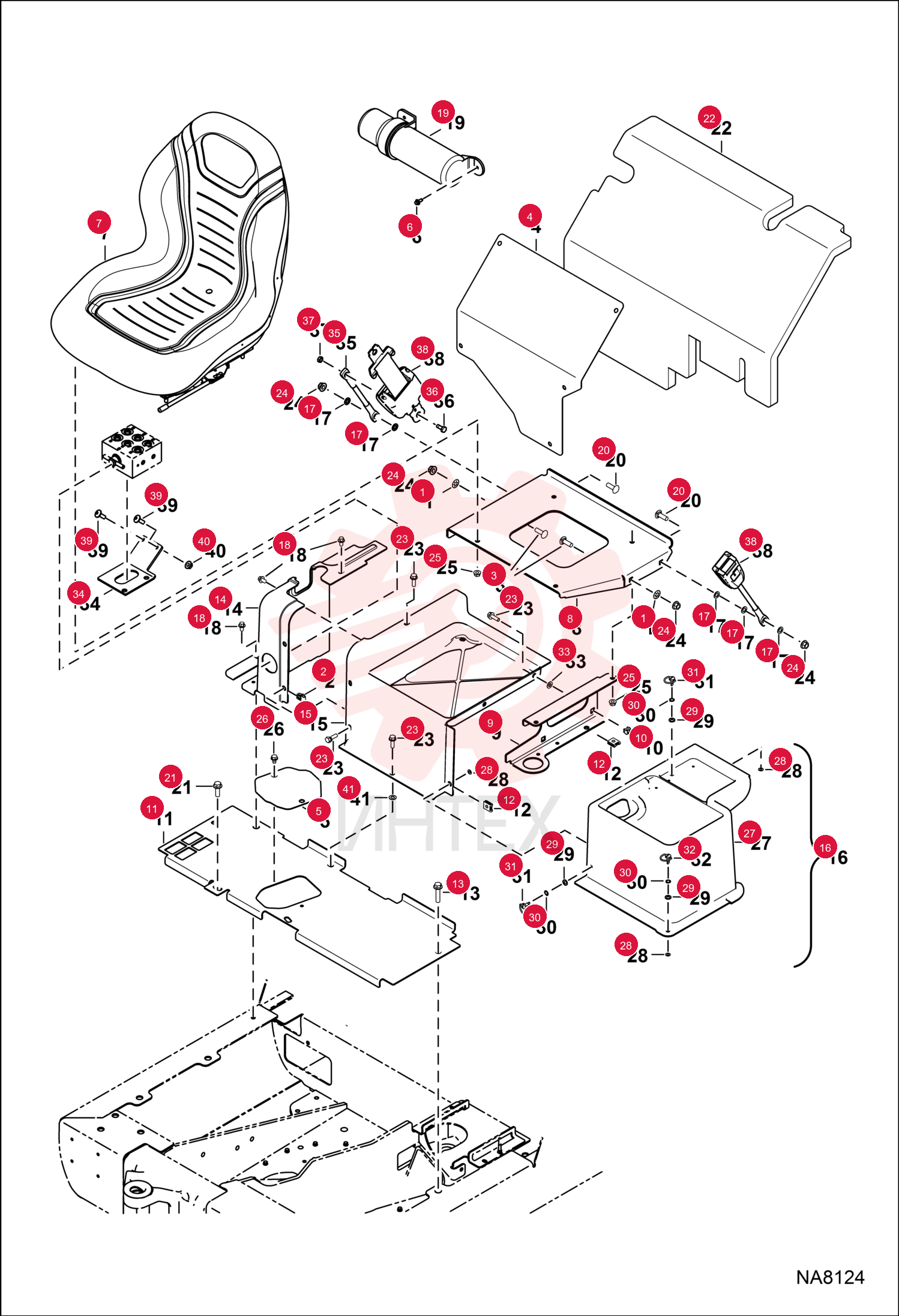

RETAINER BOLT
1 6674264
- 6674264 - RETAINER BOLT
2 6676169
- 6676169 - NUT
3 28CM1025
- 28CM1025 - BOLT CARRIAGE 8.8
4 7218559
- 7218559 - COVER
5 7143811
- 7143811 - COVER
- MOTOR
6 7108147
- 7108147 - CONTAINER
- MANUAL
7 7238518
- 7238518 - SEAT
- OPERATOR BUCKET VINYL
8 7232887
- 7232887 - MOUNT
- SEAT
9 7232888
- 7232888 - BRACKET
- TANK
10 7186072
- 7186072 - NUT
11 7213041
- 7213041 - PLATE
- FLOOR
12 7186077
- 7186077 - CLIP
13 29CM1030
- 29CM1030 - SCREW FLGD HEX CAP
14 7191057
- 7191057 - COVER
- RH
15 7193053
- 7193053 - COVER
- W/Ref. 33-34
16 7204431
- 7204431 - COVER LH ASSY
- Ref. 27-32
17 15EM100
- 15EM100 - WASHER
18 26GM8016
- 26GM8016 - SCREW SELF TAPPING
19 6810157
- 6810157 - SCREW
20 28CM1030
- 28CM1030 - BOLT CARRIAGE 8.8
21 29CM1030
- 29CM1030 - SCREW FLGD HEX CAP
22 7219701
- 7219701 - INSULATION
23 29CM825
- 29CM825 - SCREW HEX HD W/F 8.8
24 51DM10
- 51DM10 - NUT HX THDLK PREAPPL
25 51DM8
- 51DM8 - NUT HX THDLK PREAPPL
26 84G3108
- 84G3108 - BOLT
27 7186064
- 7186064 - COVER
- LH
28 7186078
- 7186078 - WASHER
29 7186079
- 7186079 - WASHER
30 7186080
- 7186080 - SPRING
31 7193050
- 7193050 - STUD
32 7193050
- 7193050 - STUD
- Was 7193051
33 7193049
- 7193049 - WASHER
- glued
34 7191056
- 7191056 - BRACKET
35 7207356
- 7207356 - CABLE
- STALK
36 1CM1025
- 1CM1025 - BOLT
37 53DM10
- 53DM10 - NUT HX THDLK PREAPPL
38 7207354
- 7207354 - BELT
- SEAT
39 29CM620
- 29CM620 - SCREW FLGD HEX CAP
40 51DM6
- 51DM6 - NUT HX THDLK PREAPPL
