Bobcat
/
325.0
/

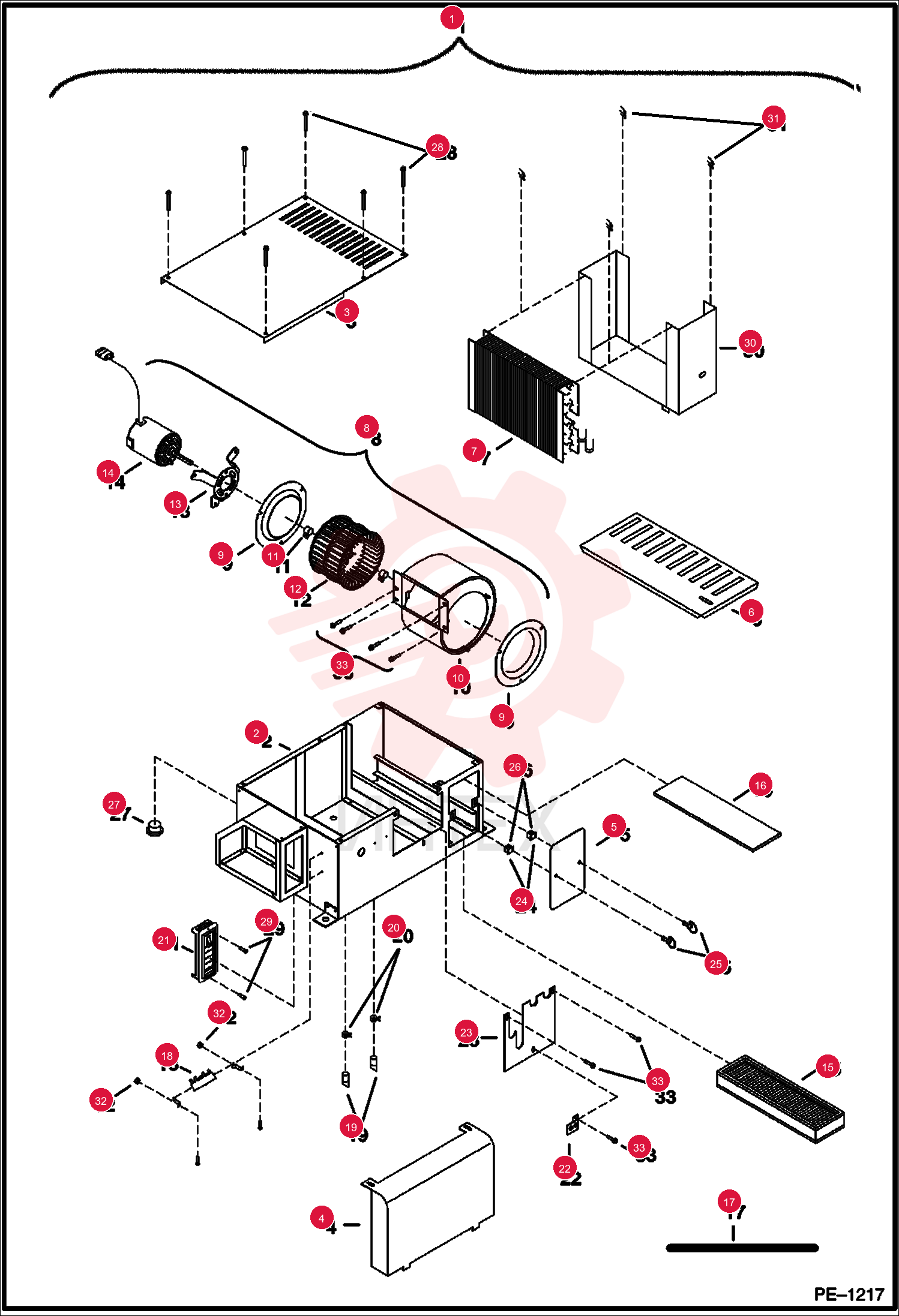

CASE

CASE

CASE

1 6677538

  • 6677538 - CASE

2 6677539

  • 6677539 - COVER

3 6677540

  • 6677540 - PLATE
  • COVER

4 6677541

  • 6677541 - PLATE

5 6677542

  • 6677542 - SUPPORT
  • coil

6 6677543

  • 6677543 - COIL
  • heater

7 6677544

  • 6677544 - BLOWER
  • Ref. 9-14 & 33

8 6677546

  • 6677546 - VENTURI

9 6677545

  • 6677545 - HOUSING

10 6676618

  • 6676618 - CLIP

11 6677547

  • 6677547 - WHEEL
  • blower

12 6677548

  • 6677548 - BRACKET
  • motor

13 6677549

  • 6677549 - MOTOR

14 6674230

  • 6674230 - FILTER
  • fresh air

15 6677550

  • 6677550 - FILTER
  • recirculating

16 6677551

  • 6677551 - HARNESS
  • not shown

17 6677552

  • 6677552 - RESISTOR

18 6675511

  • 6675511 - VALVE
  • DRAIN

19 6675510

  • 6675510 - CLAMP
  • drain

20 6676713

  • 6676713 - LOUVER

21 6677553

  • 6677553 - BRACKET

22 6677554

  • 6677554 - COVER
  • coil

23 6677555

  • 6677555 - RECEPTACLE
  • snap in

24 6677556

  • 6677556 - STUD

25 6677557

  • 6677557 - RETAINER

26 6677560

  • 6677560 - CAP

27 26GM5010

  • 26GM5010 - SCREW

28 87G606

  • 87G606 - SCREW

29 6677759

  • 6677759 - NUT
  • not used with a/c

30 6676539

  • 6676539 - CLIP PANEL

31 43DM5

  • 43DM5 - NUT

32 87G510

  • 87G510 - SCREW
