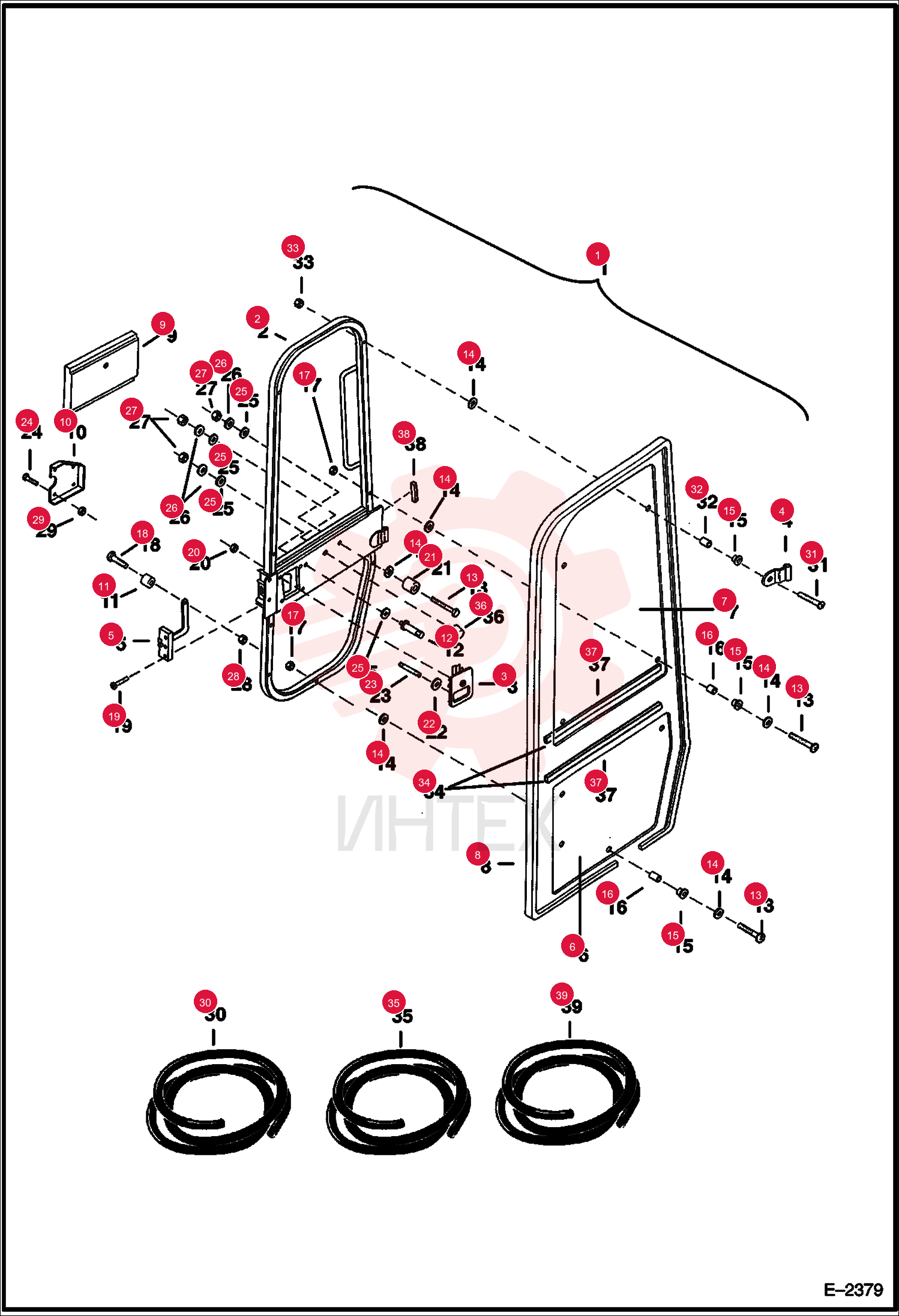

LATCH
1 6661631
- 6661631 - LATCH
- Outside
2 6587458
- 6587458 - KEY CAP FUEL 2
3 6628872
- 6628872 - HINGE
- Top - Was 6664139
4 6664572
- 6664572 - LATCH
- Inside - with handle
5 6664573
- 6664573 - GLASS
- Bottom
6 6664574
- 6664574 - GLASS
- Top
7 6664576
- 6664576 - COVER
- Door latch
8 6664092
- 6664092 - KNOB
- Door latch
9 6800844
- 6800844 - RETAINER
- Door Hold Open Replacement
10 6664066
- 6664066 - BOLT
- 2" (51mm) long
11 6664090
- 6664090 - WASHER
- 1'' (25mm) OD
12 6800788
- 6800788 - GROMMET
- Was 6664087
13 6664086
- 6664086 - BUSHING
- 3/8" (9
- 5mm) long
14 6667837
- 6667837 - NUT
- Hex 1/4"
15 7031515
- 7031515 - NUT
- Acorn 1/4" - Was 6664056
16 85G1010
- 85G1010 - SCREW
17 6648410
- 6648410 - 6532045
18 85D4
- 85D4 - NUT 5
19 6664569
- 6664569 - BUMPER
20 61D6
- 61D6 - NUT HEX FINISHED GR5
- Was 6648418
21 38C816
- 38C816 - BOLT
- Striker - Was 6667838
22 26GM6016
- 26GM6016 - BOLT
- Self-Tapping - Used when Ref. 29 is not present - Was 6589675
23 6667839
- 6667839 - BOLT
- Self-Tapping - Use W/Ref. 29
24 6657095
- 6657095 - BOLT
25 6648397
- 6648397 - WASHER
- FLAT
26 4E5
- 4E5 - WASHER
27 61D5
- 61D5 - NUT HEX FINISHED GR5
28 12D10
- 12D10 - NUT
- Was 6664050
29 6664570
- 6664570 - NUT
- Clip - early machines only
30 6664088
- 6664088 - SEAL
- bulk - sold per foot
31 6667842
- 6667842 - BOLT
- 2-1/4" (957mm) long
32 6667840
- 6667840 - BUSHING
- 3/8" (9
- 5mm) long
33 6667843
- 6667843 - NUT
- 5/16"
34 6654162
- 6654162 - SEAL
- bulk - sold per foot
35 6733616
- 6733616 - BUMPER
- Was 6649040
36 7030243
- 7030243 - SEAL
- FOAM
- 1206 mm (47.5") long - Order as needed - Was 6584202
