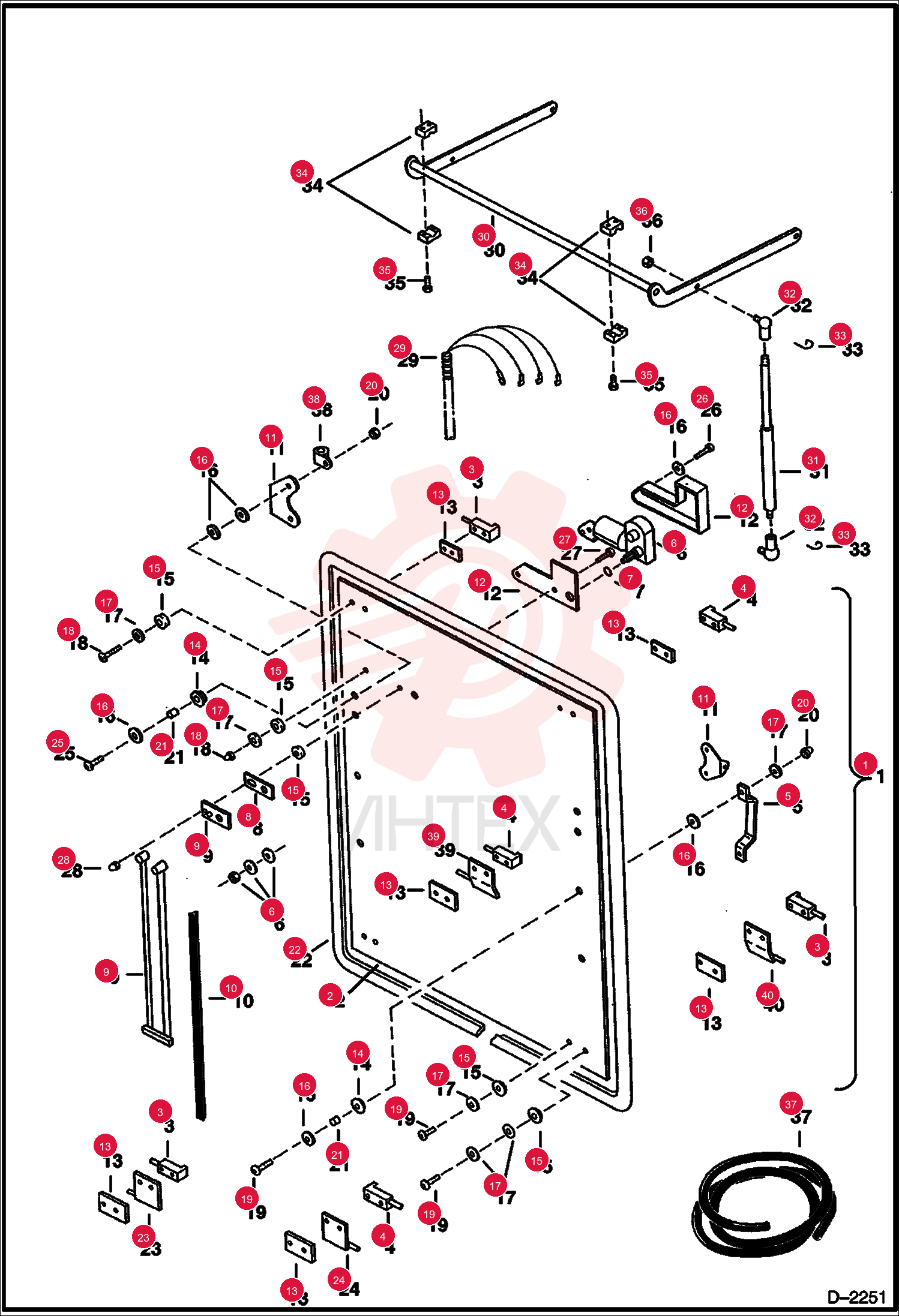

LATCH
1 6664158
- 6664158 - LATCH
- Window
2 6664157
- 6664157 - LATCH
- Window
3 6664109
- 6664109 - HANDLE
- Front window
4 6664094
- 6664094 - MOTOR
- WIPER
- 2 speed
5 6668137
- 6668137 - MOTOR
- WIPER
- single speed
6 25K30020
- 25K30020 - O-RING 10
- Wiper motor shaft - Was 6664098
7 6664178
- 6664178 - GASKET
8 6664095
- 6664095 - ARM
- WIPER
- W/pivot mount
9 6664096
- 6664096 - BLADE
- WIPER WINDOW
10 6664151
- 6664151 - HINGE
- Front window
11 6664177
- 6664177 - COVER
- Wiper - Motor
12 6668119
- 6668119 - RUBSPACER
- Latch - Rubber - 1/8" (4mm) Thick - Later style
13 6664087
- 6664087 - GROMMET
- .813 mounting hole
14 6664089
- 6664089 - GROMMET
- .406 mounting hole
15 6664090
- 6664090 - WASHER
- 1'' (25mm) OD
16 6664065
- 6664065 - WASHER
- 11/16" OD
17 6668410
- 6668410 - BOLT
- 3/4" long - Use W/Ref. 39 or 40 & Ref. 13 (6668119 spacer)
18 6664064
- 6664064 - BOLT
- 7/8" long - Use W/Ref. 23 or 24 & Ref. 13 (6664159 spacer)
19 6664068
- 6664068 - BOLT
- 1 1/4" long
20 7031515
- 7031515 - NUT
- Acorn 1/4" - Was 6664056
21 6664086
- 6664086 - BUSHING
22 6664153
- 6664153 - GUIDE PIN
- R.H. - Straight Body - Early Style
23 6664154
- 6664154 - GUIDE PIN
- L.H. - Straight Body - Early Style
24 25G416
- 25G416 - BOLT
- 1" (25.4mm) long - Was 6664067
25 6664565
- 6664565 - SCREW
- 7/8" long
26 6664566
- 6664566 - SCREW
- 3/4" long
27 7031685
- 7031685 - NUT
- ACORN
- Was 6664103
28 6669142
- 6669142 - HARNESS
- Wiper - Single Speed - Was NLA
29 6669141
- 6669141 - HARNESS
- Cab - Was 6664162
30 6803154
- 6803154 - LINKAGE
- Window Pivot - Was 6664148
31 6664074
- 6664074 - SPRING
- GAS
- Gas Spring -when 2 Gas Springs are used
32 6667348
- 6667348 - CYLINDER
- Gas Spring - with Single Gas spring - R.H. side only
33 6649244
- 6649244 - BALL STUD
- Cylinder - Was 6664072
34 6649245
- 6649245 - CLIP
- Ball joint retainer - W/Ref. 31 - Was 6664073
35 6664560
- 6664560 - BLOCK
- Linkage Mount
36 6664059
- 6664059 - BOLT
37 6648364
- 6648364 - NUT
- LOCK
38 6664088
- 6664088 - SEAL
- bulk - sold per foot
39 30H18
- 30H18 - CLAMP
- Wire Harness
40 6628879
- 6628879 - GUIDE PIN
- RH - Bent Body - Later Style - Was 6667190
41 6628880
- 6628880 - GUIDE PIN
- LH - Bent Body - Later Style - Was 6667191
