Bobcat
/
325.0
/

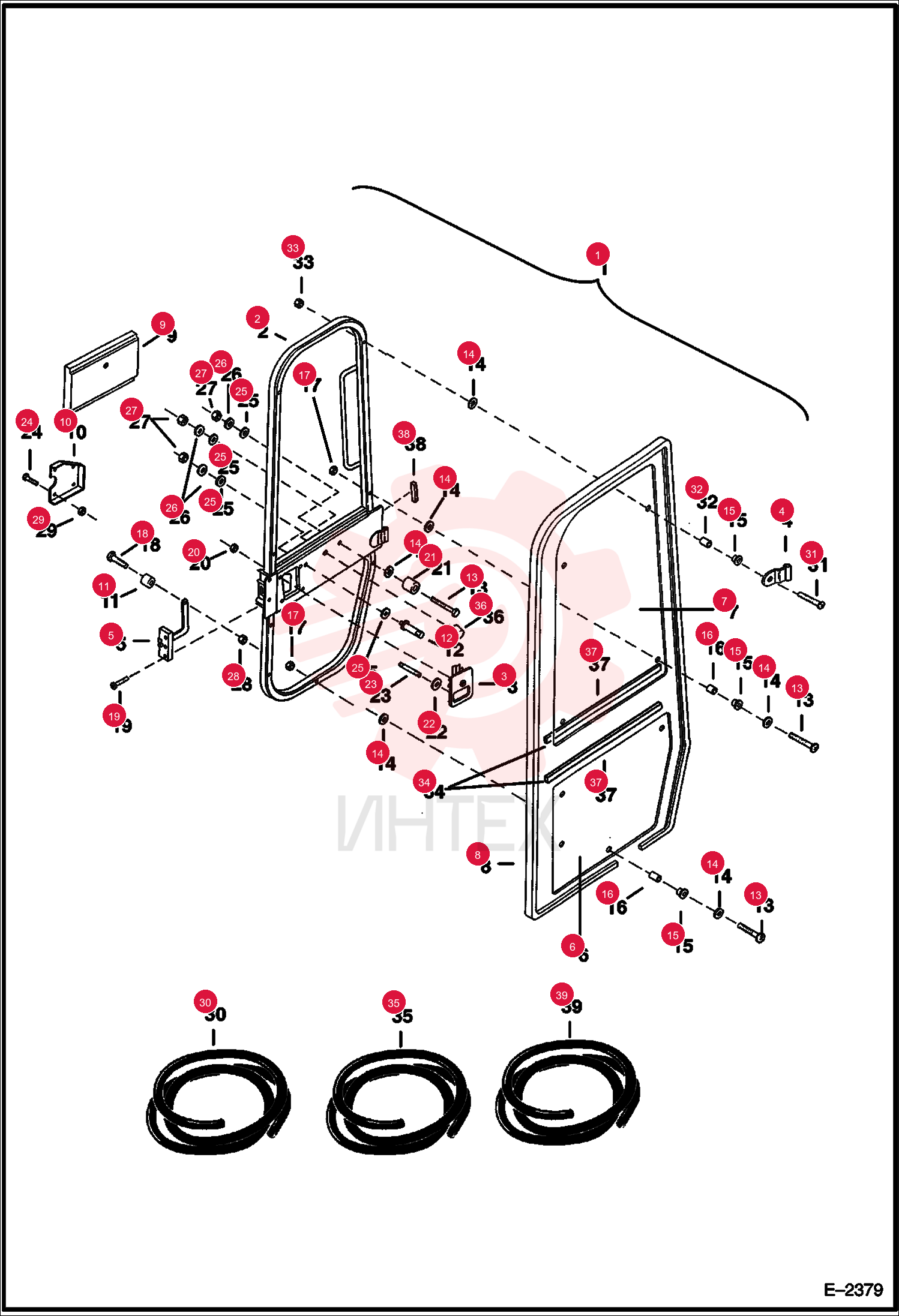

LATCH 6661631 (4)

LATCH 6661631 (4)

LATCH 6661631 (4)

1 6661631

  • 6661631 - LATCH
  • Outside

2 6587458

  • 6587458 - KEY CAP FUEL 2

3 6628872

  • 6628872 - HINGE
  • Top - Was 6664139

4 6664572

  • 6664572 - LATCH
  • Inside - with handle

5 6664573

  • 6664573 - GLASS
  • Bottom

6 6664574

  • 6664574 - GLASS
  • Top

7 6667841

  • 6667841 - INSULATION
  • Was 6664575

8 6664576

  • 6664576 - COVER
  • Door Latch

9 6664092

  • 6664092 - KNOB
  • Door Latch

10 6800844

  • 6800844 - RETAINER
  • - Door Hold Open

11 6664066

  • 6664066 - BOLT
  • 2" (51mm) Long

12 6664090

  • 6664090 - WASHER
  • 1'' (25mm) OD

13 6800788

  • 6800788 - GROMMET
  • Was 6664087

14 6664086

  • 6664086 - BUSHING
  • 3/8" (9
  • 5mm) long

15 6667837

  • 6667837 - NUT
  • Hex 1/4"

16 7031515

  • 7031515 - NUT
  • Acorn 1/4" - Was 6664056

17 85G1010

  • 85G1010 - SCREW

18 6648410

  • 6648410 - 6532045

19 85D4

  • 85D4 - NUT 5

20 6664569

  • 6664569 - BUMPER
  • Bumper

21 61D6

  • 61D6 - NUT HEX FINISHED GR5
  • Was 6648418

22 6667838

  • 6667838 - BOLT
  • Striker - Was 6654154

23 6657095

  • 6657095 - BOLT

24 6667839

  • 6667839 - BOLT
  • Self-Tapping

25 26GM6016

  • 26GM6016 - BOLT
  • Self-Tapping - Used when Ref. 29 is not present - Was 6589675

26 6648397

  • 6648397 - WASHER
  • FLAT

27 4E5

  • 4E5 - WASHER

28 61D5

  • 61D5 - NUT HEX FINISHED GR5

29 12D10

  • 12D10 - NUT
  • Was 6664050

30 6664570

  • 6664570 - NUT
  • Clip - Not Welded On - Later Models

31 6664088

  • 6664088 - SEAL
  • bulk - sold per foot

32 6667842

  • 6667842 - BOLT
  • 2-1/4" (957mm) long

33 6667840

  • 6667840 - BUSHING
  • 3/8" (9
  • 5mm) long

34 6667843

  • 6667843 - NUT
  • 5/16"

35 6654162

  • 6654162 - SEAL
  • bulk - sold per foot

36 6733616

  • 6733616 - BUMPER
  • - Use W/Retainer 6800844 - Was 6649040

37 7030243

  • 7030243 - SEAL
  • FOAM
  • 1206 mm (47.5") long - Order as needed - Was 6584202
