331.0
/

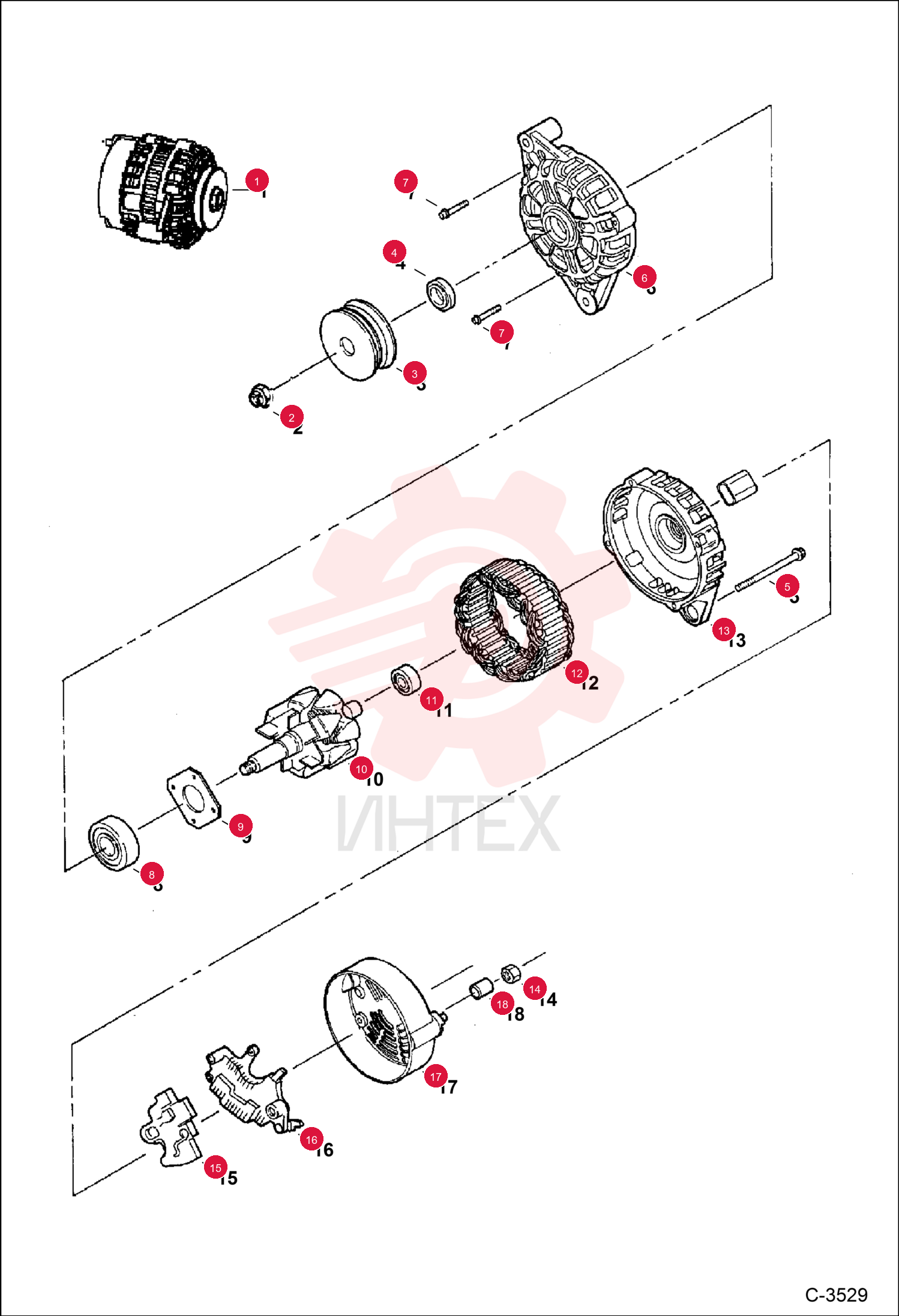

ALTERNATOR, 90 AMP

ALTERNATOR, 90 AMP

ALTERNATOR, 90 AMP

1 6678205

  • 6678205 - ALTERNATOR
  • 90 AMP
  • Use existing pulley on machine and discard pulley that comes with new alternator - 90 amp - Ref. 2-18 - Was 6675292

2 6678205REM

  • 6678205REM - ALTERNATOR
  • 90 AMP
  • 90 amp - Ref. 2-18

3 6678205

  • 6678205 - ALTERNATOR
  • 90 AMP
  • Ref. 2-18 - Was 6678205EF

4 6677497

  • 6677497 - NUT
  • Was 6677497

5 6677495

  • 6677495 - SPACER
  • front

6 6684397

  • 6684397 - BOLT
  • Was 6677494

7 6677491

  • 6677491 - BRACKETFRT
  • rear

8 6677817

  • 6677817 - SCREW

9 6677818

  • 6677818 - BEARING

10 6677819

  • 6677819 - RETAINER

11 6677492

  • 6677492 - ROTOR ASSEMBLY

12 6677820

  • 6677820 - BEARING

13 6677493

  • 6677493 - STATOR

14 6677490

  • 6677490 - BRACKETREAR

15 6677486

  • 6677486 - NUT

16 6677489

  • 6677489 - REGULATOR ASSY
  • Was NLA

17 6677488

  • 6677488 - RECTIFIRE ASSY

18 6677487

  • 6677487 - COVER

19 6677485

  • 6677485 - SPACER
  • rear
