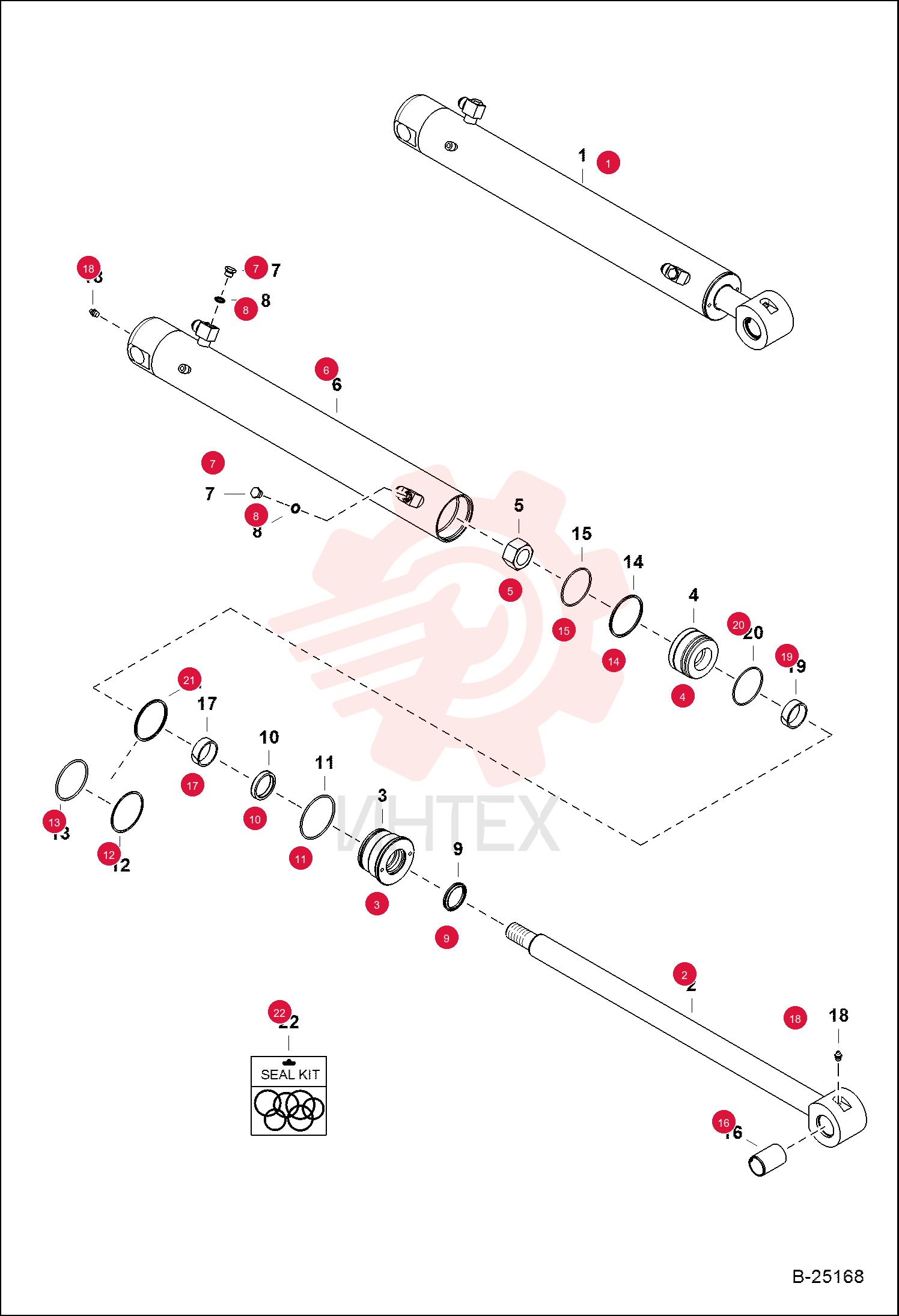

CYLINDER HYDRAULIC ASSEMBLY
1 7166446
- 7166446 - CYLINDER HYDRAULIC ASSEMBLY
- Ref. 2-15 & 17-20 - Also Order Ref. 16 & (2) of 6652915 dust seal - Was 7156131
2 7100544
- 7100544 - ROD
- Also Order Ref. 16
- 18
- & (2) of 6652915 dust seal
3 7100546
- 7100546 - HEAD
4 7166448
- 7166448 - PISTON
- CYL
- 3.50" (89 mm) - not Use W/Ref. 19
5 6810539
- 6810539 - NUT
6 7166447
- 7166447 - TUBE
- ASSY
- Was 7100547
7 6816855
- 6816855 - PLUG
- W/Ref. 8
8 75K7
- 75K7 - O-RING
9 6690707
- 6690707 - WIPER
- ROD CYL
- Was 6665086
10 6667326
- 6667326 - SEAL
- rod
11 54K40224
- 54K40224 - O-RING
- Was 25K40224
12 73K332
- 73K332 - O-RING
- back-up
13 54K60212
- 54K60212 - O-RING
- Was 25K60212
14 6516229
- 6516229 - SEAL
- PISTON
- piston
15 54K30210
- 54K30210 - O-RING
- Was 25K30210
16 6803863
- 6803863 - BUSHING
- wear
17 7000774
- 7000774 - RING
- WEAR
- Was 6698176
18 10H25
- 10H25 - FTG GREASE STRAIGHT
19 7000776
- 7000776 - RING
- WEAR
- Was 6698178
20 7162062
- 7162062 - KIT
- SEAL
- Ref. 5 & 9-15 - Was 7156132
