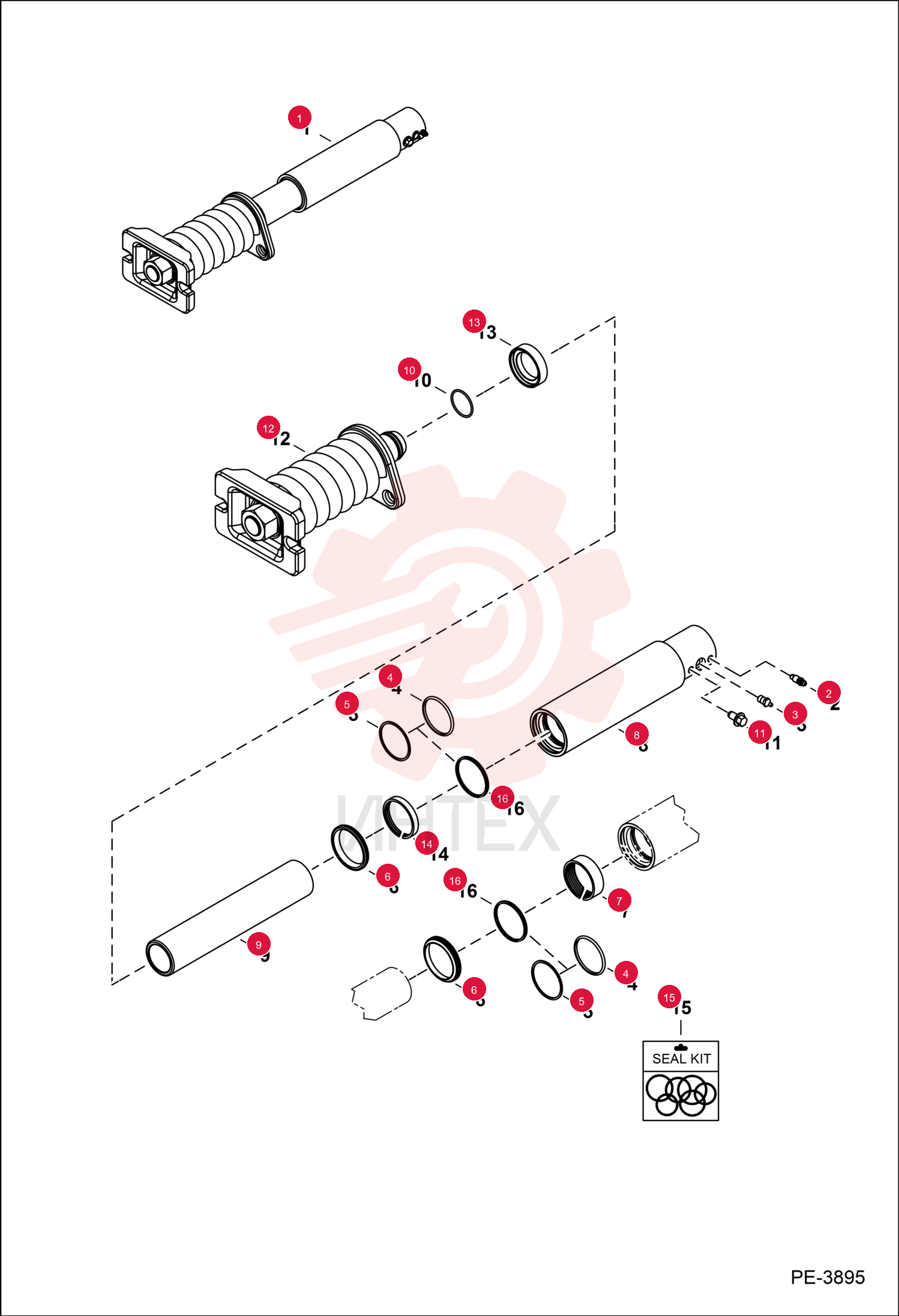

TENSIONER, TRACK ASSY 7181326 (3)
1 7181326
- 7181326 - TENSIONER
- TRACK ASSY
- Ref. 2-6
- 8-12 & 14 - Also Order Ref. 13 for steel tracks
2 6645812
- 6645812 - SCREW
- BLD
3 6655752
- 6655752 - FITTING
- GREASE
- 68
- 900 kpa (10
- 000 psi) - DO NOT SUBSTITUTE
4 6672338
- 6672338 - O-RING
5 6685154
- 6685154 - RING
- BACK-UP
6 6686968
- 6686968 - SEAL
- WIPER ROD
7 7000773
- 7000773 - RING
- WEAR
- .75" (19
- 05 mm) wide - Use W/Ref. 1(NLA/ 7145074 tensioner)
8 7180601
- 7180601 - TUBE
- TENSIONER
- Use W/Ref. 14
9 7164573
- 7164573 - SHAFT
- CHROME
10 25K30118
- 25K30118 - O RING 10
- Was 54K30118
11 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
12 7164410
- 7164410 - SPACER
- Use for steel tracks only - not included in Ref. 1
13 6688839
- 6688839 - WEAR RING
- 9
- 53 mm (0.38") wide - Use W/Ref. 1 (7181326 tensioner)
14 7163219
- 7163219 - KIT
- SEAL
- Ref. 6-7
- 14 & 16
