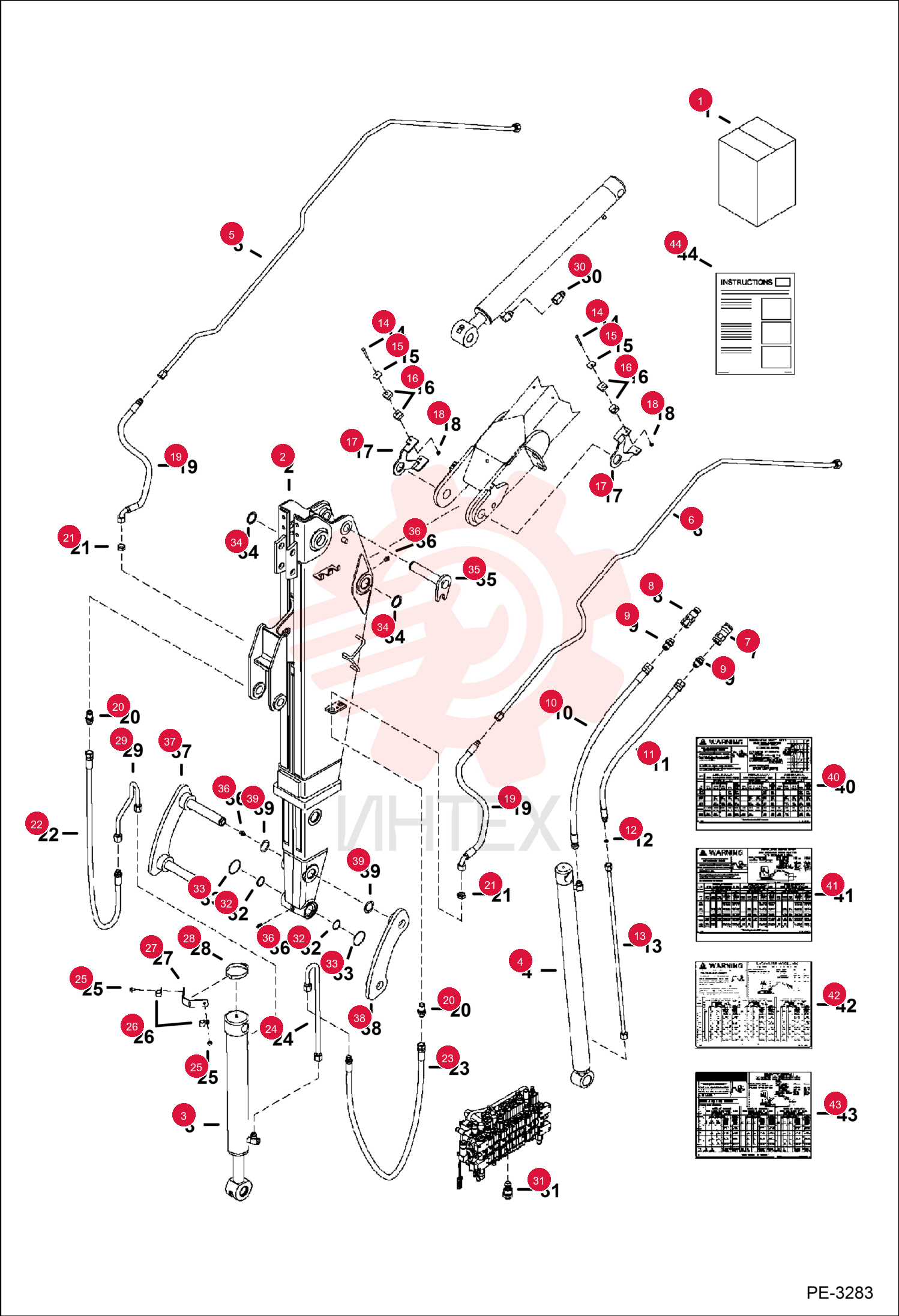

ARM 7110540 (11)
1 7110540
- 7110540 - ARM
2 6596041
- 6596041 - TUBELINE
- RH
3 6814435
- 6814435 - TUBELINE
- LH
4 7246790
- 7246790 - COUPLER FF FEM 1/2
- - straight - Was 6672960
5 7246790EF
- 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD
6 7246777
- 7246777 - COUPLER
- FF MALE
- - straight - Was 6674688
7 7246777EF
- 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE
8 15KB1012
- 15KB1012 - FTG HYD S CONNECTOR
9 6805913
- 6805913 - HOSE
10 6805914
- 6805914 - HOSE
11 6592824
- 6592824 - ORIFICE
12 6806056
- 6806056 - TUBELINE
13 1CM650
- 1CM650 - SCREW HEX CAP
14 6665102
- 6665102 - COVER
15 6666920
- 6666920 - CLAMP
- HALF
16 7126461
- 7126461 - BRACKET
17 53DM6
- 53DM6 - NUT
18 6805177
- 6805177 - HOSE
19 45K7
- 45K7 - CONNECTR
- bulkhead union
20 86F7
- 86F7 - NUT 5
21 6804798
- 6804798 - HOSE
- not in kit - use existing part
22 6805912
- 6805912 - HOSE
- not used in this application
23 6805912
- 6805912 - HOSE
24 7110565
- 7110565 - TUBELINE
25 26GM8013
- 26GM8013 - BOLT
26 30H37
- 30H37 - CLIP INSULATED
27 7110774
- 7110774 - CLAMP
28 42H56
- 42H56 - CLAMP
29 7110436
- 7110436 - TUBELINE
30 6672503
- 6672503 - VALVE
- RESTRICTOR
- check
31 6674259
- 6674259 - VALVE
- RELIEF
- port relief - not in kit
32 6680065
- 6680065 - ASSY
- VALVE
- port relief - not in kit
33 25K40112
- 25K40112 - O RING 10
34 6811260
- 6811260 - O-RING
35 6660075
- 6660075 - SEAL
36 6805845
- 6805845 - PIN
37 10H25
- 10H25 - FTG GREASE STRAIGHT
38 7173236
- 7173236 - LINK
- GUIDE W/A
- Was 7131038
39 7173237
- 7173237 - LINK
- GUIDE W/A
- Was 7131041
40 6652915
- 6652915 - SEAL
- OIL
41 6804687
- 6804687 - DECAL
- For model 331
42 6810010
- 6810010 - DECAL
- For model 331 & 334
43 7120586
- 7120586 - DECAL
- For model 331 & 334 - ESA No-text
44 7110139
- 7110139 - DECAL
- For model 331 & 334
45 7107912
- 7107912 - DECAL
- For model 430
46 7121343
- 7121343 - DECAL
- For model 430 - ESA No-text
47 6902941
- 6902941 - INSTRUCTIONS
