Bobcat
/
331.0
/

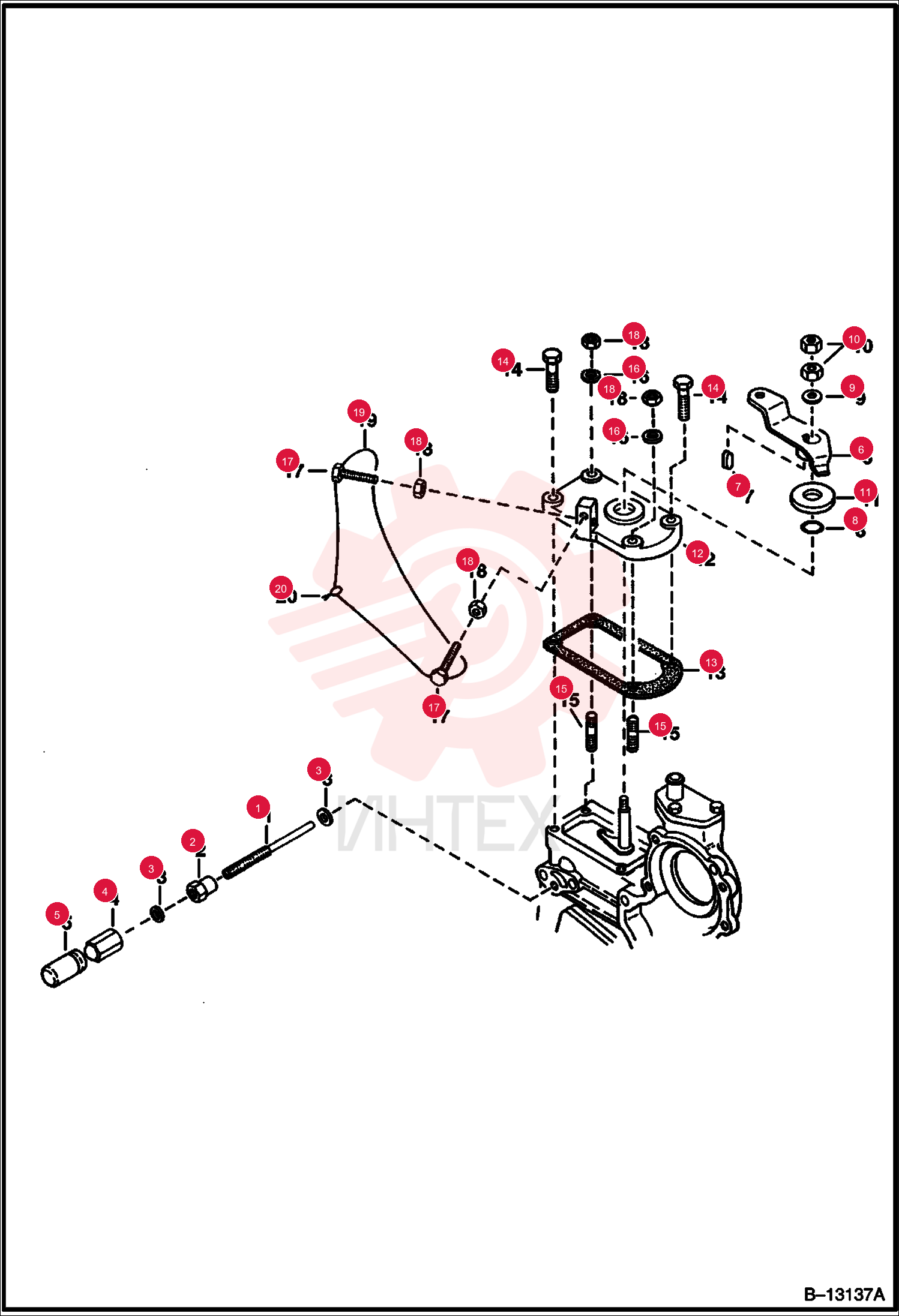

BOLT 6684836 (4)

BOLT 6684836 (4)

BOLT 6684836 (4)

1 6684836

  • 6684836 - BOLT
  • adjusting

2 3974971

  • 3974971 - NUT

3 3974972

  • 3974972 - GASKET

4 6655223

  • 6655223 - CAP
  • cap

5 6653905

  • 6653905 - CAP

6 6598176

  • 6598176 - LEVER
  • speed control

7 15JM48

  • 15JM48 - KEY
  • feather

8 3966512

  • 3966512 - O RING
  • Was 6686986

9 6667451

  • 6667451 - WASHER
  • plain

10 1DM8

  • 1DM8 - NUT

11 3974644

  • 3974644 - COLLAR
  • friction

12 6641231

  • 6641231 - PLATE
  • CONTROL SPEED
  • speed control

13 6666792

  • 6666792 - GASKET

14 4CM620

  • 4CM620 - BOLT
  • Was 1CM620

15 6652764

  • 6652764 - STUD

16 6667419

  • 6667419 - WASHER
  • spring

17 6655228

  • 6655228 - BOLT

18 1DM6

  • 1DM6 - NUT
