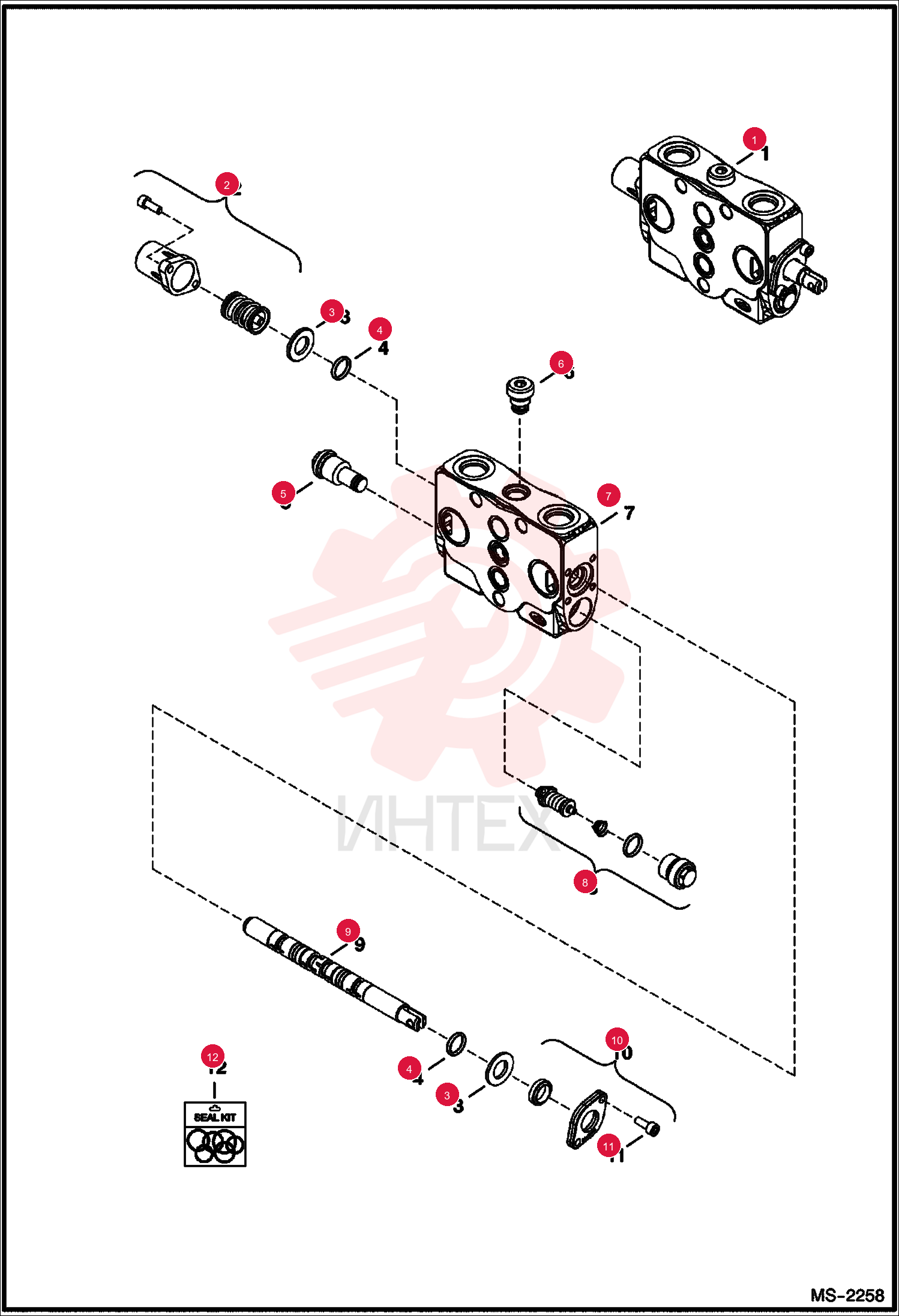

VALVE SECTION 6686091

VALVE SECTION 6686091

VALVE SECTION 6686091

1 6686091

  • 6686091 - VALVE SECTION
  • blade

2 6685297

  • 6685297 - KIT
  • COVER

3 6680095

  • 6680095 - WASHER

4 6680094

  • 6680094 - O-RING

5 6680060

  • 6680060 - ASSY
  • VALVE

6 6680092

  • 6680092 - VALVE
  • LOCK LOAD

7 6685304

  • 6685304 - PORT RELIEF
  • assy - port relief/anti cav

8 6680097

  • 6680097 - COVER
  • END

9 6680071

  • 6680071 - SCREW

10 6693925

  • 6693925 - SEAL KIT
