Bobcat
/
331.0
/

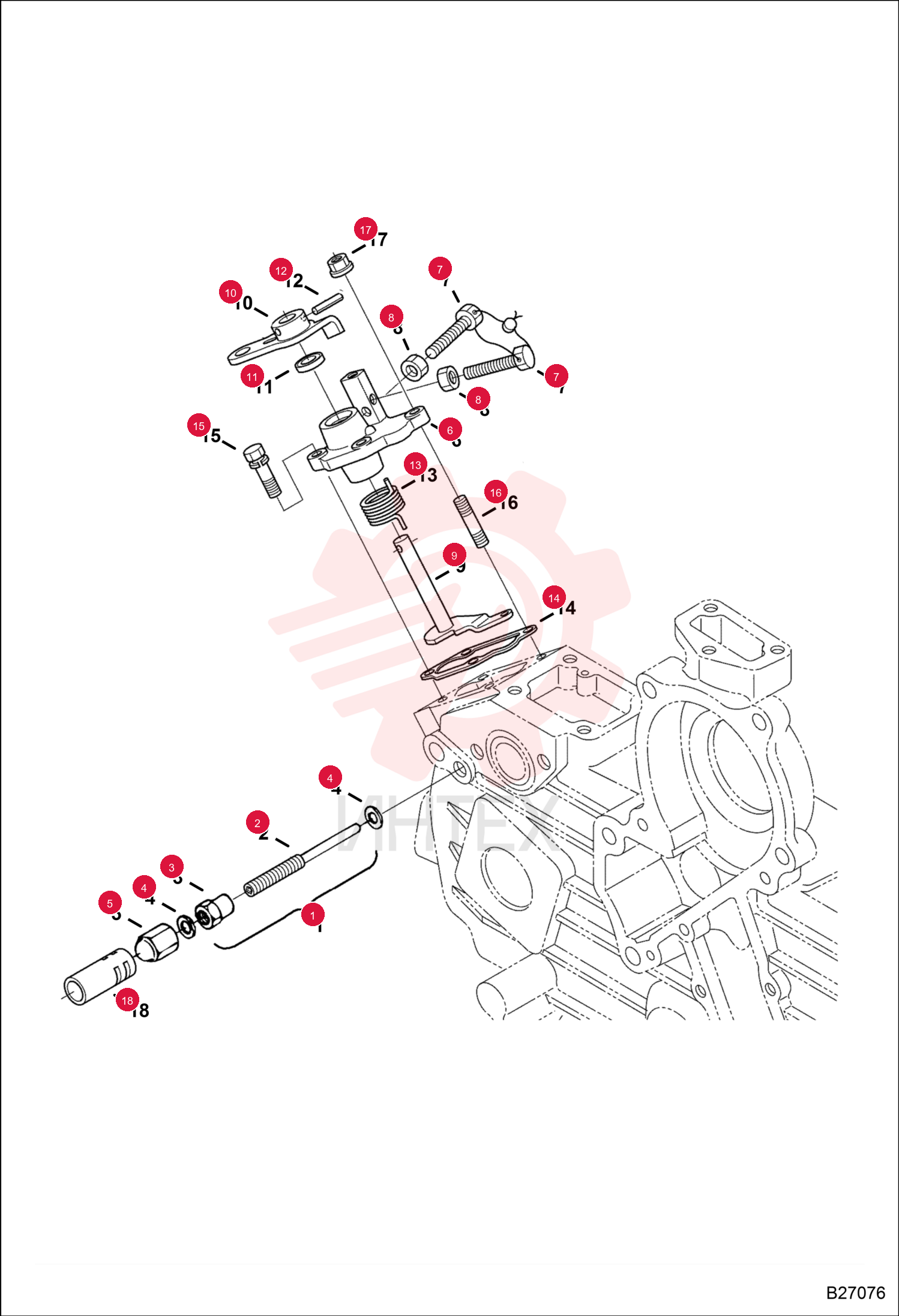

BOLT 6684836 (5)

BOLT 6684836 (5)

BOLT 6684836 (5)

1 6684836

  • 6684836 - BOLT
  • assy - Ref. 2 & 3

2 6686985

  • 6686985 - BOLT

3 3974971

  • 3974971 - NUT

4 3974972

  • 3974972 - GASKET

5 6655223

  • 6655223 - CAP

6 6685526

  • 6685526 - PLATE
  • CONTROL
  • W/Ref. 7-13

7 7010195

  • 7010195 - BOLT
  • ADJUSTMENT

8 1DM6

  • 1DM6 - NUT

9 6684838

  • 6684838 - GOVERNOR
  • governor

10 6684839

  • 6684839 - LEVER
  • speed control

11 6685476

  • 6685476 - SEAL
  • oil

12 6598098

  • 6598098 - PIN
  • spring

13 6684823

  • 6684823 - SPRING
  • return

14 6684841

  • 6684841 - GASKET
  • control plate

15 4CM620

  • 4CM620 - BOLT
  • Was 1CM620

16 6652764

  • 6652764 - STUD

17 6670533

  • 6670533 - NUT
