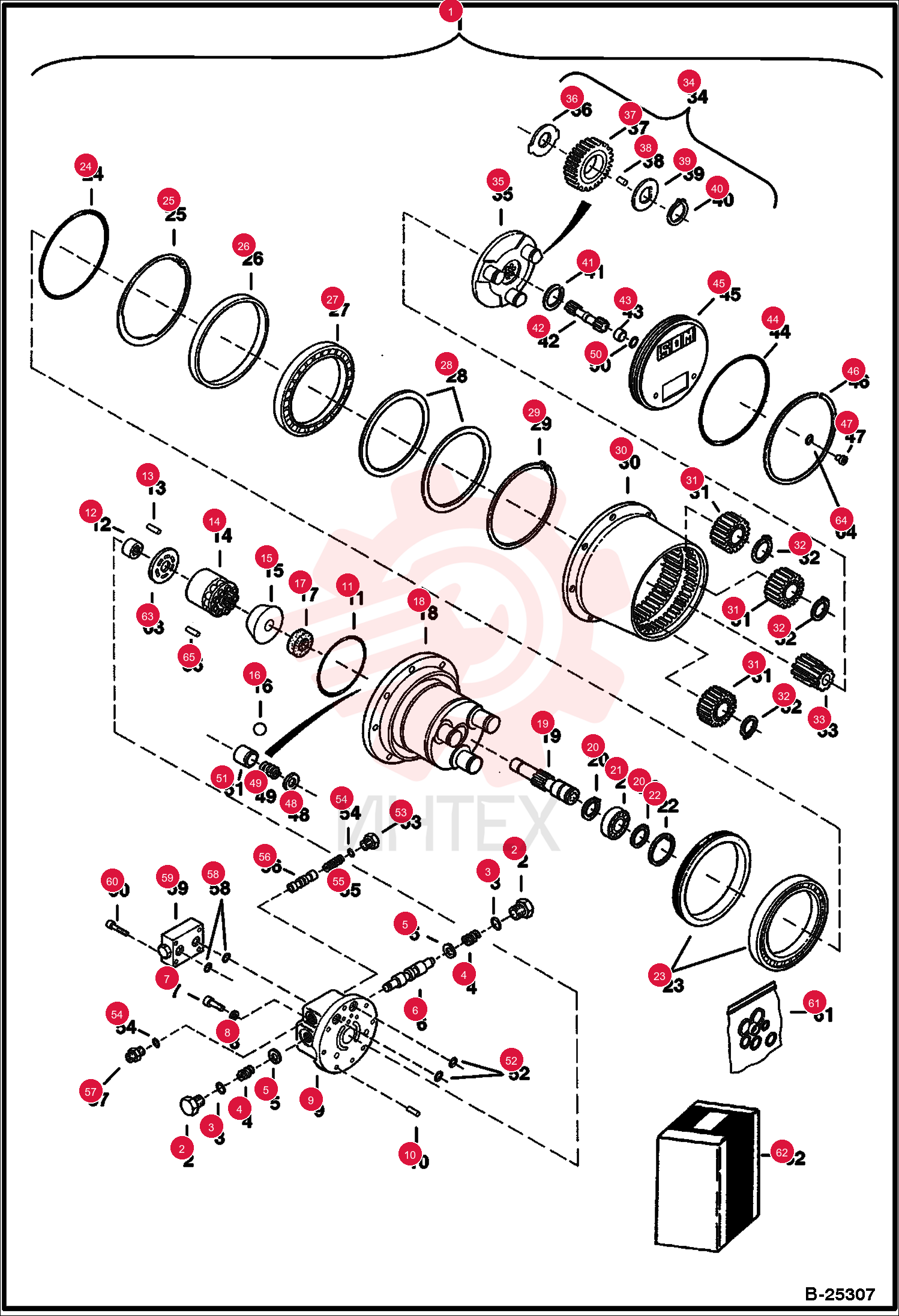

MOTOR, DRIVE HYD 6670667 (2)
1 6670667
- 6670667 - MOTOR
- DRIVE HYD
- W/Ref. 2-60
2 6671915
- 6671915 - PLUG
3 6671911
- 6671911 - O-RING
- Incl. W/Ref. 61
4 6671917
- 6671917 - WASHER
5 6671918
- 6671918 - SPOOL
6 6671919
- 6671919 - BOLT
7 6671920
- 6671920 - WASHER
8 6671901
- 6671901 - HOUSING
- MOTOR TRAVEL
9 6671913
- 6671913 - PIN
10 6671912
- 6671912 - O-RING
- Incl. W/Ref. 61
11 6671914
- 6671914 - BEARING
12 6667782
- 6667782 - DOWEL PIN
13 6671902
- 6671902 - PISTON
- MOTOR TRAVEL
- W/Ref. 63
14 6671909
- 6671909 - SWASHPLATE
- swash
15 6670130
- 6670130 - BALL
16 6671908
- 6671908 - SEAL
- OIL
- Incl. W/Ref. 61
17 6686332
- 6686332 - HOUSING
- Was 6669094
18 6671903
- 6671903 - SHAFT
19 6669130
- 6669130 - SNAP RING
20 6669124
- 6669124 - BEARING
21 6669131
- 6669131 - SNAP RING
22 6669101
- 6669101 - BEARING
- W/SEAL
- W/Seal
23 6669108
- 6669108 - O-RING
- Incl. W/Ref. 61
24 6669105
- 6669105 - SNAP RING
25 6669100
- 6669100 - SPACER
26 6669110
- 6669110 - BEARING
- MOTOR DRIVE
27 6669123
- 6669123 - SHIM
- 0
- 95 mm thick
28 6669122
- 6669122 - SHIM
- 0
- 9 mm thick
29 6669121
- 6669121 - SHIM
- 0
- 4 mm thick
30 6669120
- 6669120 - SHIM
- 0
- 3 mm thick
31 6669119
- 6669119 - SHIM
- 0
- 2 mm thick
32 6669104
- 6669104 - SNAP RING
33 6669096
- 6669096 - HOUSING
34 6669097
- 6669097 - GEAR
- MOTOR SPRING
- W/Bearing
35 6669102
- 6669102 - SNAP RING
36 6669098
- 6669098 - GEAR
37 6670127
- 6670127 - GEAR ASSEMBLY
- W/Ref. 33 & 35-40
38 6669103
- 6669103 - SNAP RING
39 6670126
- 6670126 - GEAR
- SHAFT
40 6667747
- 6667747 - SPACER
41 6669107
- 6669107 - O-RING
- Incl. W/Ref. 61
42 6669093
- 6669093 - COVER
43 6669106
- 6669106 - SNAP RING
44 6676161
- 6676161 - PLUG
- W/Ref. 64 O-Ring
45 6667771
- 6667771 - PLUG
- W/Ref. 64 (6675272 Washer)
46 6670133
- 6670133 - WASHER
- metal
47 6670132
- 6670132 - SPRING
48 6669597
- 6669597 - SHIM
- .0007" (0
- 2 mm) thick
49 6669598
- 6669598 - SHIM
- .012" (0
- 3 mm) thick
50 6669599
- 6669599 - SHIM
- .019" (0
- 5 mm) thick
51 6670131
- 6670131 - PISTON
52 6671910
- 6671910 - O-RING
- Incl. W/Ref. 61
53 6670139
- 6670139 - PLUG
54 6679861
- 6679861 - O-RING
- Incl. W/Ref. 61 - Was 6671922
55 6670704
- 6670704 - SPOOL
56 6670136
- 6670136 - ADAPTER
57 6671922
- 6671922 - O-RING
- Incl. W/Ref. 61
58 6670134
- 6670134 - VALVE
- RELIEF
- Relief - Available as an assembly only
59 6679326
- 6679326 - WASHER
- SEALING
- sealing - for plug
60 58K016
- 58K016 - O-RING 10
61 6670135
- 6670135 - BOLT
62 6670129
- 6670129 - SEAL KIT
- includes Ref. 3
- 11
- 17
- 24
- 44
- 52
- 54 & 58
63 6670128
- 6670128 - KIT
- SEAL
- Ref. 23 & 61 (6670129 kit)
64 7359258
- 7359258 - KIT SPRING
- Ref. 4 & 55
65 6671904
- 6671904 - VALVE
- PLATE
- valve plate only - included W/Ref. 14
66 6675272
- 6675272 - WASHER
67 6667776
- 6667776 - DOWEL PIN
- dowel
