Bobcat
/
331.0
/

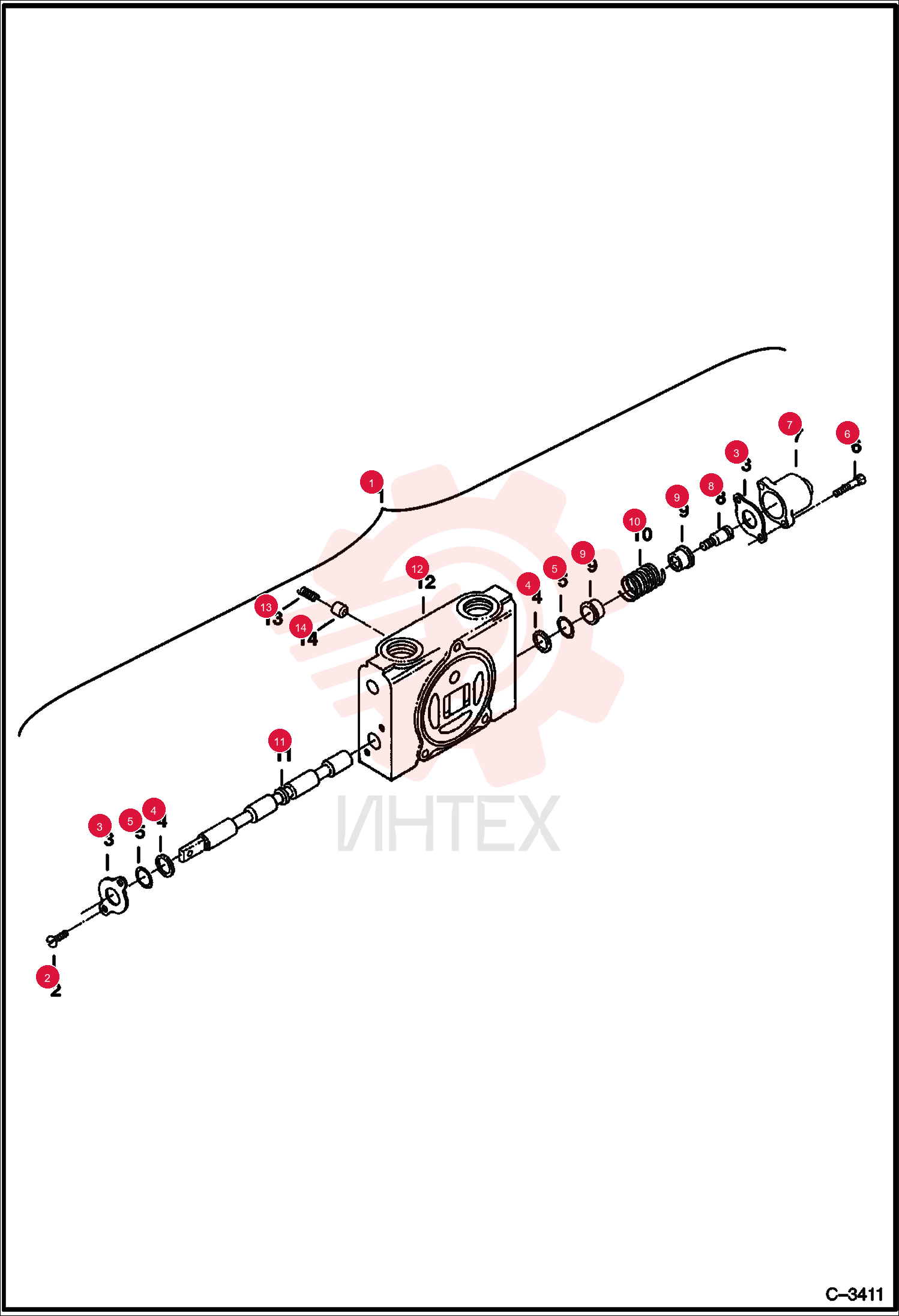

VALVE, SECTION 6668983

VALVE, SECTION 6668983

VALVE, SECTION 6668983

1 6668983

  • 6668983 - VALVE
  • SECTION
  • Section - Blade - W/Ref. 2-14

2 948016

  • 948016 - PLATE

3 6668972

  • 6668972 - SEAL
  • O-RING

4 948021

  • 948021 - SEAL
  • WIPER
  • wiper

5 73G412

  • 73G412 - SCREW

6 948192

  • 948192 - CAP

7 6665434

  • 6665434 - BOLT

8 948017

  • 948017 - SEAT
  • Spring

9 948018

  • 948018 - SPRING

10 6630966

  • 6630966 - SPRING

11 6630965

  • 6630965 - POPPET
