331.0
/

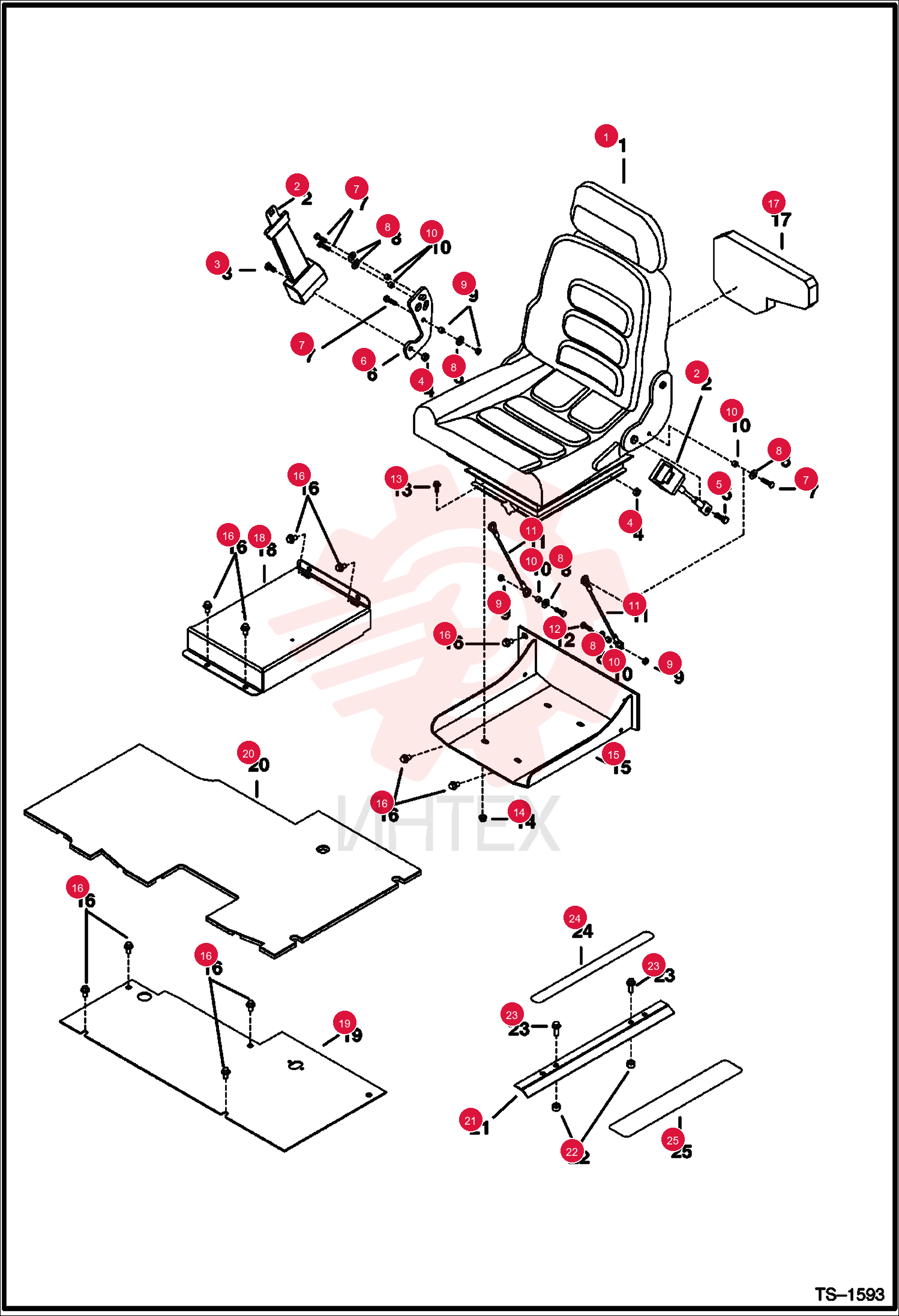

BELT, SEAT 6670865

BELT, SEAT 6670865

BELT, SEAT 6670865

1 6670865

  • 6670865 - BELT
  • SEAT

2 1CM1020

  • 1CM1020 - SCREW HEX CAP

3 53DM10

  • 53DM10 - NUT HX THDLK PREAPPL

4 1CM1030

  • 1CM1030 - BOLT

5 6803068

  • 6803068 - BRACKET

6 1CM835

  • 1CM835 - BOLT
  • Was 1CM00830B

7 25E16

  • 25E16 - WASHER FLAT PLAIN

8 53DM8

  • 53DM8 - NUT HX THDLK PREAPPL

9 6802539

  • 6802539 - SPACER

10 6589689

  • 6589689 - CABLE

11 4CM825

  • 4CM825 - BOLT HEX HEAD
  • Was 1CM825

12 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP
  • Seat to Seat Mount

13 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

14 6803361

  • 6803361 - MOUNT
  • Seat

15 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG
  • Was 26GM01020B

16 6803376

  • 6803376 - INSULATION

17 6801025

  • 6801025 - COVER

18 6805302

  • 6805302 - PLATE
  • Floor

19 6803365

  • 6803365 - FLOORMAT

20 6802930

  • 6802930 - PLATE
  • Floormat Retainer

21 6503451

  • 6503451 - SPACER

22 26GM10030

  • 26GM10030 - SCREW SELF TAPPING

23 6593245

  • 6593245 - TREAD
  • SAFETY
  • Installed on Ref. 21

24 6588953

  • 6588953 - TREAD
  • SAFETY
  • Installed on Upperstructure
