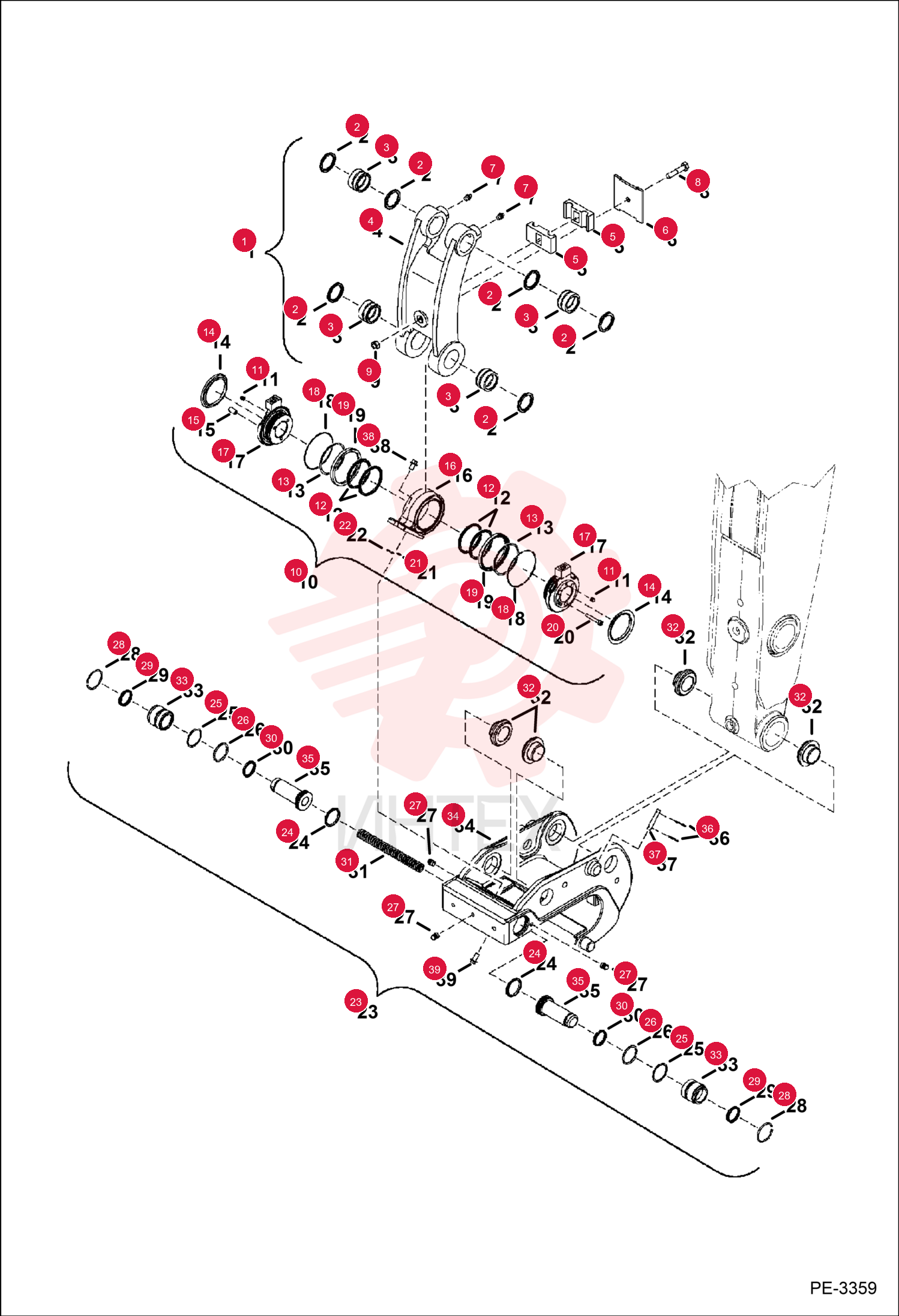

SEAL, OIL 6652915 (2)
1 6652915
- 6652915 - SEAL
- OIL
2 6803309
- 6803309 - BUSHING
- PRESS FIT
3 7115439
- 7115439 - LINK
4 7115813
- 7115813 - BLOCK RUBBER
5 7226711
- 7226711 - COVER
- HOSE
- Also Order Ref. 8 (59CM1060 screw) - Was 7115814
6 10H25
- 10H25 - FTG GREASE STRAIGHT
7 59CM1060
- 59CM1060 - SCREW
- Was 1CM1055
8 4DM10
- 4DM10 - NUT HEX
9 7115437
- 7115437 - SWIVEL ASSEMBLY
- Ref. 11-22
10 6686678
- 6686678 - PLUG
11 6689035
- 6689035 - SEAL
12 6689036
- 6689036 - RING WEAR
13 6689622
- 6689622 - SEAL DUST
14 6816599
- 6816599 - NUT
15 7115434
- 7115434 - BASE HYD
16 7115436
- 7115436 - SWIVEL HYD
- Also order Ref. 11
17 7135580
- 7135580 - O-RING
18 7135631
- 7135631 - SEAL DUST
19 3GM640
- 3GM640 - SCREW
20 58K10
- 58K10 - O RING 10
21 58K015
- 58K015 - O-RING 10
22 7117453
- 7117453 - X-CHG ASSY
- Ref. 24-37
23 6680402
- 6680402 - SEAL
24 6680998
- 6680998 - RING
25 6683233
- 6683233 - O-RING
26 6686679
- 6686679 - PLUG
27 6686682
- 6686682 - RING
28 6688634
- 6688634 - SEAL PIN
29 6690161
- 6690161 - SEAL PIN
30 6815592
- 6815592 - SPRING
31 7102891
- 7102891 - BUSHING
32 7114212
- 7114212 - HEAD
33 7115432
- 7115432 - X-CHANGE HYD
34 7126140
- 7126140 - PISTON
- PIN
- W/retainer pin hole
35 7130431
- 7130431 - CLIP
36 7132119
- 7132119 - PIN
37 29CM1020
- 29CM1020 - SCREW HEX 10MMX20MM
38 29CM1025
- 29CM1025 - SCREW FLGD HEX CAP
