331.0
/

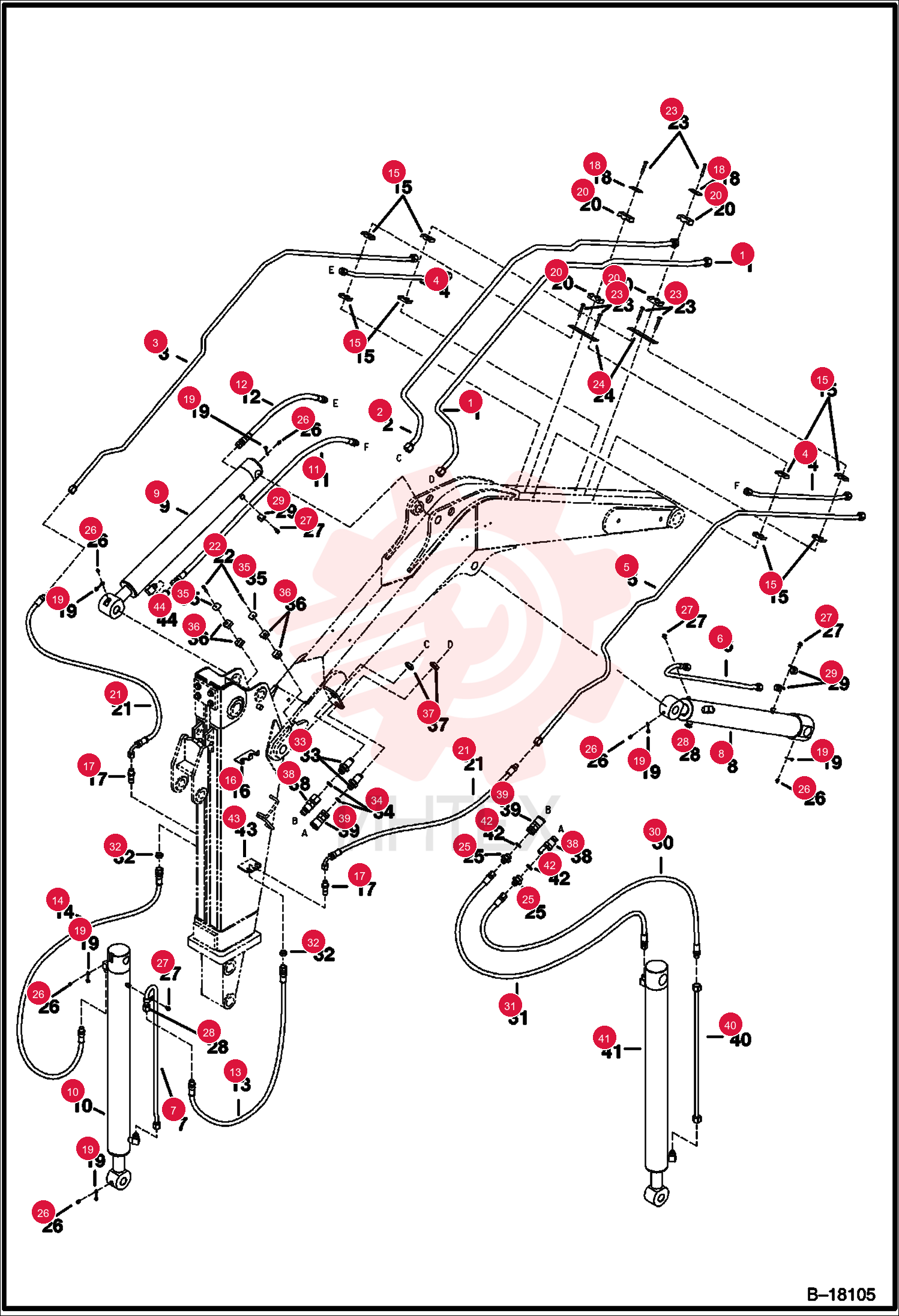

TUBELINE 6628642 (3)

TUBELINE 6628642 (3)

TUBELINE 6628642 (3)

1 6628642

  • 6628642 - TUBELINE
  • For Use W/flush face couplers - Use W/aux bracket 6628560 2.95" (74.9 mm) x 4.72" (119.9 mm)

2 7139955

  • 7139955 - TUBELINE
  • Use W/aux bracket 6597688 3.86" (98 mm) x 4.95" (125.8 mm)

3 7139956

  • 7139956 - TUBELINE
  • Use W/aux bracket 6597688 3.86" (98 mm) x 4.95" (125.8 mm)

4 6628643

  • 6628643 - TUBELINE
  • For Use W/flush face couplers - Use W/aux bracket 6628560 2.95" (74.9 mm) x 4.72" (119.9 mm)

5 6596041

  • 6596041 - TUBELINE

6 6596042

  • 6596042 - TUBELINE

7 6596044

  • 6596044 - TUBELINE

8 6596855

  • 6596855 - TUBELINE

9 6596856

  • 6596856 - TUBELINE

10 7105235

  • 7105235 - HOSE
  • 47.5 " long - Was 6628360

11 6809268

  • 6809268 - HOSE
  • Use W/Ref. 44

12 6628362

  • 6628362 - HOSE

13 6805912

  • 6805912 - HOSE

14 6804798

  • 6804798 - HOSE

15 6577697

  • 6577697 - CLAMP
  • Was 6701893

16 6805848

  • 6805848 - BRACKET
  • Weld-on

17 45K7

  • 45K7 - CONNECTR
  • bulkhead - Was 45KV00007B

18 97K8

  • 97K8 - O-RING

19 6652521

  • 6652521 - PLATE

20 6652943

  • 6652943 - COVER
  • grease fitting

21 6592506

  • 6592506 - CLAMP
  • Was 6659498

22 6805177

  • 6805177 - HOSE

23 1CM640

  • 1CM640 - SCREW HEX CAP

24 1CM840

  • 1CM840 - SCREW HEX CAP

25 6596116

  • 6596116 - PLATE

26 6715717

  • 6715717 - ADAPTER

27 10H25

  • 10H25 - FTG GREASE STRAIGHT

28 29CM812

  • 29CM812 - BOLT

29 30H37

  • 30H37 - CLIP INSULATED

30 30H50

  • 30H50 - CLAMP

31 6805914

  • 6805914 - HOSE

32 6805913

  • 6805913 - HOSE

33 86F7

  • 86F7 - NUT 5
  • For Use W/poppet couplers only

34 97K12

  • 97K12 - O-RING
  • flared end

35 6812823

  • 6812823 - ADAPTER
  • flat boss face

36 99K12

  • 99K12 - O-RING
  • tapered boss end

37 79K12

  • 79K12 - O RING 10
  • flat boss end

38 6665102

  • 6665102 - COVER

39 6666920

  • 6666920 - CLAMP
  • HALF

40 86F8

  • 86F8 - NUT 5

41 7246777EF

  • 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE

42 7246777

  • 7246777 - COUPLER
  • FF MALE
  • - straight - Was 6674688

43 7246790

  • 7246790 - COUPLER FF FEM 1/2
  • - straight - Was 6672960

44 7246790EF

  • 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD

45 6806056

  • 6806056 - TUBELINE

46 79K12

  • 79K12 - O RING 10

47 6803509

  • 6803509 - PLATE
  • weld on

48 6672503

  • 6672503 - VALVE
  • RESTRICTOR
  • check
