Главная
/
Бренды
/
Bobcat
/
331.0
/

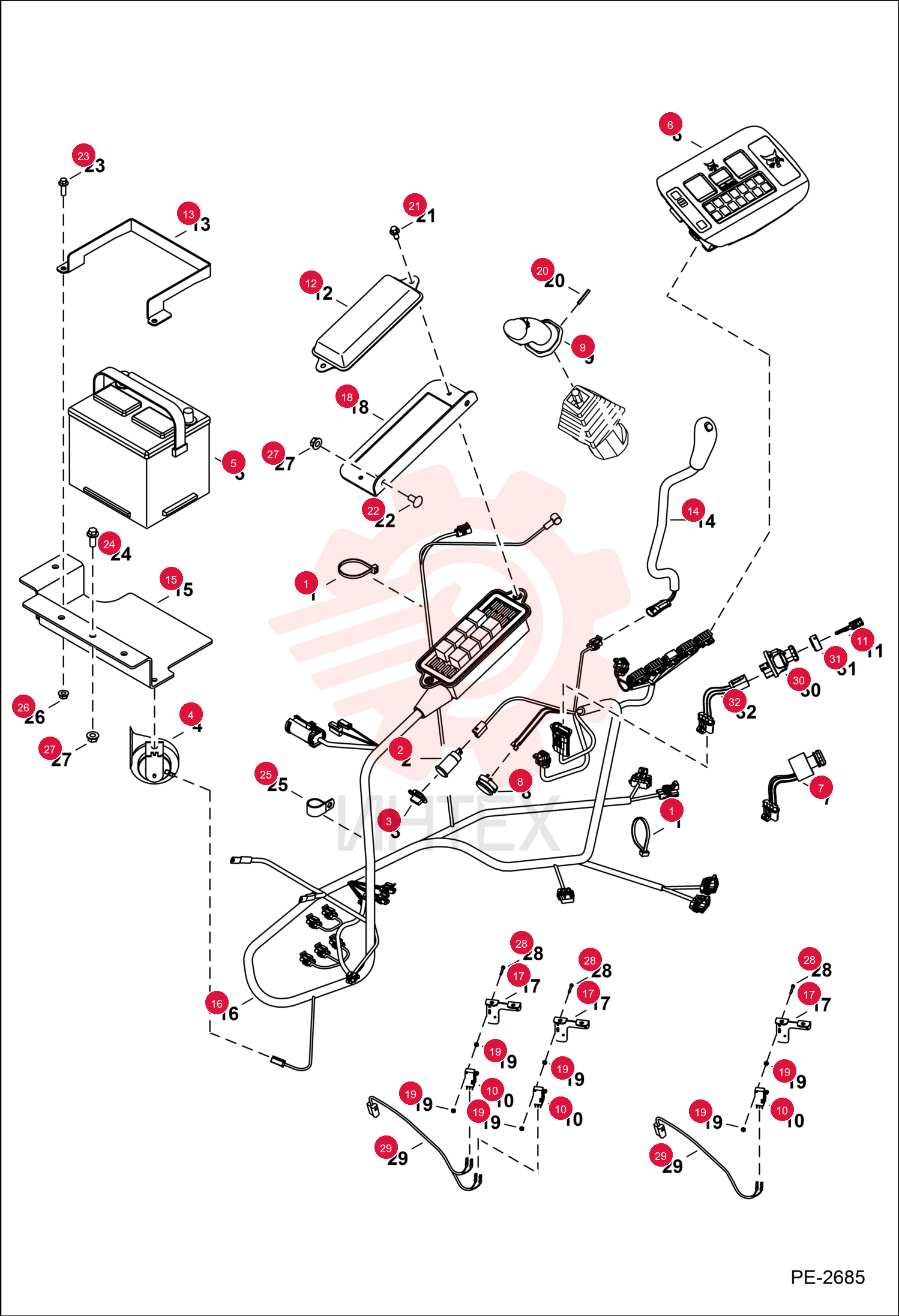

STRAP, TIE 6624289 (20)

STRAP, TIE 6624289 (20)

STRAP, TIE 6624289 (20)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6664223

  • 6664223 - OUTLET ELECTRICAL

3 6664224

  • 6664224 - CAP

4 6665105

  • 6665105 - HORN

5 7269858

  • 7269858 - BATTERY WET 540 CCA
  • - Was 6670251

6 6691430

  • 6691430 - CONTROLLER
  • - keyed - Was 6678683

7 6691431

  • 6691431 - CONTROLLER
  • KEYLESS PANEL
  • - keyless - Was 6678684

8 6675705

  • 6675705 - ALARM

9 6675929

  • 6675929 - OMRON SWITCH
  • roller

10 6693241

  • 6693241 - KEY (2)
  • ignition - single key W/O ring

11 6716621

  • 6716621 - COVER
  • FUSE
  • fuse box

12 6736071

  • 6736071 - FUSE COVER KIT
  • extreme applications - W/decal & insulation

13 6718774

  • 6718774 - DECAL
  • FUSE RELAY
  • fuse/relay

14 6731275

  • 6731275 - INSULATION

15 6806991

  • 6806991 - BRACKET
  • battery

16 6675721

  • 6675721 - SWITCH
  • momentary - two speed

17 6675831

  • 6675831 - HANDLE
  • front half

18 6675832

  • 6675832 - HANDLE
  • back half

19 7117038

  • 7117038 - TUBE

20 6808876

  • 6808876 - BRACKET

21 6809046

  • 6809046 - HARNESS
  • R.H. console

22 6654803

  • 6654803 - FUSE 5A

23 6654806

  • 6654806 - FUSE
  • 15A

24 6702444

  • 6702444 - FUSE 25A 5

25 6718034

  • 6718034 - FUSE
  • 30A

26 6718659

  • 6718659 - HOUSING FUSE RELAY

27 6673200

  • 6673200 - FUSE BLOCK

28 6679820

  • 6679820 - SWITCH
  • RELAY MAGNETIC
  • relay - Was 6674376

29 6810761

  • 6810761 - HARNESS
  • CONSOLE RH
  • R.H. console

30 6809096

  • 6809096 - BRACKET

31 6809096

  • 6809096 - BRACKET

32 6809110

  • 6809110 - BRACKET

33 12D4

  • 12D4 - NUT

34 12D4

  • 12D4 - NUT

35 14J1820

  • 14J1820 - PIN

36 26GM8020

  • 26GM8020 - SCREW SELF TAPPING

37 28CM1020

  • 28CM1020 - BOLT CARRIAGE 8.8

38 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

39 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

40 30H50

  • 30H50 - CLAMP

41 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

42 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

43 87G414

  • 87G414 - SCREW

44 87G414

  • 87G414 - SCREW

45 6810762

  • 6810762 - HARNESS
  • jumper

46 6811484

  • 6811484 - HARNESS
  • DUAL
  • dual switch

47 6813156

  • 6813156 - HARNESS
  • dual switch

48 6693245

  • 6693245 - SWITCH
  • IGN
  • W/O attached harness

49 7000328

  • 7000328 - ADAPTER SWITCH

50 6697965

  • 6697965 - HARNESS
