335.0
/

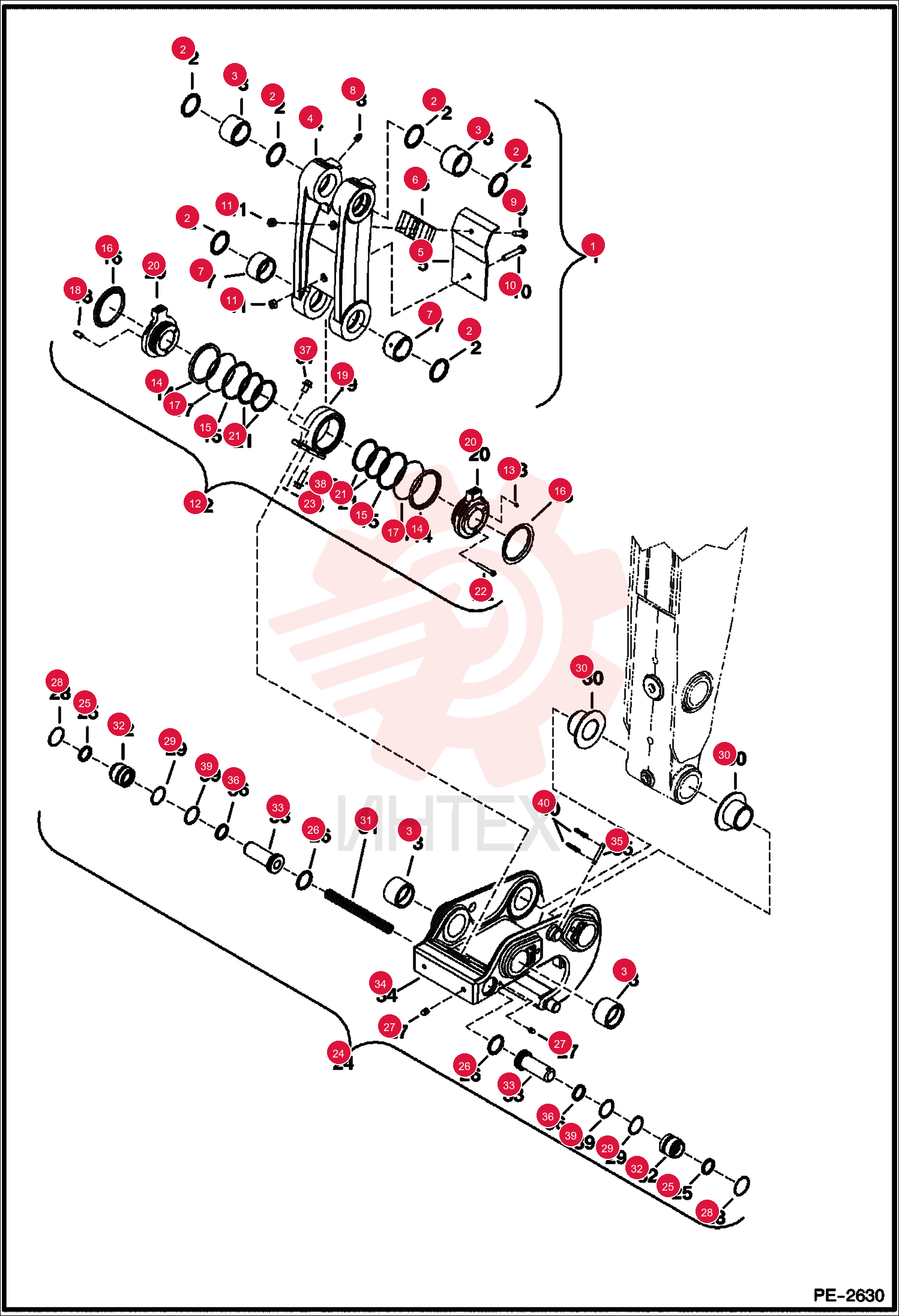

SEAL 6669287 (1)

SEAL 6669287 (1)

SEAL 6669287 (1)

1 6669287

  • 6669287 - SEAL

2 6802703

  • 6802703 - BUSHING
  • PRESS FIT

3 6813002

  • 6813002 - LINK

4 6818339

  • 6818339 - COVER

5 7103502

  • 7103502 - FOAM

6 7108736

  • 7108736 - BUSHING

7 10H25

  • 10H25 - FTG GREASE STRAIGHT

8 1CM1030

  • 1CM1030 - BOLT

9 1CM1055

  • 1CM1055 - BOLT

10 4DM10

  • 4DM10 - NUT HEX

11 7103384

  • 7103384 - SWIVEL
  • HYD ASSY
  • hydraulic assy - Ref. 13-23

12 6686678

  • 6686678 - PLUG

13 6689565

  • 6689565 - SEAL
  • Was 6686681

14 6686681

  • 6686681 - RING
  • Was 6688745

15 6688850

  • 6688850 - SEAL

16 7121281

  • 7121281 - O-RING
  • Was 6689565

17 6816599

  • 6816599 - NUT

18 7120820

  • 7120820 - BASE

19 7120821

  • 7120821 - SWIVEL

20 6688745

  • 6688745 - SEAL
  • Was 7121281

21 3GM645

  • 3GM645 - SCREW

22 58K10

  • 58K10 - O RING 10

23 7117087

  • 7117087 - X-CHANGE
  • hydraulic Assy. - Ref. 3
  • 25-36 & 40

24 6680402

  • 6680402 - SEAL

25 6680998

  • 6680998 - RING

26 6686679

  • 6686679 - PLUG

27 6686682

  • 6686682 - RING

28 6688634

  • 6688634 - SEAL PIN

29 6805579

  • 6805579 - BUSHING

30 6815592

  • 6815592 - SPRING

31 7114212

  • 7114212 - HEAD

32 7126140

  • 7126140 - PISTON
  • PIN
  • W/retainer pin hole

33 7132119

  • 7132119 - PIN

34 6683233

  • 6683233 - O-RING

35 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

36 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP

37 6690161

  • 6690161 - SEAL PIN

38 7130431

  • 7130431 - CLIP
