Bobcat
/
335.0
/

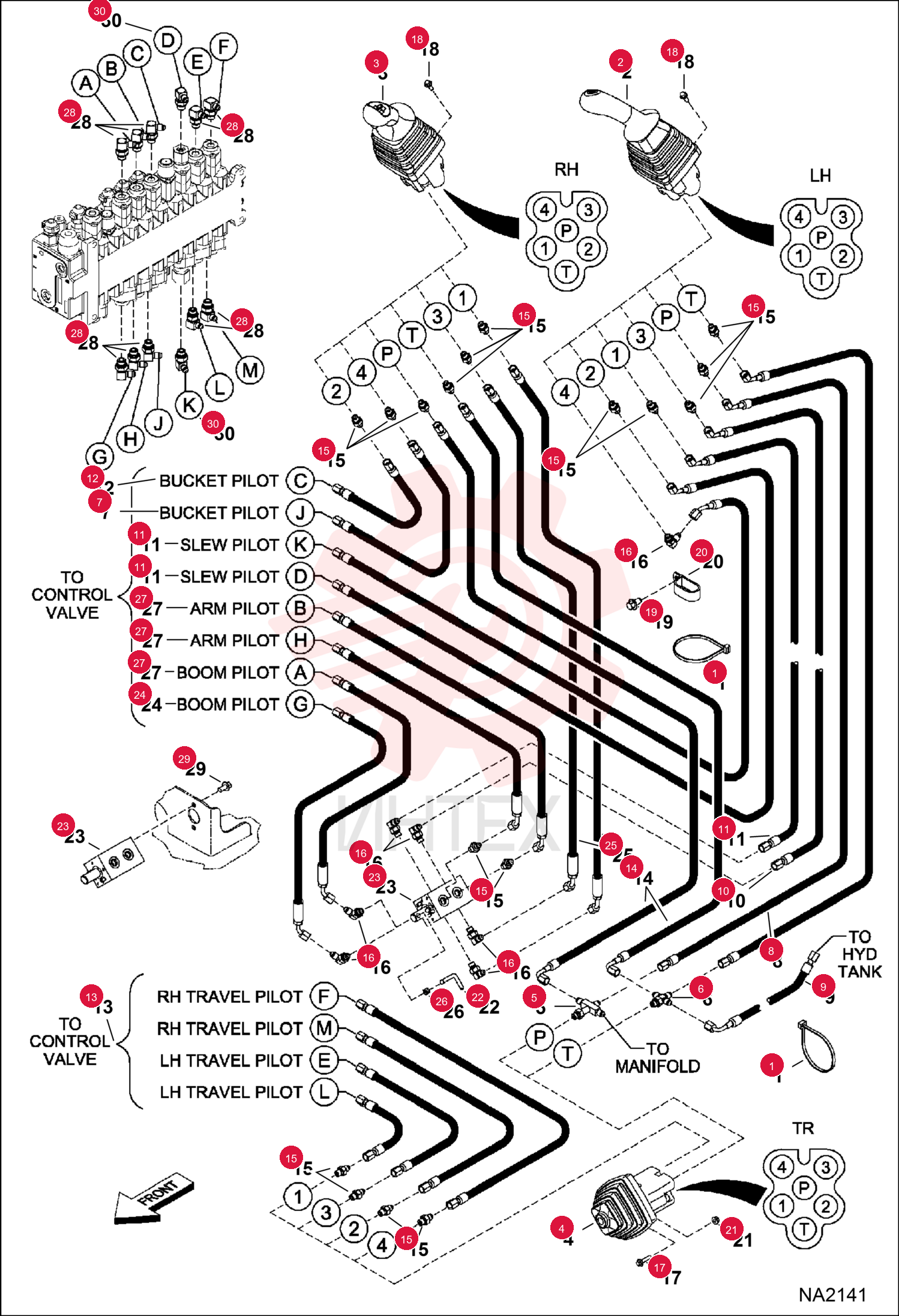

STRAP, TIE 6624289 (13)

STRAP, TIE 6624289 (13)

STRAP, TIE 6624289 (13)

1 6624289

  • 6624289 - STRAP
  • TIE

2 7220731

  • 7220731 - JOYSTICK
  • LH

3 7220732

  • 7220732 - JOYSTICK
  • RH
  • RH

4 6677896

  • 6677896 - LEVER

5 79K4

  • 79K4 - O RING 10

6 6812829

  • 6812829 - CROSS

7 79K4

  • 79K4 - O RING 10

8 6812830

  • 6812830 - CROSS

9 7106604

  • 7106604 - HOSE

10 7106606

  • 7106606 - HOSE

11 7106608

  • 7106608 - HOSE

12 7106612

  • 7106612 - HOSE

13 7106614

  • 7106614 - HOSE

14 7106615

  • 7106615 - HOSE

15 7107647

  • 7107647 - HOSE

16 7107649

  • 7107649 - HOSE

17 15KB0404

  • 15KB0404 - FTG HYD S CONNECTOR

18 79K4

  • 79K4 - O RING 10

19 17KB0404

  • 17KB0404 - FTG HYD ELBOW 90

20 79K4

  • 79K4 - O RING 10

21 17C416

  • 17C416 - BOLT

22 26GM6020

  • 26GM6020 - SCREW

23 26GM8013

  • 26GM8013 - BOLT

24 30H85

  • 30H85 - CLAMP

25 83D4

  • 83D4 - LKNUT HEX FLG GR8

26 6804251

  • 6804251 - HANDLE

27 6805768

  • 6805768 - VALVE
  • SELECTOR

28 7106619

  • 7106619 - HOSE

29 7106620

  • 7106620 - HOSE

30 53DM6

  • 53DM6 - NUT
  • Was 1DM6

31 7106621

  • 7106621 - HOSE

32 7124150

  • 7124150 - ELBOW

33 79K6

  • 79K6 - O RING 10

34 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

35 7124150

  • 7124150 - ELBOW

36 79K6

  • 79K6 - O RING 10
