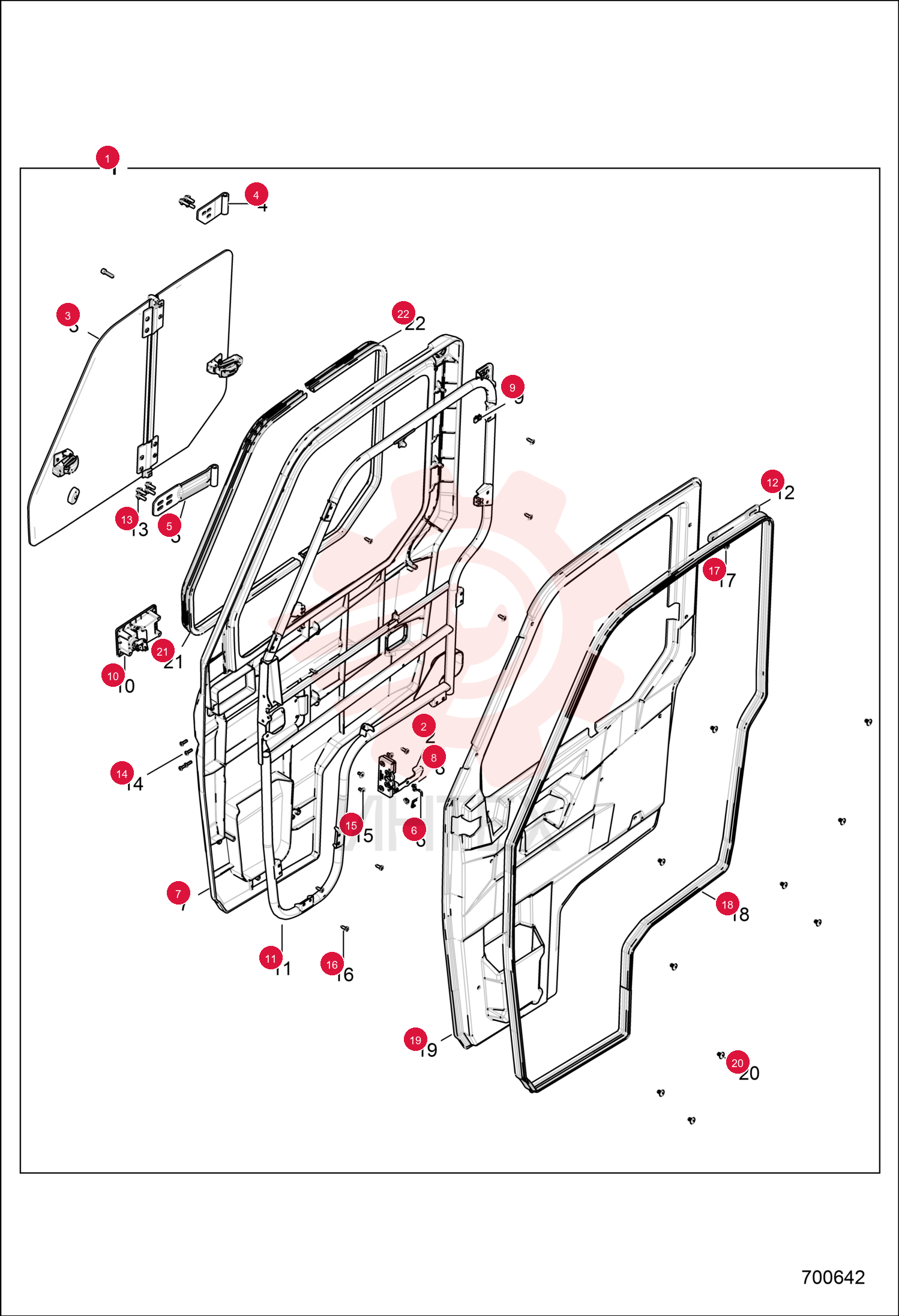

DOOR ASSEMBLY 7296557 (2)

DOOR ASSEMBLY 7296557 (2)

DOOR ASSEMBLY 7296557 (2)

1 7296557

  • 7296557 - DOOR ASSEMBLY

2 7027527

  • 7027527 - LATCH
  • INSIDE RH

3 7296558

  • 7296558 - ASSY
  • WINDOW
  • With latch kit

4 7335609

  • 7335609 - KIT LATCH

5 7265123

  • 7265123 - BRACKET
  • HINGE

6 7027797

  • 7027797 - BRACKET
  • HINGE DOOR LOWER
  • Was 7265124

7 7027648

  • 7027648 - ROD
  • LATCH RH

8 7027836

  • 7027836 - PANEL
  • DOOR OUTER RH

9 7027675

  • 7027675 - CLIP
  • ROD

10 7023820

  • 7023820 - NUT

11 7260671

  • 7260671 - HANDLE
  • RH

12 7296559

  • 7296559 - FRAME
  • DOOR

13 7248817

  • 7248817 - STRAP

14 7016640

  • 7016640 - SCREW

15 7027735

  • 7027735 - BOLT

16 7027737

  • 7027737 - SCREW

17 7016650

  • 7016650 - SCREW

18 7024692

  • 7024692 - BOLT

19 7027683

  • 7027683 - SEAL
  • DOOR RH

20 7302108

  • 7302108 - PANEL
  • CAB INNER

21 7027763

  • 7027763 - CLIP
  • PLASTIC

22 7296555

  • 7296555 - SEAL
  • WINDOW

23 7296556

  • 7296556 - SEAL
  • WINDOW
