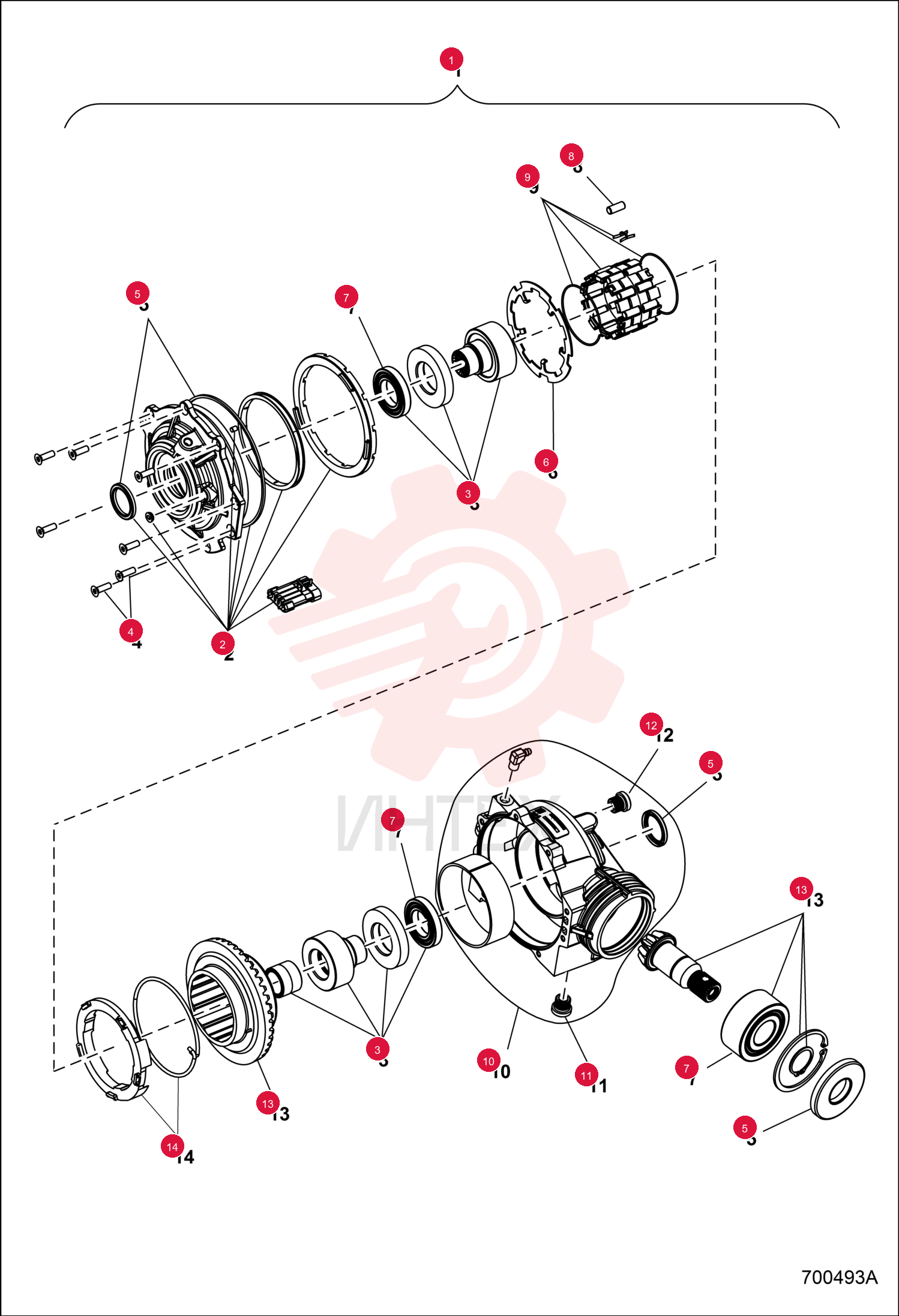

GEARCASE FRONT ASSY 7308612 (1)

GEARCASE FRONT ASSY 7308612 (1)

GEARCASE FRONT ASSY 7308612 (1)

1 7308612

  • 7308612 - GEARCASE FRONT ASSY
  • NLA - Was 7258420

2 7020284

  • 7020284 - COVER
  • OUTPUT

3 7020285

  • 7020285 - KIT
  • HUB ASSY

4 7020286

  • 7020286 - KIT
  • FASTENER

5 7020287

  • 7020287 - KIT
  • SEAL

6 7258421

  • 7258421 - ARMATURE

7 7020290

  • 7020290 - BEARING
  • BALL

8 7017586

  • 7017586 - KIT
  • ROLLER

9 7027588

  • 7027588 - RETAINER
  • ROLLER ALUM

10 7023387

  • 7023387 - CAGE
  • BEARING ROLLER
  • Zinc

11 7027609

  • 7027609 - KIT
  • GEARCASE ASSY

12 7017518

  • 7017518 - PLUG
  • DRAIN

13 7017522

  • 7017522 - PLUG
  • FILL

14 7279961

  • 7279961 - KIT
  • RING AND PINION

15 7258425

  • 7258425 - KIT
  • SPRING/RETAINER
