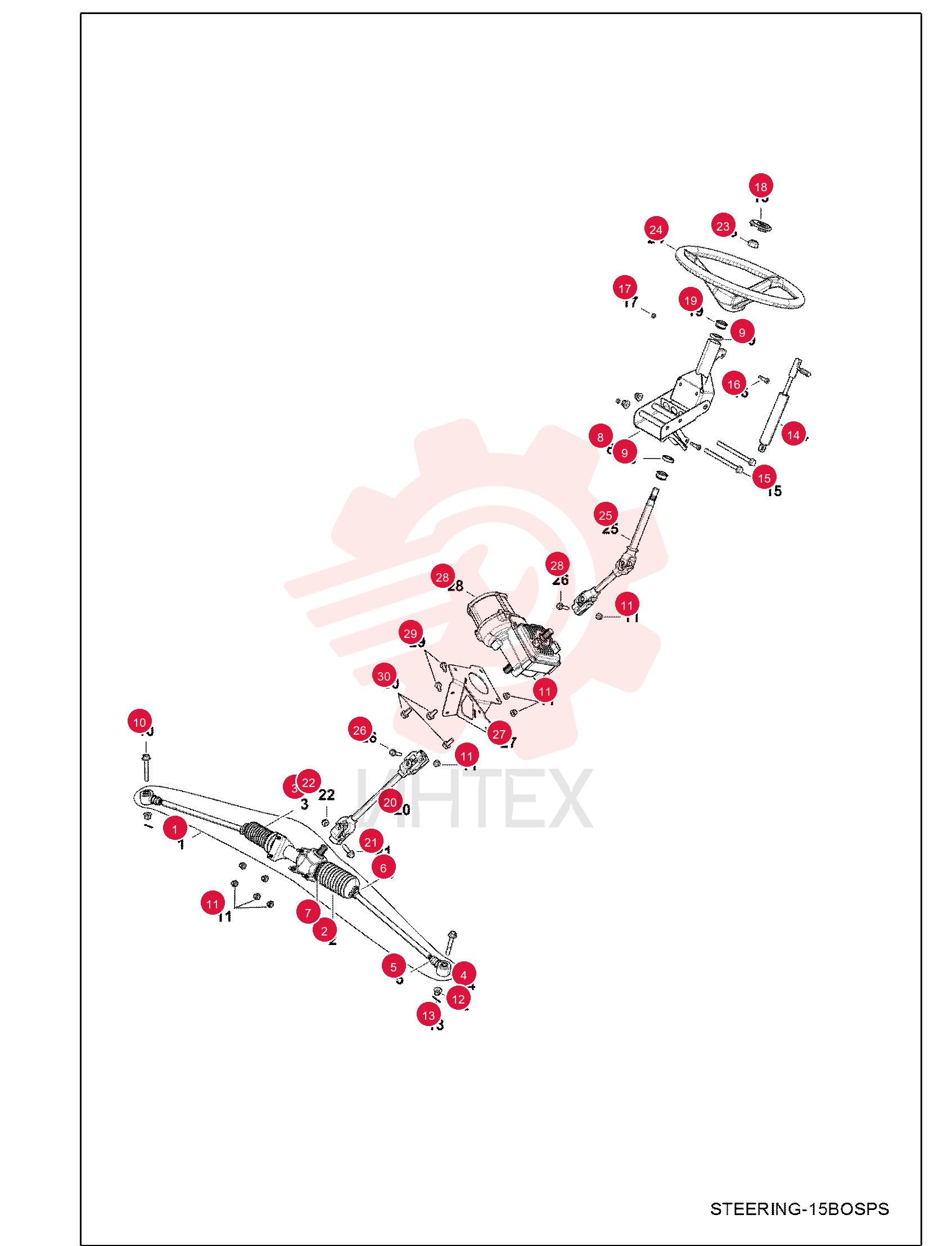

HOUSING, GEARBOX STEERING 7027514 (6)

HOUSING, GEARBOX STEERING 7027514 (6)

HOUSING, GEARBOX STEERING 7027514 (6)

1 7027514

  • 7027514 - HOUSING
  • GEARBOX STEERING
  • W/Ref. 2-7

2 7016184

  • 7016184 - BOOT
  • DRIVER SIDE
  • RACK

3 7016186

  • 7016186 - BOOT
  • PASSENGER
  • SIDE RACK

4 7016587

  • 7016587 - END
  • ROD TIE

5 7016504

  • 7016504 - NUT

6 7016300

  • 7016300 - CLAMP
  • BOOT
  • SMALL

7 7016299

  • 7016299 - CLAMP
  • BOOT
  • LARGE

8 7281861

  • 7281861 - ASSY
  • STRG TILT
  • W/Ref. 9

9 7023363

  • 7023363 - BEARING
  • BALL

10 7016167

  • 7016167 - BOLT

11 7016526

  • 7016526 - NUT

12 7016518

  • 7016518 - NUT

13 7016541

  • 7016541 - PIN
  • COTTER

14 7252942

  • 7252942 - SHOCK
  • DAMPER

15 7258364

  • 7258364 - BOLT

16 7258365

  • 7258365 - BOLT
  • SHOULDER

17 7016505

  • 7016505 - NUT

18 7025430

  • 7025430 - CAP
  • STEERING WHEEL

19 7027756

  • 7027756 - BUSHING
  • SHAFT

20 7257109

  • 7257109 - SHAFT
  • STEERING

21 7027736

  • 7027736 - SCREW

22 7016528

  • 7016528 - NUT

23 7027753

  • 7027753 - NUT

24 7016847

  • 7016847 - WHEEL
  • STRG

25 7027513

  • 7027513 - SHAFT
  • STEERING UPPER

26 7027738

  • 7027738 - SCREW

27 7281862

  • 7281862 - MOUNT

28 7310893

  • 7310893 - STEERING POWER ASSEMBLY

29 7016175

  • 7016175 - BOLT

30 7016165

  • 7016165 - BOLT
