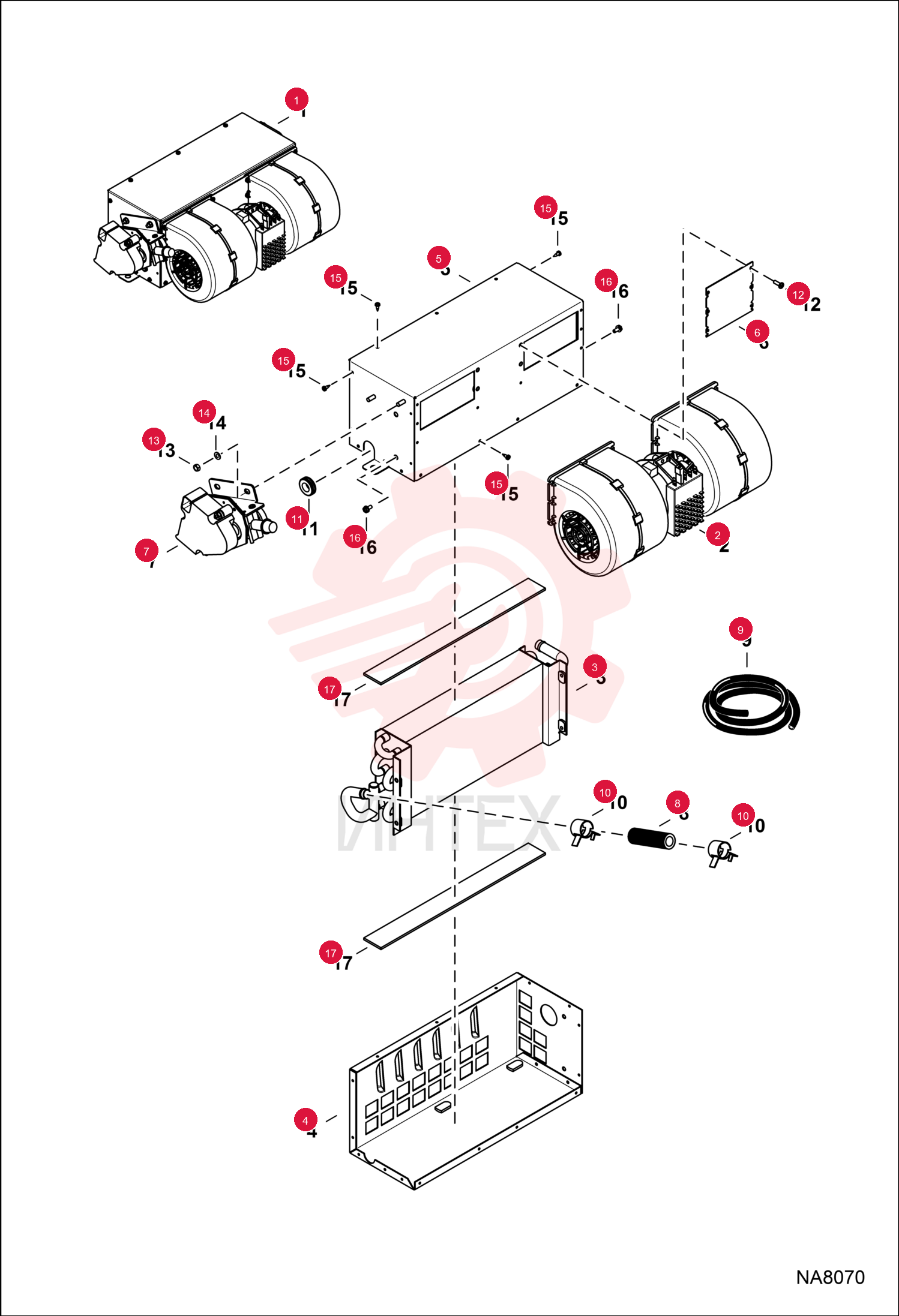

HEATER, UTV 7025314 (7)

HEATER, UTV 7025314 (7)

HEATER, UTV 7025314 (7)

1 7025314

  • 7025314 - HEATER
  • UTV
  • Ref. 2-17

2 7028466

  • 7028466 - MOTOR
  • HEATER CAB

3 7028467

  • 7028467 - COIL
  • HEATER

4 7028468

  • 7028468 - HOUSING

5 7028469

  • 7028469 - COVER

6 7028470

  • 7028470 - PLATE

7 7028471

  • 7028471 - VALVE
  • MOTORIZED ASSY

8 6565977

  • 6565977 - HOSE HEATER BULK
  • sold per foot

9 7003458

  • 7003458 - CLAMP
  • HOSE

10 7003459

  • 7003459 - GROMMET

11 7010401

  • 7010401 - SCREW

12 4DM5

  • 4DM5 - NUT HEXAGON M5

13 6684951

  • 6684951 - SCREW

14 15EM50

  • 15EM50 - WASHER

15 6677580

  • 6677580 - SCREW
