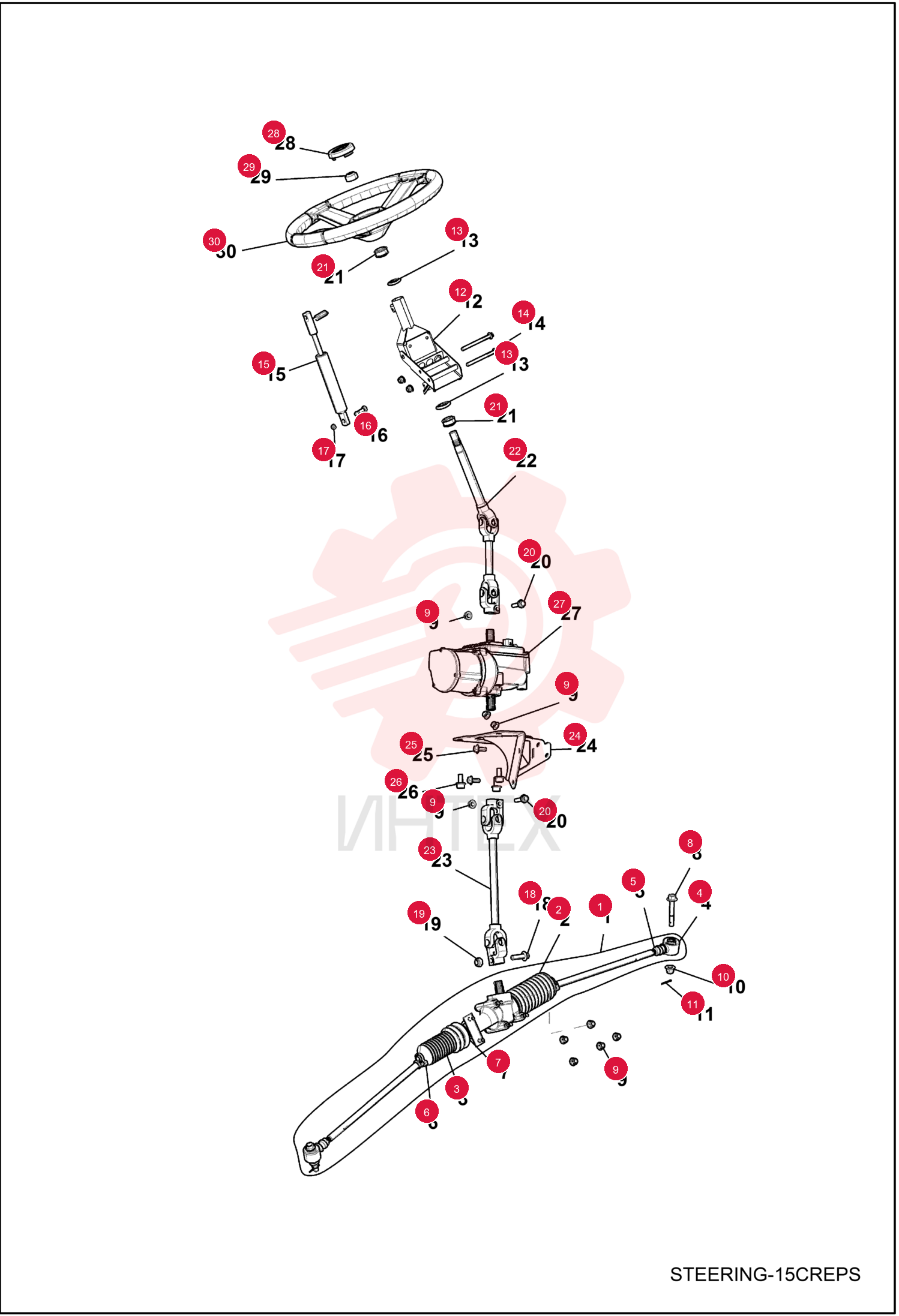

HOUSING, GEARBOX STEERING 7027514 (5)

HOUSING, GEARBOX STEERING 7027514 (5)

HOUSING, GEARBOX STEERING 7027514 (5)

1 7027514

  • 7027514 - HOUSING
  • GEARBOX STEERING
  • W/ Ref. 2-7

2 7016184

  • 7016184 - BOOT
  • DRIVER SIDE
  • RACK

3 7016186

  • 7016186 - BOOT
  • PASSENGER
  • SIDE RACK

4 7023238

  • 7023238 - END
  • ROD TIE

5 7016504

  • 7016504 - NUT

6 7016300

  • 7016300 - CLAMP
  • BOOT
  • SMALL

7 7016299

  • 7016299 - CLAMP
  • BOOT
  • LARGE

8 7016167

  • 7016167 - BOLT

9 7016526

  • 7016526 - NUT

10 7016518

  • 7016518 - NUT

11 7016541

  • 7016541 - PIN
  • COTTER

12 7281861

  • 7281861 - ASSY
  • STRG TILT
  • W/ Ref. 13

13 7023363

  • 7023363 - BEARING
  • BALL

14 7258364

  • 7258364 - BOLT

15 7252942

  • 7252942 - SHOCK
  • DAMPER

16 7258365

  • 7258365 - BOLT
  • SHOULDER

17 7016505

  • 7016505 - NUT

18 7027736

  • 7027736 - SCREW

19 7016528

  • 7016528 - NUT

20 7027738

  • 7027738 - SCREW

21 7027756

  • 7027756 - BUSHING
  • SHAFT

22 7027513

  • 7027513 - SHAFT
  • STEERING UPPER

23 7257109

  • 7257109 - SHAFT
  • STEERING

24 7281862

  • 7281862 - MOUNT

25 7016175

  • 7016175 - BOLT

26 7016165

  • 7016165 - BOLT

27 7308636

  • 7308636 - STEERING POWER ASSEMBLY
  • Was 7281863

28 7025430

  • 7025430 - CAP
  • STEERING WHEEL

29 7027753

  • 7027753 - NUT

30 7016847

  • 7016847 - WHEEL
  • STRG
