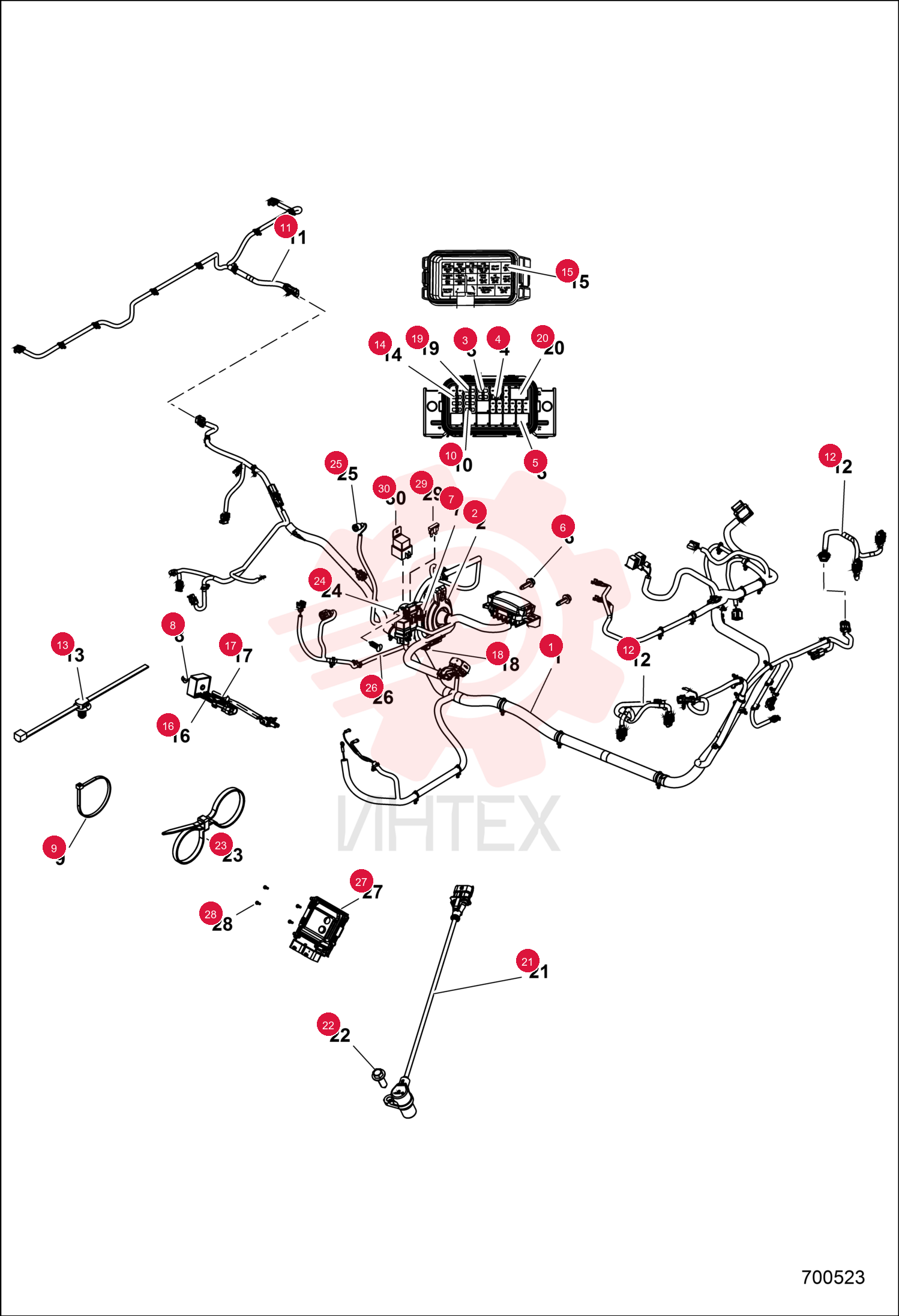

HARNESS, CHASSIS 7258990 (2)

HARNESS, CHASSIS 7258990 (2)

HARNESS, CHASSIS 7258990 (2)

1 7258990

  • 7258990 - HARNESS
  • CHASSIS
  • W/ Ref. 2-5
  • 7
  • 10
  • 13-15
  • 19
  • 20
  • 23 & 24

2 7017577

  • 7017577 - KIT
  • FUSIBLE LINK 2MM 6MM RING

3 7017576

  • 7017576 - KIT
  • FUSIBLE LINK 1.0MM

4 7017575

  • 7017575 - KIT
  • FUSIBLE LINK 0.8 MM

5 7027659

  • 7027659 - GROMMET
  • HARNESS

6 7258342

  • 7258342 - FUSE
  • 5A

7 7258343

  • 7258343 - BREAKER
  • CIRCUIT

8 7017645

  • 7017645 - RELAY
  • SPST SERIES 303 SEALED

9 7016645

  • 7016645 - SCREW

10 7017501

  • 7017501 - COVER
  • DIAGNOSTIC W/CLIP

11 7016525

  • 7016525 - NUT

12 7016245

  • 7016245 - TIE
  • CABLE

13 6707622

  • 6707622 - FUSE
  • 20A MINI 5

14 7258345

  • 7258345 - HARNESS
  • LIGHT REAR

15 7260168

  • 7260168 - HARNESS
  • HEAD LIGHT

16 7023400

  • 7023400 - CLIP
  • ROUTING

17 7017532

  • 7017532 - FUSE
  • MAIN 30 AMP

18 7258991

  • 7258991 - DECAL
  • FUSE RELAY

19 7016573

  • 7016573 - RELAY
  • SOLID STATE
  • 9A
  • LONG LD

20 7023435

  • 7023435 - BOLT
  • FLANGE

21 7027626

  • 7027626 - DIODE
  • TVS 30V

22 7258454

  • 7258454 - FUSE
  • 15A MINI
  • Was 7258458 [D]

23 7017644

  • 7017644 - RELAY
  • SPDT SERIES 301 SEALED
  • Was 7258452 [D]

24 7025326

  • 7025326 - SENSOR
  • MAGNETIC

25 7257189

  • 7257189 - BOLT

26 7259226

  • 7259226 - TIE
  • CABLE

27 7261693

  • 7261693 - CLIP

28 7261692

  • 7261692 - BOOT

29 7027763

  • 7027763 - CLIP
  • PLASTIC

30 7027625

  • 7027625 - ECU

31 7025490

  • 7025490 - BOLT

32 7299883

  • 7299883 - FUSE

33 7299886

  • 7299886 - RELAY
  • PREHEAT GLOWPLUG
