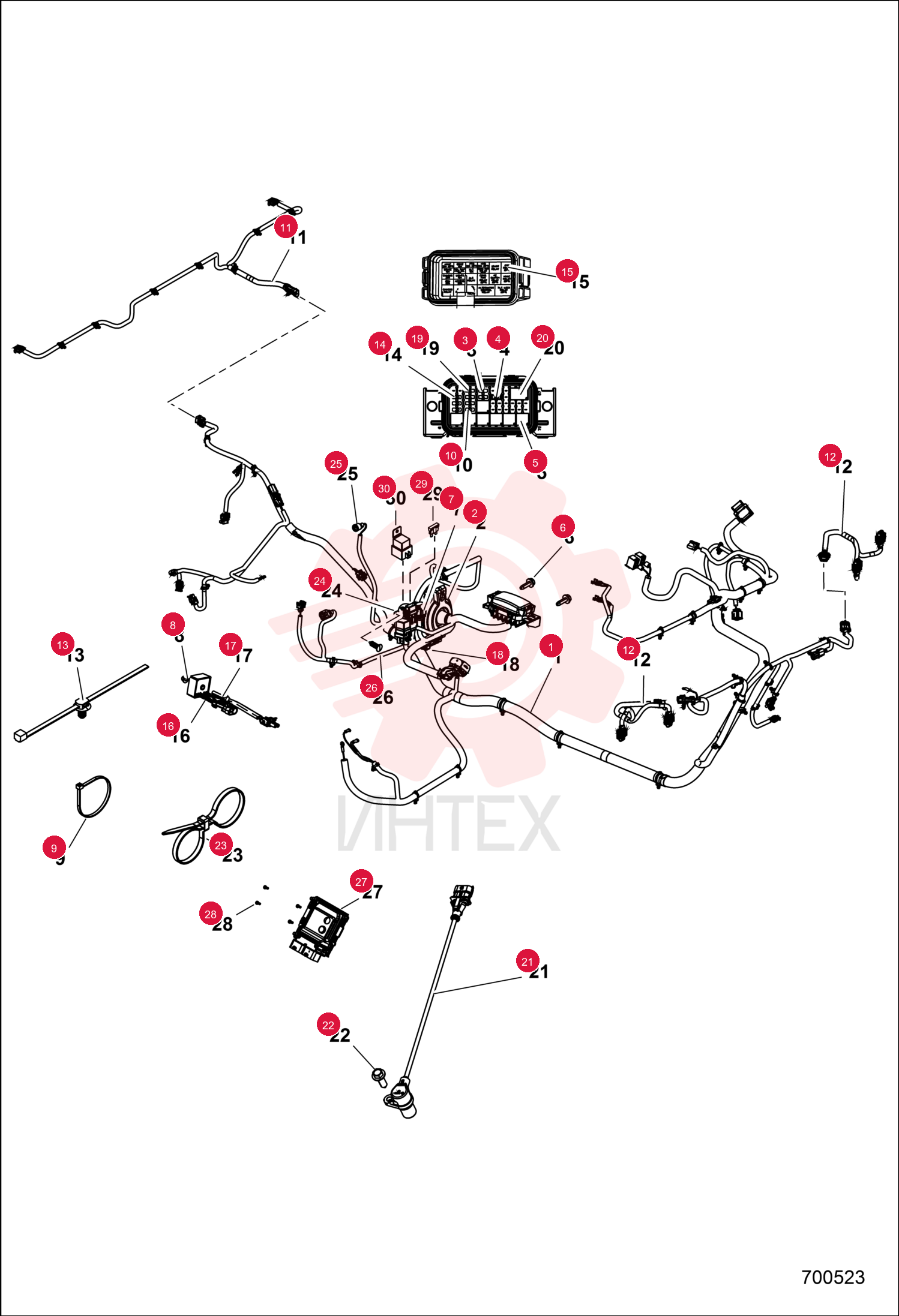

HARNESS, CHASSIS 7258990 (1)
1 7258990
- 7258990 - HARNESS
- CHASSIS
- W/ Ref. 2-5
- 7
- 10
- 13-15
- 19
- 20
- 23 & 24
2 7017577
- 7017577 - KIT
- FUSIBLE LINK 2MM 6MM RING
3 7017576
- 7017576 - KIT
- FUSIBLE LINK 1.0MM
4 7017575
- 7017575 - KIT
- FUSIBLE LINK 0.8 MM
5 7027659
- 7027659 - GROMMET
- HARNESS
6 7258342
- 7258342 - FUSE
- 5A
7 7258343
- 7258343 - BREAKER
- CIRCUIT
8 7017645
- 7017645 - RELAY
- SPST SERIES 303 SEALED
9 7016645
- 7016645 - SCREW
10 7017501
- 7017501 - COVER
- DIAGNOSTIC W/CLIP
11 7016525
- 7016525 - NUT
12 7016245
- 7016245 - TIE
- CABLE
13 6707622
- 6707622 - FUSE
- 20A MINI 5
14 7258345
- 7258345 - HARNESS
- LIGHT REAR
15 7260168
- 7260168 - HARNESS
- HEAD LIGHT
16 7023400
- 7023400 - CLIP
- ROUTING
17 7017532
- 7017532 - FUSE
- MAIN 30 AMP
18 7258991
- 7258991 - DECAL
- FUSE RELAY
19 7016573
- 7016573 - RELAY
- SOLID STATE
- 9A
- LONG LD
20 7023435
- 7023435 - BOLT
- FLANGE
21 7027626
- 7027626 - DIODE
- TVS 30V
22 7258454
- 7258454 - FUSE
- 15A MINI
- Was 7258458 [D]
23 7017644
- 7017644 - RELAY
- SPDT SERIES 301 SEALED
- Was 7258452 [D}
24 7025326
- 7025326 - SENSOR
- MAGNETIC
25 7257189
- 7257189 - BOLT
26 7259226
- 7259226 - TIE
- CABLE
27 7261693
- 7261693 - CLIP
28 7261692
- 7261692 - BOOT
29 7027763
- 7027763 - CLIP
- PLASTIC
30 7027625
- 7027625 - ECU
31 7025490
- 7025490 - BOLT
32 7299883
- 7299883 - FUSE
33 7299886
- 7299886 - RELAY
- PREHEAT GLOWPLUG
