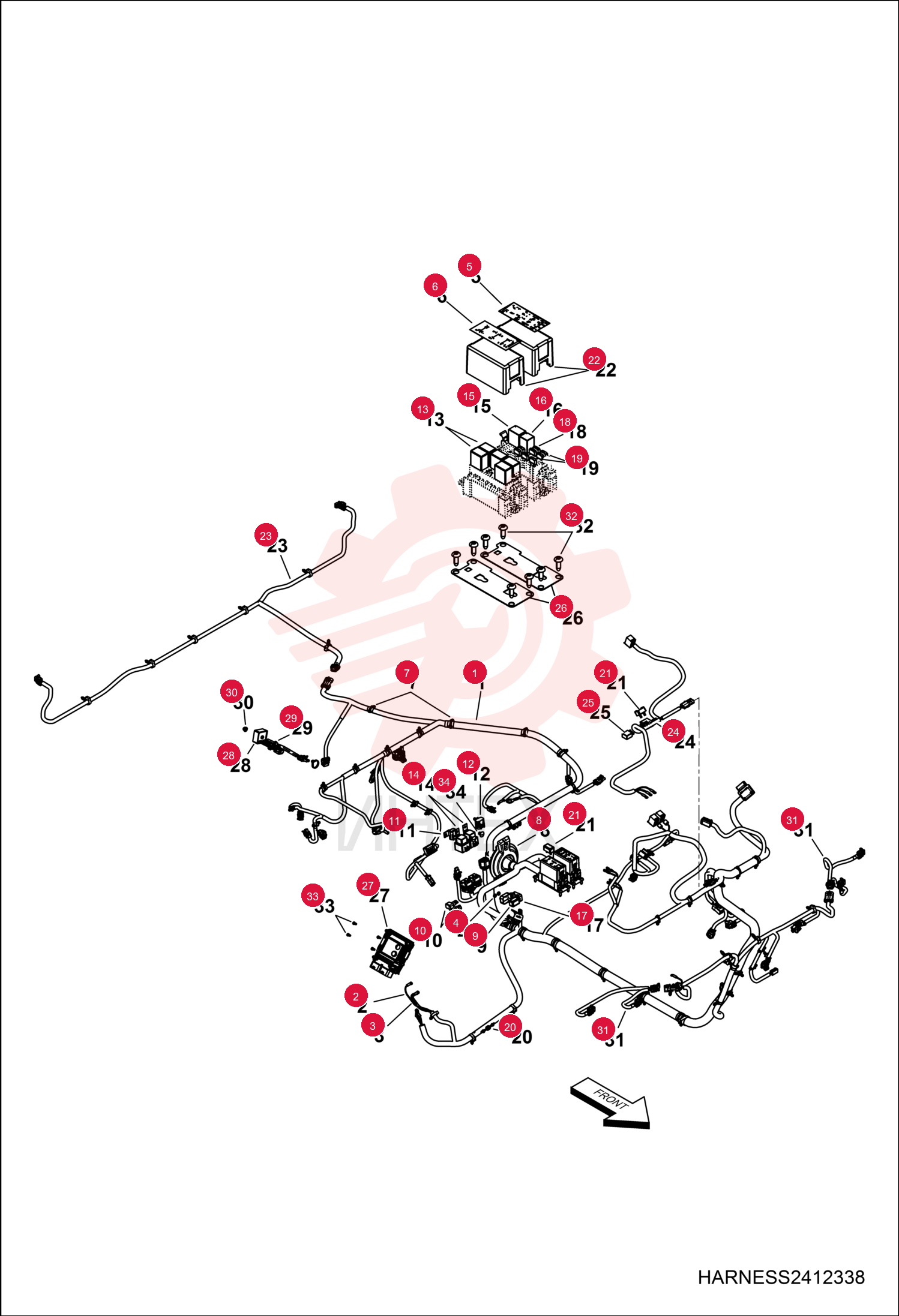

HARNESS, CAB 7027544

HARNESS, CAB 7027544

HARNESS, CAB 7027544

1 7027544

  • 7027544 - HARNESS
  • CAB
  • W/Ref. 2-20

2 7017575

  • 7017575 - KIT
  • FUSIBLE LINK 0.8 MM

3 7017577

  • 7017577 - KIT
  • FUSIBLE LINK 2MM 6MM RING

4 7027750

  • 7027750 - NUT

5 7027728

  • 7027728 - DECAL
  • RELAY BOX

6 7023400

  • 7023400 - CLIP
  • ROUTING

7 7027659

  • 7027659 - GROMMET
  • HARNESS

8 7027630

  • 7027630 - BREAKER
  • CIRCUIT
  • 40A

9 7027624

  • 7027624 - COVER
  • FUSEHOLDER

10 7017501

  • 7017501 - COVER
  • DIAGNOSTIC W/CLIP

11 7017643

  • 7017643 - RELAY
  • MICRO SPDT 35/20A SLD 12

12 7027623

  • 7027623 - RELAY
  • SPST SEALED

13 7017644

  • 7017644 - RELAY
  • SPDT SERIES 301 SEALED

14 7017645

  • 7017645 - RELAY
  • SPST SERIES 303 SEALED

15 7027621

  • 7027621 - BOOT
  • CIRCUIT BREAKER

16 6707622

  • 6707622 - FUSE
  • 20A MINI 5

17 7017532

  • 7017532 - FUSE
  • MAIN 30 AMP

18 7017511

  • 7017511 - RESISTOR
  • DIODE 6AMP 1/4 3/16 TERM

19 7017469

  • 7017469 - BREAKER
  • CIRCUIT 20 AMP SEALED

20 7024211

  • 7024211 - COVER
  • BOX FUSE

21 7025327

  • 7025327 - HARNESS
  • LIGHT REAR

22 7027542

  • 7027542 - HARNESS
  • LIFT BOX
  • W/qty 1 ea of Ref. 20 & 25

23 7027622

  • 7027622 - RELAY
  • MICRO SPST

24 7016558

  • 7016558 - PLATE
  • FUSE
  • MNT
  • Y

25 7027625

  • 7027625 - ECU

26 7016573

  • 7016573 - RELAY
  • SOLID STATE
  • 9A
  • LONG LD

27 7023435

  • 7023435 - BOLT
  • FLANGE

28 7016525

  • 7016525 - NUT

29 7025328

  • 7025328 - HARNESS
  • HEAD LIGHT

30 7016650

  • 7016650 - SCREW

31 7025490

  • 7025490 - BOLT

32 7027763

  • 7027763 - CLIP
  • PLASTIC
