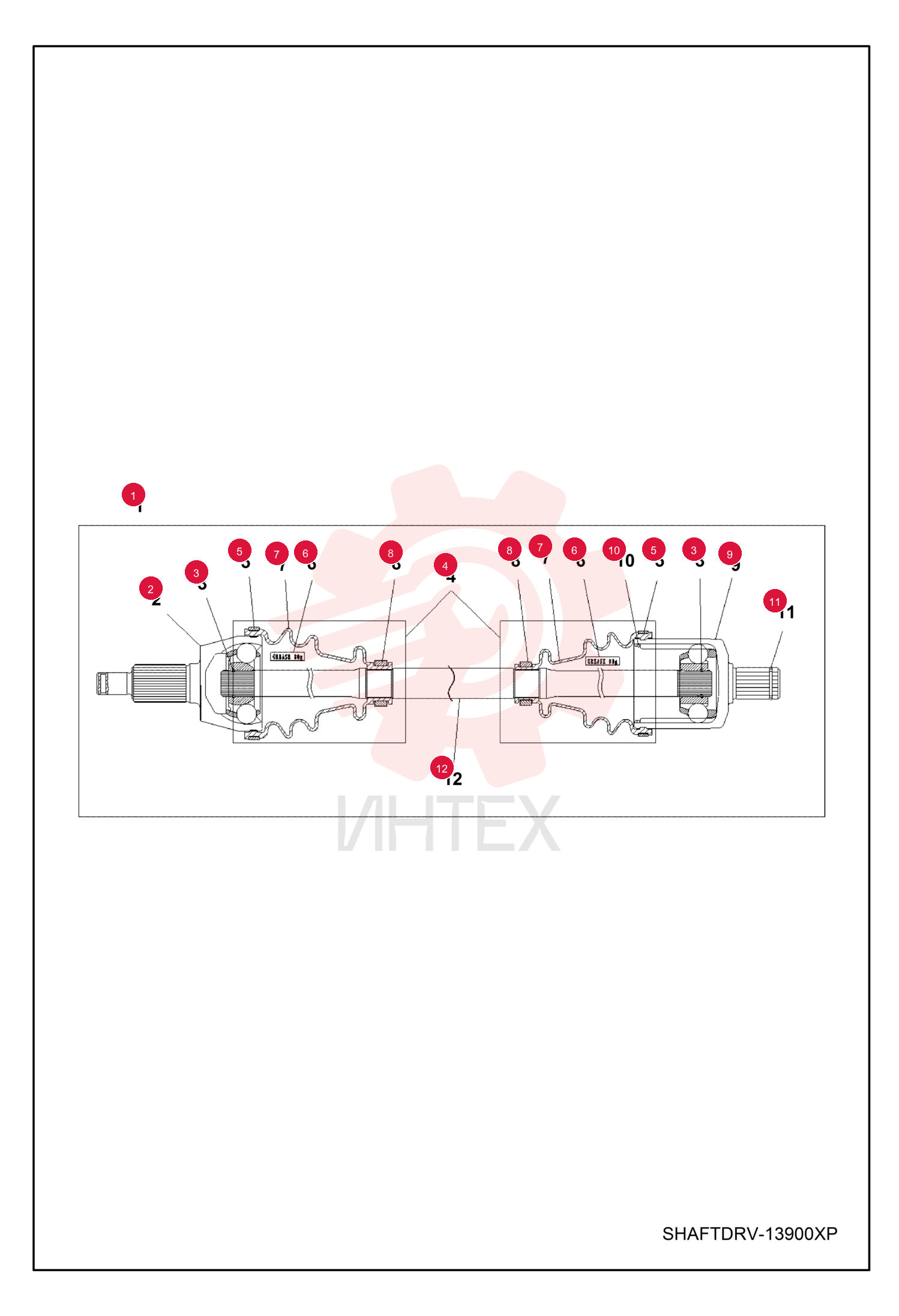

SHAFT, HALF FRONT 7027507 (5)

SHAFT, HALF FRONT 7027507 (5)

SHAFT, HALF FRONT 7027507 (5)

1 7027507

  • 7027507 - SHAFT
  • HALF FRONT
  • W/Ref. 2-12

2 7027505

  • 7027505 - JOINT
  • CV OUTER

3 7017486

  • 7017486 - RING
  • CIRCLIP 1.8X22.2

4 7017568

  • 7017568 - KIT
  • BOOT PLUNGING
  • W/Ref. 5-8

5 7017490

  • 7017490 - CLAMP

6 7017543

  • 7017543 - GREASE

7 7017465

  • 7017465 - BOOT

8 7017491

  • 7017491 - CLAMP

9 7027506

  • 7027506 - JOINT
  • CV INNER

10 7017487

  • 7017487 - RING
  • CIRCLIP 2.0X61.7

11 7027528

  • 7027528 - CIRCLIP

12 7027568

  • 7027568 - SHAFT
