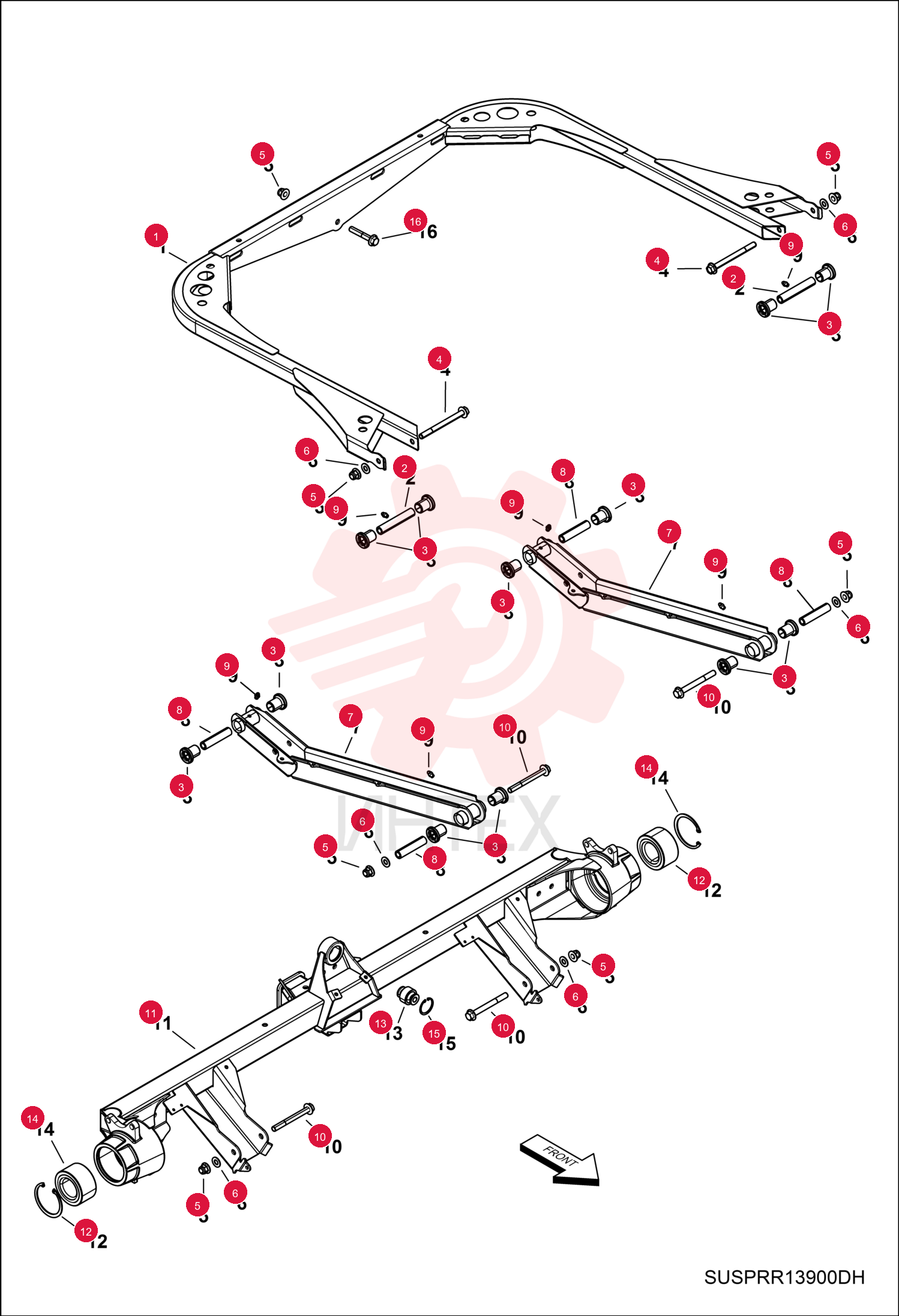

LINK, TOP 7025522 (1)

LINK, TOP 7025522 (1)

LINK, TOP 7025522 (1)

1 7025522

  • 7025522 - LINK
  • TOP

2 7252949

  • 7252949 - SHAFT
  • PIVOT UPPER

3 7021376

  • 7021376 - SHAFT
  • PIVOT UPPER

4 7252948

  • 7252948 - BUSHING
  • ARM CONTROL

5 7025431

  • 7025431 - BUSHING
  • ARM CONTROL

6 7016163

  • 7016163 - BOLT

7 7016518

  • 7016518 - NUT

8 7025509

  • 7025509 - WASHER
  • FLAT

9 7025527

  • 7025527 - LINK
  • LOWER

10 7252946

  • 7252946 - TUBE
  • PIVOT

11 7025386

  • 7025386 - TUBE
  • PIVOT

12 10H35

  • 10H35 - FTG GREASE STRAIGHT

13 7023118

  • 7023118 - SCREW

14 7027774

  • 7027774 - AXLE
  • REAR

15 7016081

  • 7016081 - BEARING
  • WHEEL
  • 40X74X40MM

16 7027712

  • 7027712 - BEARING
  • SPHERICAL LOWER

17 7016578

  • 7016578 - RING
  • RETAINING

18 7027764

  • 7027764 - RING
  • RETAINING

19 7025495

  • 7025495 - BOLT
  • FLANGE
