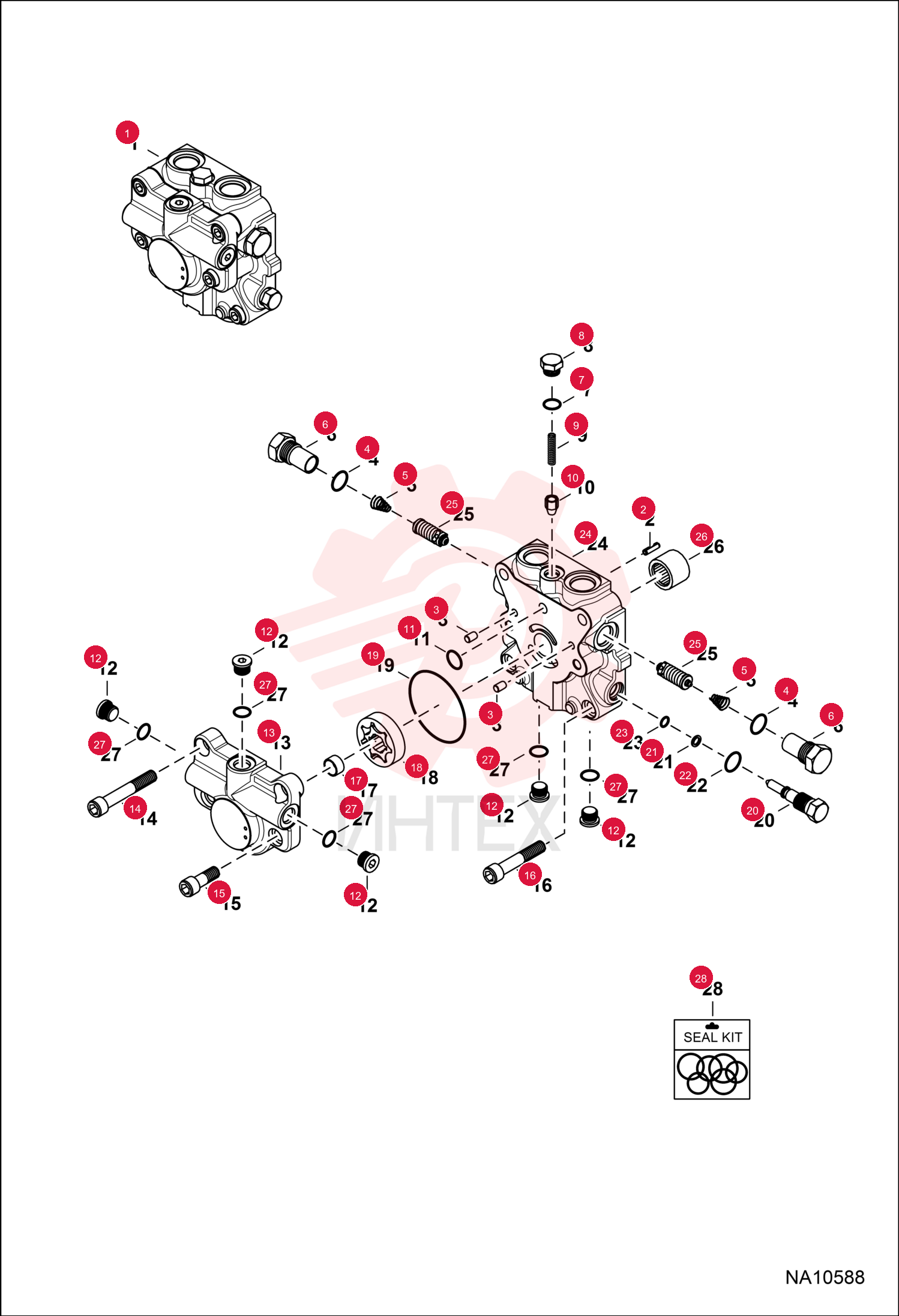

PIN 6650636 (2)

PIN 6650636 (2)

PIN 6650636 (2)

1 6650636

  • 6650636 - PIN

2 7027130

  • 7027130 - PIN

3 6678364

  • 6678364 - SPRING

4 7025161

  • 7025161 - PLUG
  • W/Ref. 4

5 6678371

  • 6678371 - O-RING

6 7025162

  • 7025162 - PLUG
  • W/Ref. 7

7 7025183

  • 7025183 - SPRING

8 7025155

  • 7025155 - VALVE
  • RELIEF CONE

9 6678366

  • 6678366 - O-RING

10 6640614

  • 6640614 - PLUG

11 7271873

  • 7271873 - HOUSING

12 7271874

  • 7271874 - SCREW

13 7271875

  • 7271875 - SCREW

14 7271876

  • 7271876 - SCREW

15 7271877

  • 7271877 - JOURNAL
  • BEARING

16 7271878

  • 7271878 - GEROTOR

17 7271879

  • 7271879 - O-RING

18 7025154

  • 7025154 - VALVE
  • BYPASS
  • W/Ref. 21
  • 22
  • & 23

19 7025159

  • 7025159 - RING
  • BACKUP

20 7025178

  • 7025178 - O-RING

21 7025179

  • 7025179 - O-RING

22 7271880

  • 7271880 - CAP
  • END

23 6670685

  • 6670685 - VALVE
  • RELIEF

24 7025164

  • 7025164 - BEARING
  • NEEDLE

25 7025158

  • 7025158 - KIT
  • SEAL
  • W/Ref. 4
  • 7
  • 11
  • 19
  • & 21
