3600
/

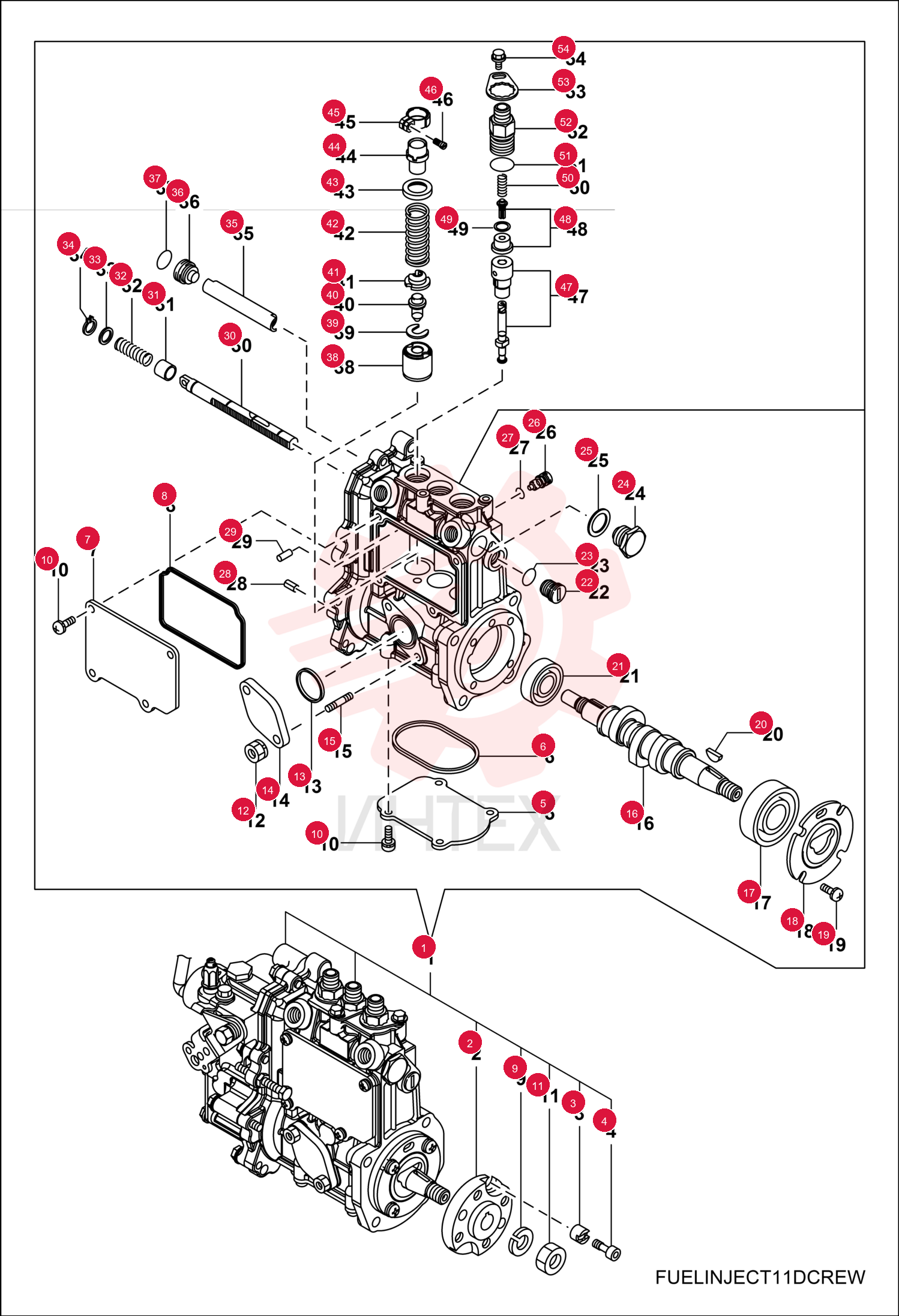

PUMP, FUEL INJ 7018476

PUMP, FUEL INJ 7018476

PUMP, FUEL INJ 7018476

1 7018476

  • 7018476 - PUMP
  • FUEL INJ
  • Ref. 2-54

2 7020777

  • 7020777 - PUMP
  • FUEL INJ REMAN
  • Ref. 2-54

3 7018483

  • 7018483 - FLANGE

4 7018498

  • 7018498 - COLLAR
  • FIXATION FIC

5 7018499

  • 7018499 - BOLT

6 7018511

  • 7018511 - COVER
  • PUMP BOTTOM

7 7018512

  • 7018512 - GASKET
  • COVER LOWER

8 7018513

  • 7018513 - COVER
  • BODY SIDE

9 7018514

  • 7018514 - GASKET
  • COVER SIDE

10 7018517

  • 7018517 - WASHER

11 7018521

  • 7018521 - SCREW

12 7018524

  • 7018524 - NUT

13 7018525

  • 7018525 - NUT

14 7018526

  • 7018526 - GASKET

15 7020705

  • 7020705 - PLATE
  • COVER
