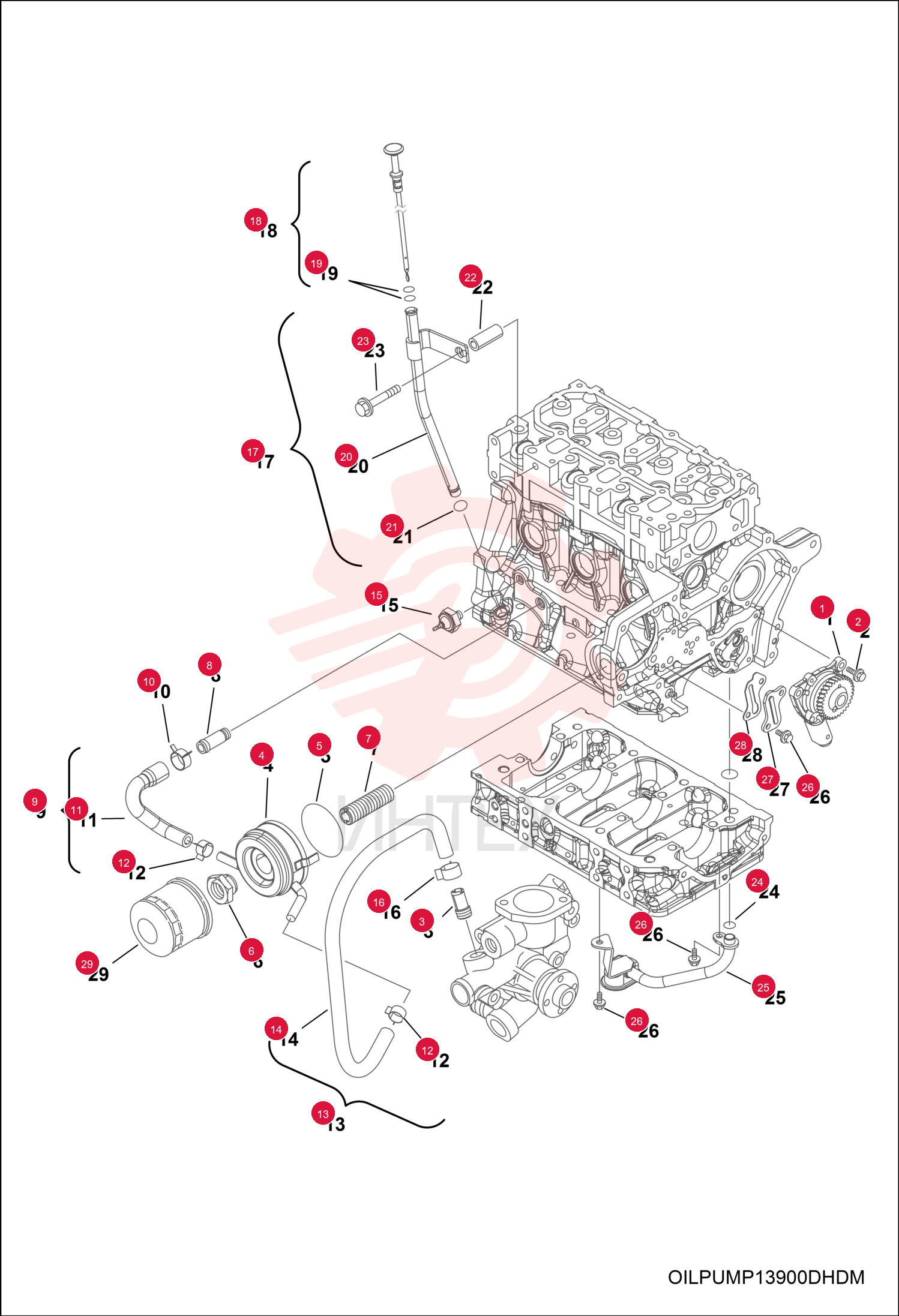

PUMP, OIL ENG ASSY 7018453 (2)

PUMP, OIL ENG ASSY 7018453 (2)

PUMP, OIL ENG ASSY 7018453 (2)

1 7018453

  • 7018453 - PUMP
  • OIL ENG ASSY

2 7018454

  • 7018454 - BOLT

3 7028426

  • 7028426 - FITTING

4 7028424

  • 7028424 - EXCHANGER
  • OIL COOLER
  • W/Ref. 5

5 7028438

  • 7028438 - O-RING

6 7028437

  • 7028437 - NUT
  • RETAINING

7 7028447

  • 7028447 - STUD

8 7028427

  • 7028427 - FITTING

9 7252916

  • 7252916 - PIPE
  • WATER
  • W/Ref. 10-12

10 7028423

  • 7028423 - CLIP

11 7252917

  • 7252917 - PIPE
  • WATER COOLER IN

12 7028421

  • 7028421 - CLAMP
  • HOSE

13 7028435

  • 7028435 - HOSE
  • HEATER
  • W/Ref. 12
  • 14 & 16

14 7028434

  • 7028434 - HOSE
  • HEATER

15 7018464

  • 7018464 - SWITCH
  • PRESS OIL ENG

16 7028422

  • 7028422 - CLAMP
  • HOSE

17 7252915

  • 7252915 - GUIDE
  • DIPSTICK
  • W/Ref. 18-21

18 7020763

  • 7020763 - DIPSTICK
  • W/Ref. 19

19 7018456

  • 7018456 - ORING

20 7018455

  • 7018455 - DIPSTICK
  • OIL
  • W/Ref. 21

21 7020765

  • 7020765 - ORING

22 7028445

  • 7028445 - SPACER

23 7028419

  • 7028419 - BOLT

24 7018459

  • 7018459 - ORING

25 7028443

  • 7028443 - SCREEN
  • OIL ENG

26 7018461

  • 7018461 - BOLT

27 7018462

  • 7018462 - COVER

28 7018463

  • 7018463 - KIT
  • SEAL

29 7018465

  • 7018465 - FILTER
  • OIL ENG
