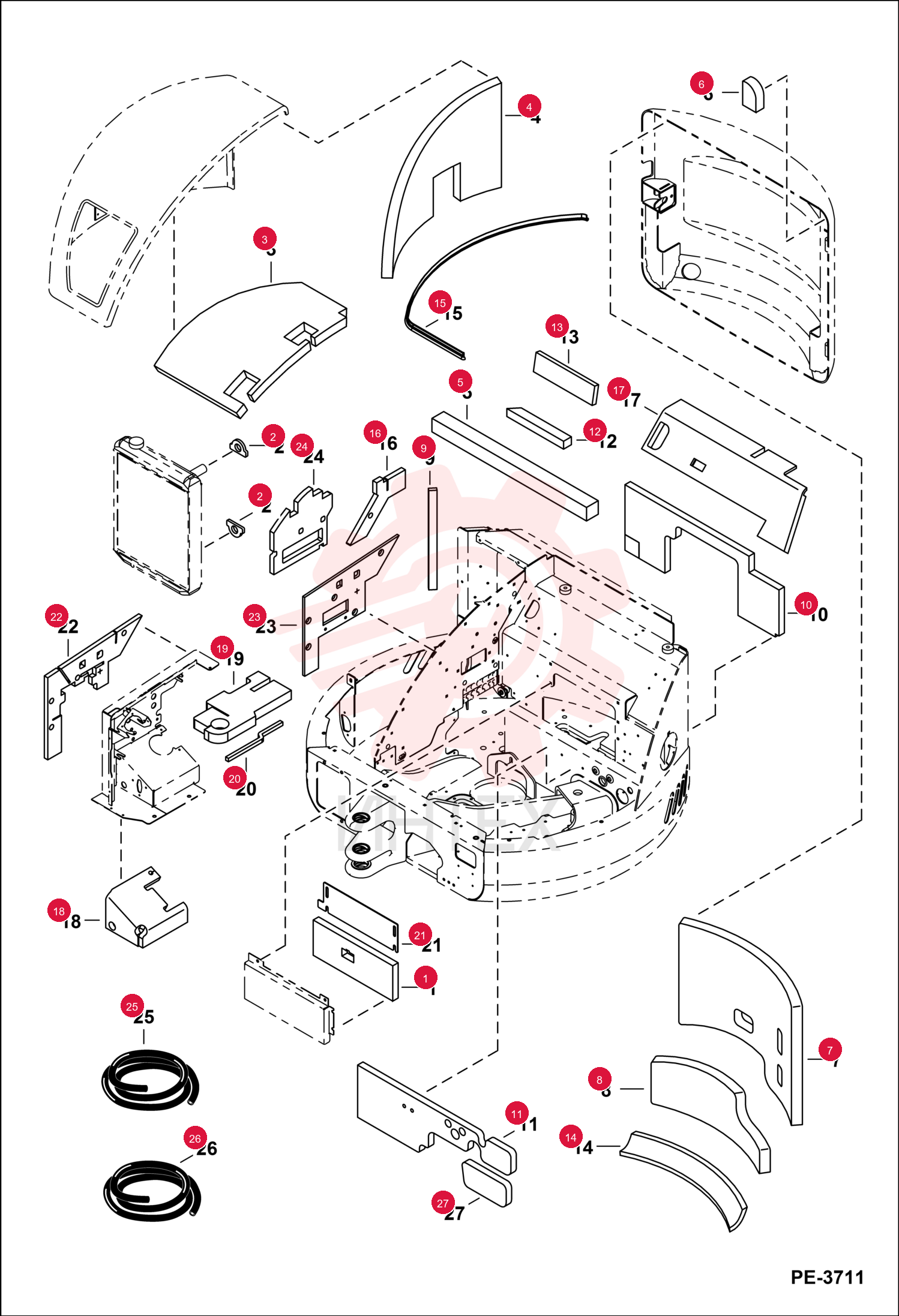

INSULATION 6812193 (1)

INSULATION 6812193 (1)

INSULATION 6812193 (1)

1 6812193

  • 6812193 - INSULATION
  • seat

2 6812377

  • 6812377 - INSULATION
  • radiator

3 6814371

  • 6814371 - INSULATION
  • RH cover

4 6814372

  • 6814372 - INSULATION
  • RH cover

5 6814393

  • 6814393 - INSULATION
  • tailgate

6 6816600

  • 6816600 - INSULATION
  • tailgate

7 7100755

  • 7100755 - INSULATION
  • tailgate

8 7100756

  • 7100756 - INSULATION
  • tailgate - Not Use W/ option ext. arm 430 or long arm 435

9 7102123

  • 7102123 - INSULATION
  • RH cover

10 7103022

  • 7103022 - INSULATION
  • engine

11 7103023

  • 7103023 - INSULATION
  • engine

12 7103034

  • 7103034 - INSULATION
  • RH cover

13 7114273

  • 7114273 - INSULATION
  • ESA Only

14 7114281

  • 7114281 - INSULATION

15 7135902

  • 7135902 - INSULATION
  • VALVE

16 7135962

  • 7135962 - INSULATION
  • ENGINE

17 7138375

  • 7138375 - INSULATION
  • CONSOLE

18 7148581

  • 7148581 - INSULATION

19 7150750

  • 7150750 - INSULATION
  • SEAT

20 7155061

  • 7155061 - INSULATION
  • CAB CONSOLE RH

21 7155062

  • 7155062 - INSULATION
  • CAB CONSOLE RH

22 7155063

  • 7155063 - INSULATION
  • VALVE

23 6676396

  • 6676396 - SEAL
  • BULK/FT
  • bulk - sold per foot

24 6808577

  • 6808577 - SEAL
  • bulk - sold per foot

25 6818393

  • 6818393 - INSULATION
  • engine
