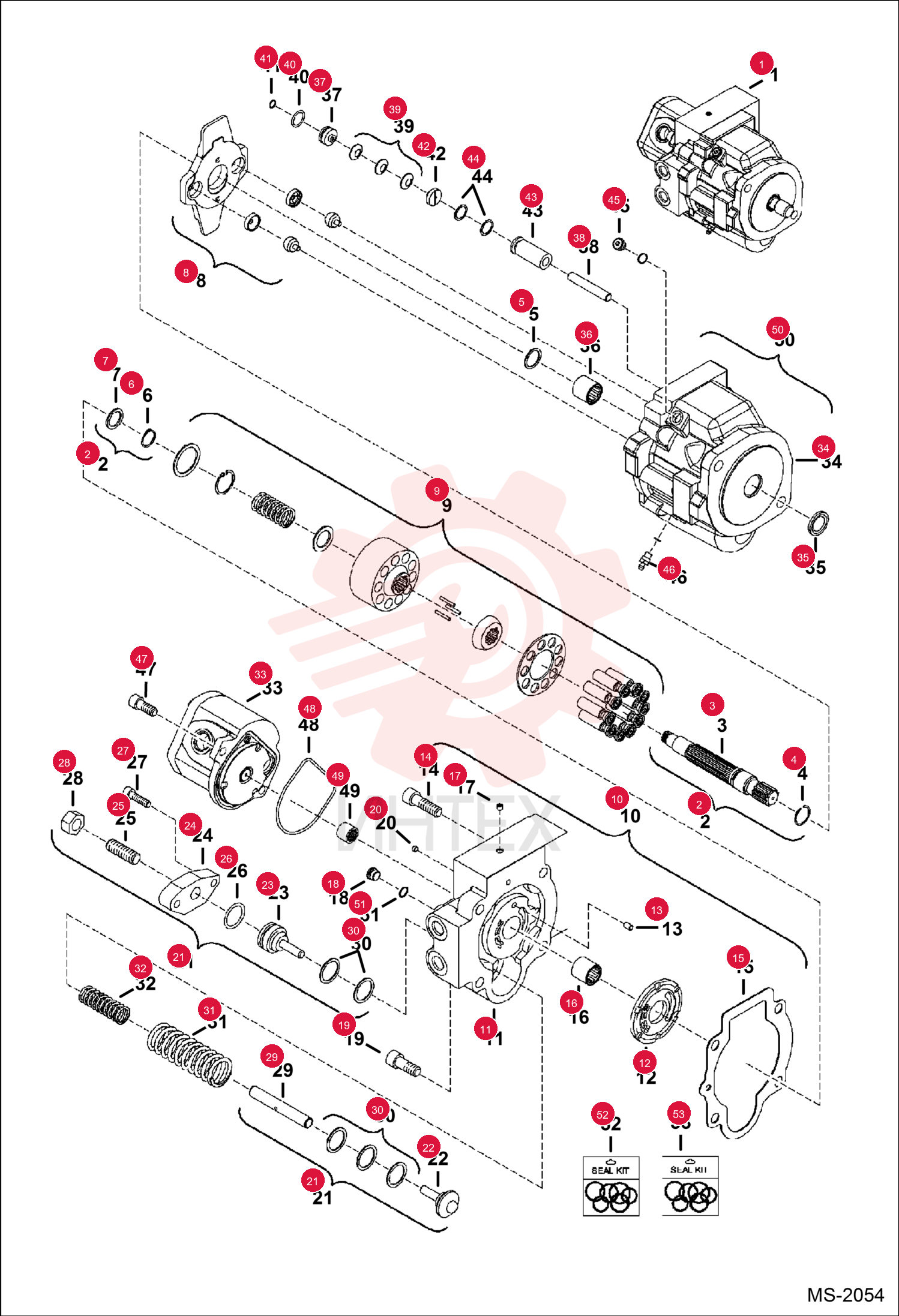

PUMP 6698085REM (1)
1 6698085REM
- 6698085REM - PUMP
2 6698085
- 6698085 - PUMP
- Was 6685836
3 6687780
- 6687780 - SHAFT ASSEMBLY
- assy - W/Ref. 3-7
4 6687895
- 6687895 - SHAFT
5 6687791
- 6687791 - RING
6 6687792
- 6687792 - SHIM
7 6679471
- 6679471 - RETAINER
- NLA - Was 6679471
8 6687793
- 6687793 - SHIM
9 6687781
- 6687781 - SWASH PLATE ASSY
- swash plate assy
10 6687782
- 6687782 - ROTARY GROUP
- group
11 6687783
- 6687783 - PORT PLATE ASSY
- W/Ref. 11-20
12 6687794
- 6687794 - CONTROL PLATE
- control
13 6687795
- 6687795 - PIN
14 6687796
- 6687796 - BOLT
15 6687797
- 6687797 - GASKET
16 6687798
- 6687798 - BEARING
17 6678595
- 6678595 - PLUG
18 6687799
- 6687799 - PLUG
- W/Ref. 51
19 6687800
- 6687800 - BOLT
20 6687801
- 6687801 - ORIFICE
21 6687891
- 6687891 - SPRING ASSEMBLY
- seat assy - W/Ref. 22-30
22 6687802
- 6687802 - SPRING
- SEAT
- spring
23 6687803
- 6687803 - SPRING
- seat
24 6687896
- 6687896 - COVER
25 6687805
- 6687805 - ADJUSTING SCREW
26 6687806
- 6687806 - ORING
27 6687807
- 6687807 - BOLT
- socket head
28 6687808
- 6687808 - NUT
29 6687809
- 6687809 - GUIDE
30 6687810
- 6687810 - SHIM
- .040'' (1mm)
31 6687811
- 6687811 - SHIM
- .020'' (.5mm)
32 6687812
- 6687812 - SHIM
- .012'' (.3mm)
33 6687893
- 6687893 - SPRING
34 6687894
- 6687894 - SPRING
35 6687892
- 6687892 - PUMP
- gear - W/Ref. 48 & 49
36 6687813
- 6687813 - SEAL
- OIL
- oil
37 6687814
- 6687814 - BEARING
38 6698371
- 6698371 - PISTON
- Was 6687815
39 6687816
- 6687816 - PIN
40 6687817
- 6687817 - SPRING
- coned
41 6687818
- 6687818 - ORING
42 6687819
- 6687819 - ORING
43 6698370
- 6698370 - SPACER
- Was 6687820
44 6687821
- 6687821 - SLEEVE
45 6687824
- 6687824 - SHIM
- .039'' (1mm)
46 6687823
- 6687823 - SHIM
- .020'' (5mm)
47 6687822
- 6687822 - SHIM
- .004'' (.1mm)
48 6682878
- 6682878 - PLUG
- W/ O-ring - Was 6687789
49 6687788
- 6687788 - PLUG
- W/ O-ring
50 6678641
- 6678641 - SCREW
51 6687898
- 6687898 - O-RING
52 6687897
- 6687897 - COUPLING
53 6687785
- 6687785 - HOUSING ASSY
- W/Ref. 34-44
54 6693152
- 6693152 - KIT
- SEAL
- W/Ref. 15
- 26
- 35
- 40
- 41
- 46
- 48
- 51
55 6693151
- 6693151 - KIT
- SEAL
- complete - Includes seal kits 6693152(piston pump) & 6690452(gear pump)
