Bobcat
/
430.0
/

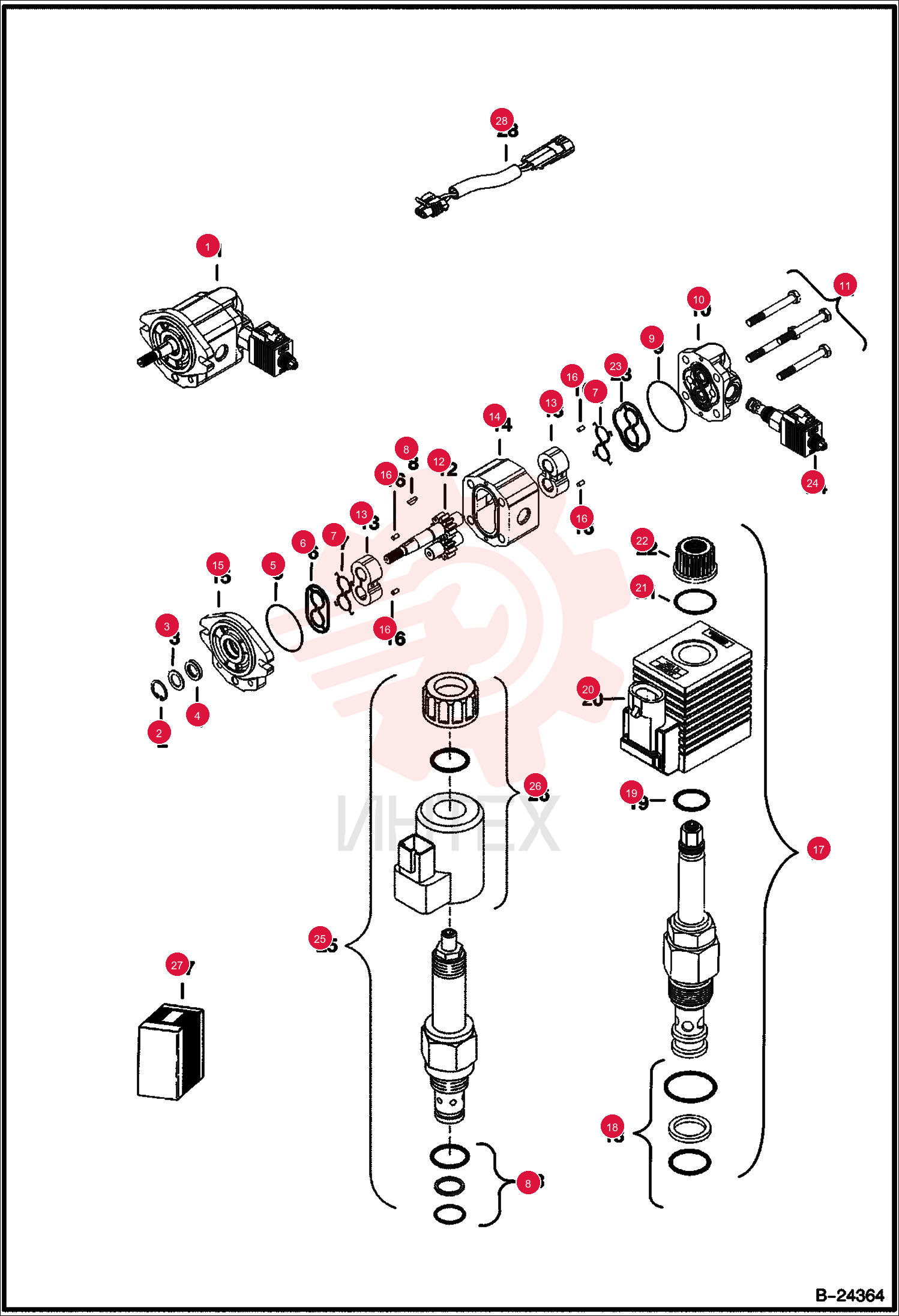

MOTOR, FAN 6698368 (2)

MOTOR, FAN 6698368 (2)

MOTOR, FAN 6698368 (2)

1 6698368

  • 6698368 - MOTOR
  • FAN
  • Was 6689590

2 6686648

  • 6686648 - RING
  • RETAINER

3 6686650

  • 6686650 - WASHER

4 6686649

  • 6686649 - KIT
  • SEAL

5 6686651

  • 6686651 - KEY

6 6683206

  • 6683206 - SEAL KIT

7 6686209

  • 6686209 - O-RING

8 6681491

  • 6681491 - COIL
  • Was 6684590

9 6686208

  • 6686208 - O-RING

10 6686207

  • 6686207 - NUT

11 6689059

  • 6689059 - VALVE
  • RELIEF

12 6689060

  • 6689060 - COIL ASSEMBLY

13 6686206

  • 6686206 - SEAL KIT
  • shaft - Ref. 2-4

14 7001015

  • 7001015 - KIT
  • SEAL
  • complete - Ref. 4-7
  • 9
  • 23 - Was 6686206

15 6716170

  • 6716170 - HARNESS
  • harness - accommodates new valve on motor 6689590
