430.0
/

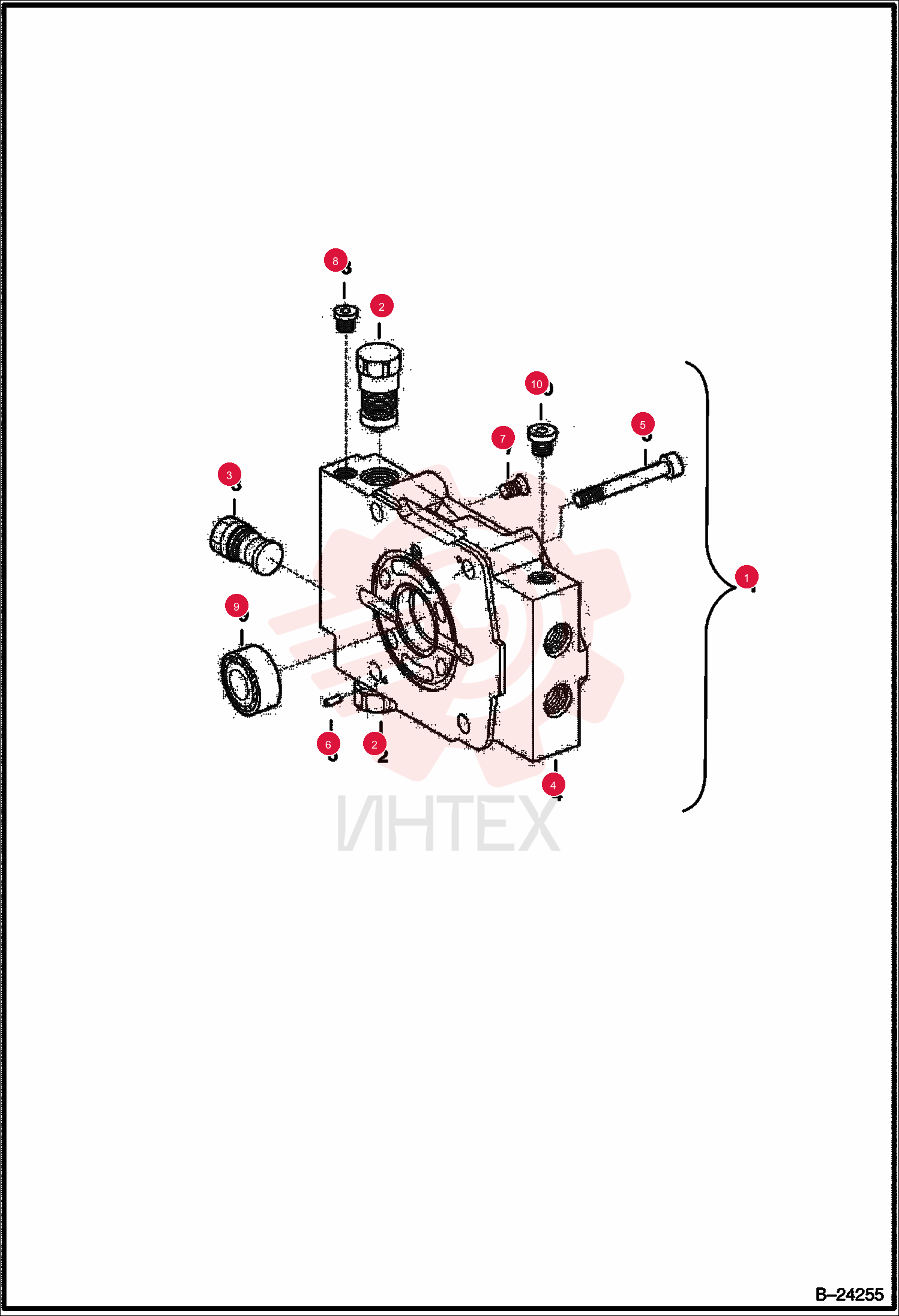

PLATE ASSEMBLY 6685410 (1)

PLATE ASSEMBLY 6685410 (1)

PLATE ASSEMBLY 6685410 (1)

1 6685410

  • 6685410 - PLATE ASSEMBLY
  • valve assy

2 6690943

  • 6690943 - VALVE
  • RELIEF
  • preset to 350 bar

3 6685412

  • 6685412 - PLUG ASSEMBLY
  • assy

4 6685413

  • 6685413 - SCREW

5 6682919

  • 6682919 - PIN CYLINDER

6 6682960

  • 6682960 - SCREW

7 6685414

  • 6685414 - BEARING

8 6671783

  • 6671783 - PLUG
  • Was 6682876
