Bobcat
/
430.0
/

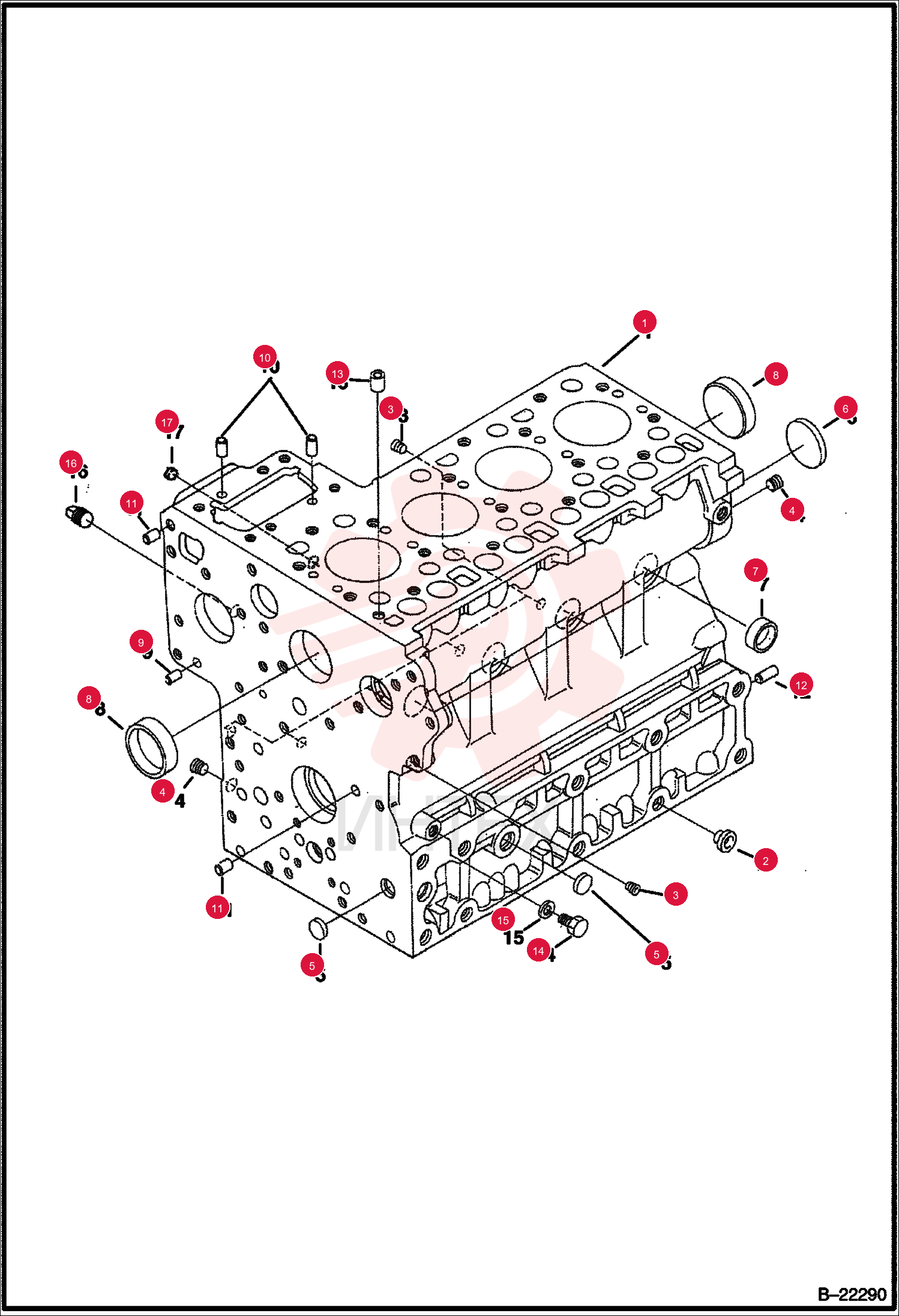

CRANKCASE 6685076 (4)

CRANKCASE 6685076 (4)

CRANKCASE 6685076 (4)

1 6685076

  • 6685076 - CRANKCASE
  • W/Ref. 2-13

2 6598187

  • 6598187 - PLUG

3 6652574

  • 6652574 - PLUG
  • Was 6598169

4 6652575

  • 6652575 - PLUG
  • Was 6598170

5 6667418

  • 6667418 - PLUG
  • expansion

6 4FM45

  • 4FM45 - PLUG
  • expansion

7 3974389

  • 3974389 - PLUG
  • Was 6680638

8 3974390

  • 3974390 - PLUG
  • Was 6680639

9 3974393

  • 3974393 - PIN
  • straight

10 3974394

  • 3974394 - PIN

11 3974395

  • 3974395 - PIN

12 3974868

  • 3974868 - PIN

13 3974037

  • 3974037 - PIN
  • pipe

14 6655884

  • 6655884 - PLUG
  • Was 3974403

15 3974095

  • 3974095 - GASKET
  • METAL
  • copper - Was 6680792

16 16F2

  • 16F2 - PLUG

17 3975169

  • 3975169 - CAP
  • sealing
