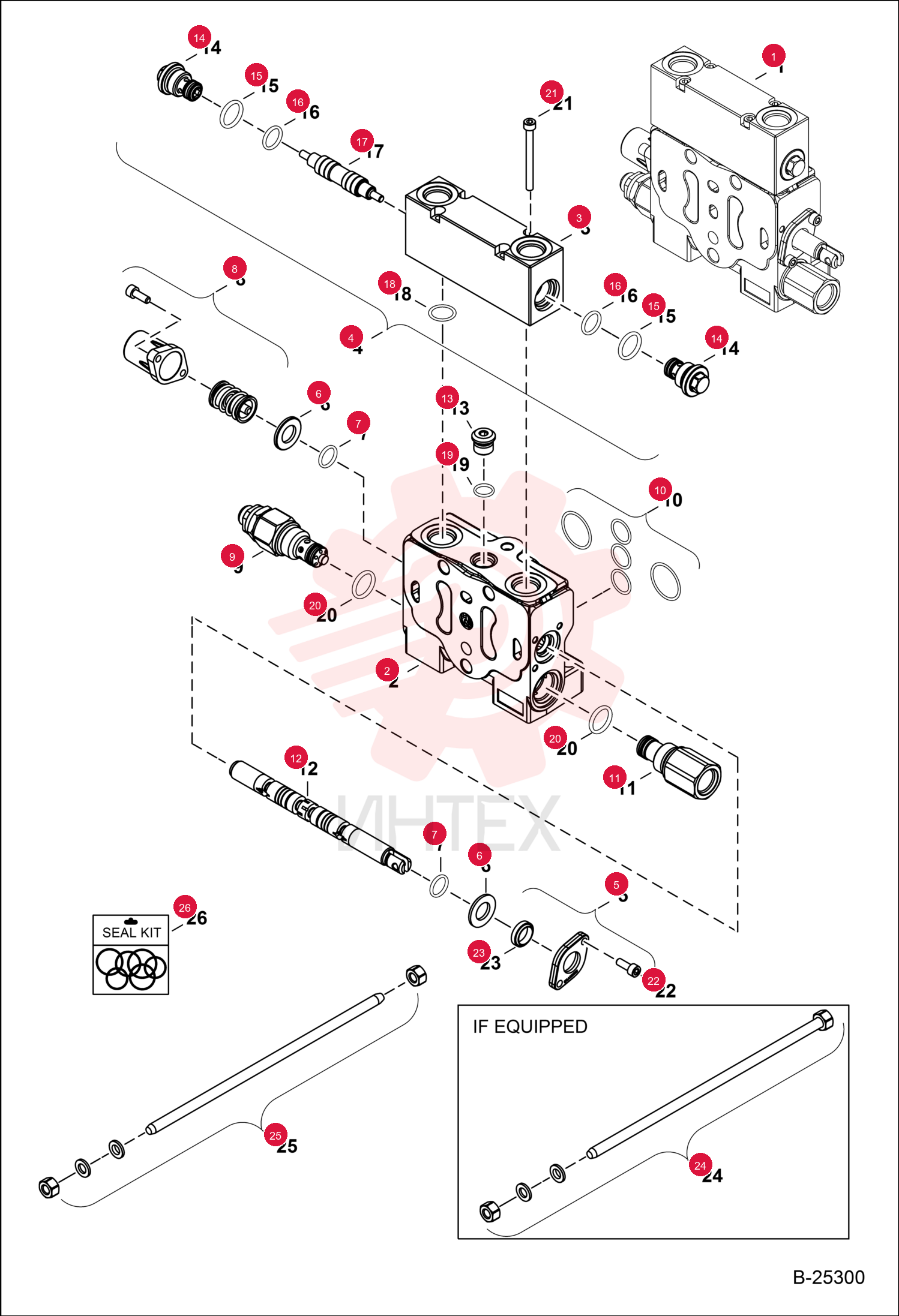

OUTLET SECTION 6685295

OUTLET SECTION 6685295

OUTLET SECTION 6685295

1 6685295

  • 6685295 - OUTLET SECTION
  • section - W/Ref. 2-23

2 6680070

  • 6680070 - VALVE
  • SECTION

3 6680097

  • 6680097 - COVER
  • END

4 6680095

  • 6680095 - WASHER

5 6680094

  • 6680094 - O-RING

6 6680068

  • 6680068 - KIT
  • CAP
  • control

7 6682252

  • 6682252 - VALVE
  • RELIEF
  • relief

8 6680066

  • 6680066 - KIT
  • SEAL
  • o-ring

9 6680119

  • 6680119 - PLUG ASSEMBLY
  • assy.

10 6680093

  • 6680093 - PLUG ASSEMBLY
  • assy. - W/Ref. 19

11 6690942

  • 6690942 - CARTRIDGE
  • W/Ref. 15 & 16

12 6690468

  • 6690468 - O-RING

13 6690467

  • 6690467 - O-RING

14 6686495

  • 6686495 - O-RING

15 6690936

  • 6690936 - SCREW

16 6680071

  • 6680071 - SCREW

17 6679912

  • 6679912 - SEAL
  • spool

18 7259726

  • 7259726 - ROD
  • TIE

19 6685310

  • 6685310 - SEAL KIT
  • Ref. 7
  • 15
  • 16
  • 18-20 & 23
