435.0
/

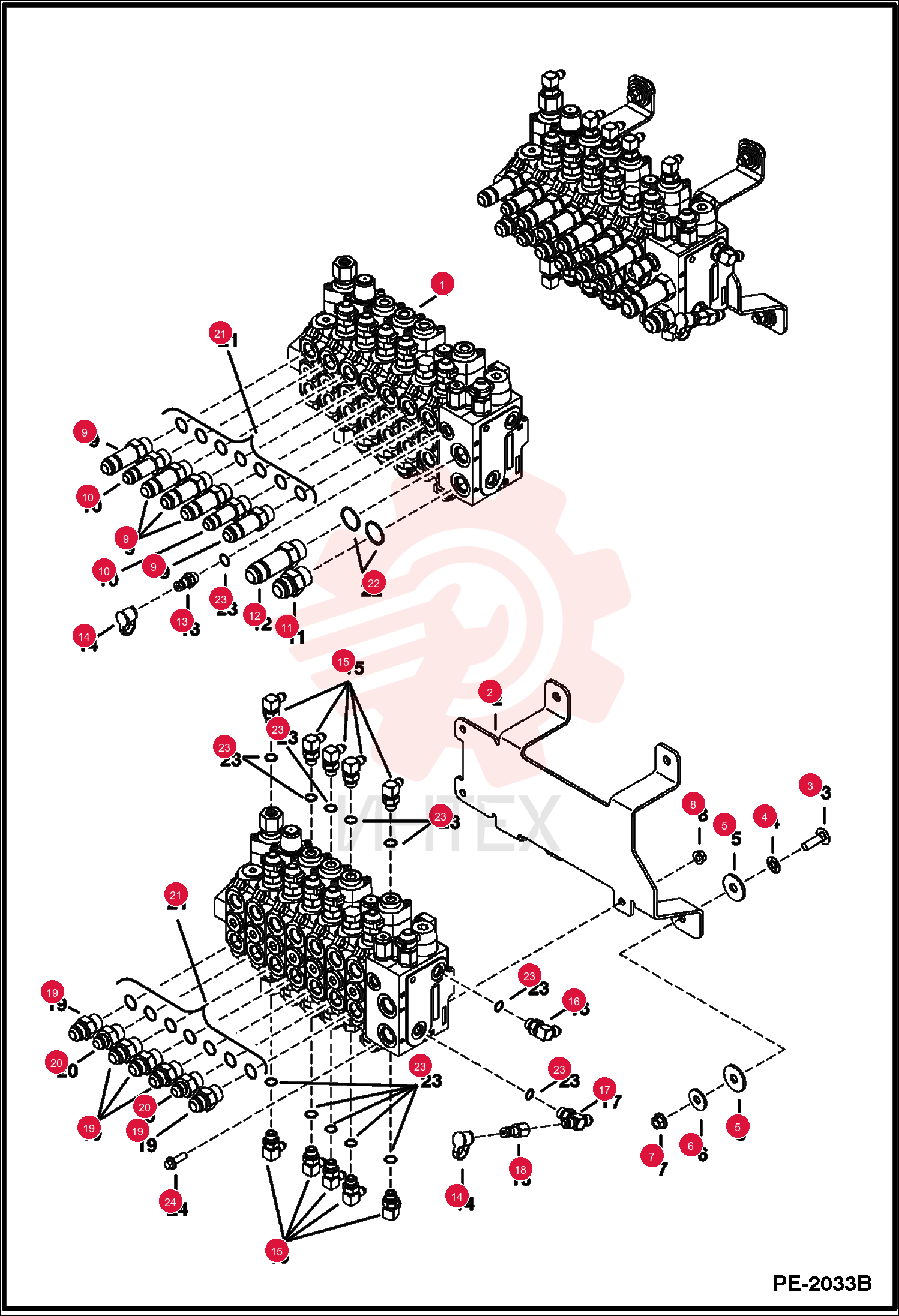

MOUNT 6811362 (2)

MOUNT 6811362 (2)

MOUNT 6811362 (2)

1 6811362

  • 6811362 - MOUNT

2 21CM1035

  • 21CM1035 - BOLT

3 6674264

  • 6674264 - RETAINER BOLT

4 6806720

  • 6806720 - INSULATOR

5 17EM100

  • 17EM100 - WASHER

6 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

7 43DM8

  • 43DM8 - NUT FLANGED HEX

8 16KB1008

  • 16KB1008 - FITTING
  • HYD ELBOW
  • W/Ref. 21

9 16KB0808

  • 16KB0808 - FITTING
  • HYD CONNECTOR
  • W/Ref. 21

10 15KB1212

  • 15KB1212 - FITTING
  • HYD CONNECTOR
  • W/Ref. 22

11 16KB1212

  • 16KB1212 - FITTING
  • HYD CONNECTOR
  • W/Ref. 22

12 6630168

  • 6630168 - COUPLER
  • DIAGNOSTIC
  • diagnostic - W/Ref. 23

13 6630367

  • 6630367 - CAP
  • dust

14 17KB0406

  • 17KB0406 - FITTING
  • HYD ELBOW
  • W/Ref. 23

15 17KB0606

  • 17KB0606 - FTG HYD 90 ELBOW
  • W/Ref. 23

16 19KB0606

  • 19KB0606 - FITTING
  • HYD TEE
  • W/Ref. 23

17 6661753

  • 6661753 - PLUG
  • diagnostic

18 15KB1008

  • 15KB1008 - FITTING
  • HYD CONNECTOR
  • W/Ref. 21

19 15KB0808

  • 15KB0808 - FTG HYD S CONNECTOR
  • W/Ref. 21

20 79K10

  • 79K10 - O RING 10

21 79K12

  • 79K12 - O RING 10

22 79K6

  • 79K6 - O RING 10

23 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8
