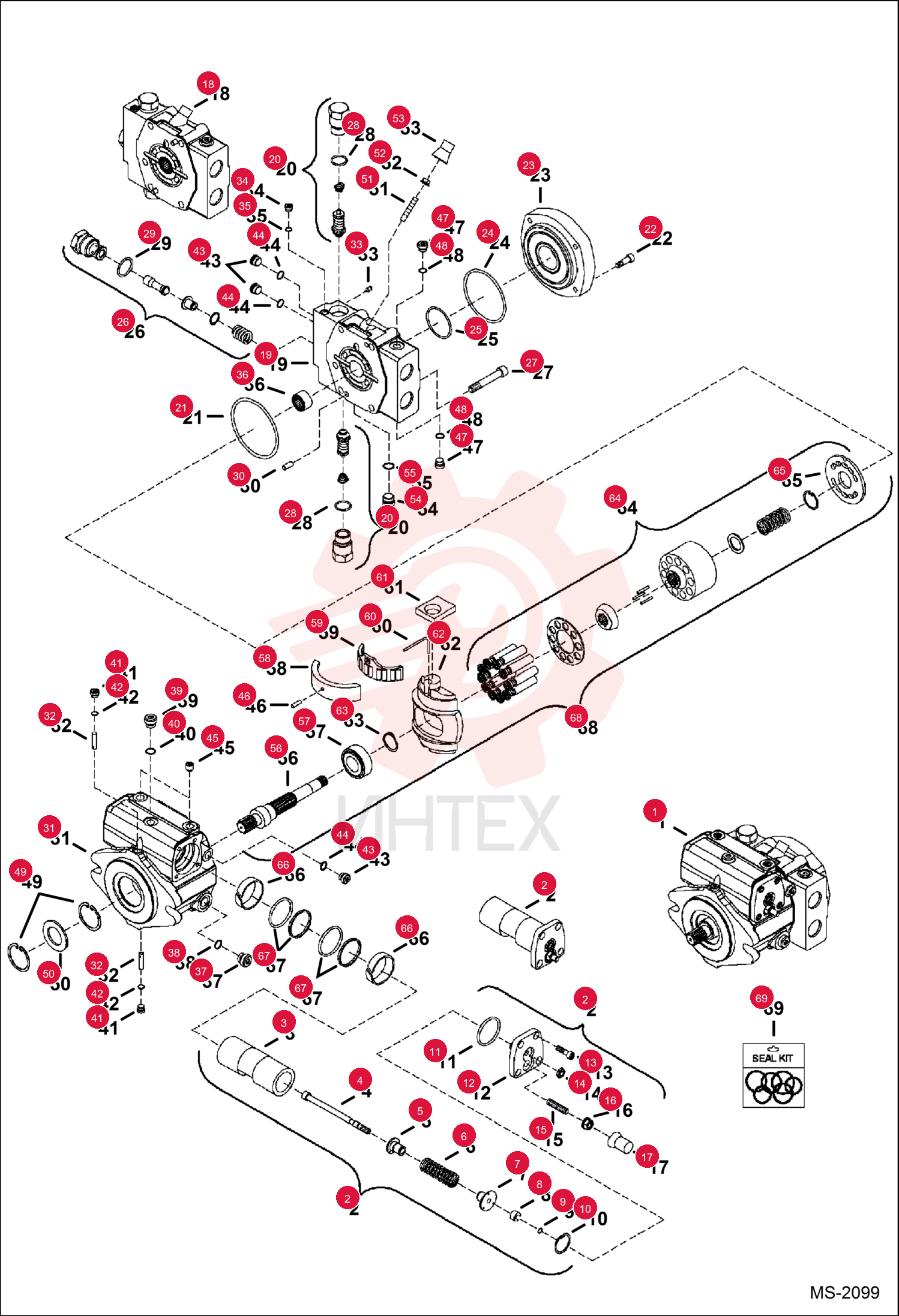

PUMP, HYD REAR 6698357
1 6698357
- 6698357 - PUMP
- HYD REAR
2 6698338
- 6698338 - PISTON
- ASSY
3 6685408
- 6685408 - O-RING
4 6698339
- 6698339 - PORT PLATE
- ASSY - W/Ref. 19
- 20
- 26
- 30
- 33-36
- 43
- 47 & 54
5 6690943
- 6690943 - VALVE
- RELIEF
- preset to 350 bar - W/Ref. 28
6 6682949
- 6682949 - O-RING
7 6691092
- 6691092 - SCREW
8 6687770
- 6687770 - PLATE
9 6685426
- 6685426 - O-RING
10 6685419
- 6685419 - O-RING
11 6685423
- 6685423 - VALVE
- RELIEF
- W/Ref. 29
12 6685413
- 6685413 - SCREW
13 6685415
- 6685415 - O-RING
14 6682929
- 6682929 - O-RING
15 6682919
- 6682919 - PIN CYLINDER
16 6967414
- 6967414 - PIN
- Was 6671789
17 6682879
- 6682879 - PIN
18 6682960
- 6682960 - SCREW
19 6685460
- 6685460 - O-RING
20 6685414
- 6685414 - BEARING
21 6682877
- 6682877 - PLUG
- W/Ref. 38
22 6685460
- 6685460 - O-RING
- Was 6698344
23 6671783
- 6671783 - PLUG
- Was 6682876 - W/Ref. 48
24 6698342
- 6698342 - ORING
25 6682878
- 6682878 - PLUG
- W/seal ring
26 6682875
- 6682875 - PLUG
- W/Ref. 44
27 6698343
- 6698343 - ORING
28 6967419
- 6967419 - ORIFICE
29 6685389
- 6685389 - PIN
30 6671783
- 6671783 - PLUG
- Was 6682876 - W/Ref. 48
31 6698342
- 6698342 - ORING
32 6685398
- 6685398 - RING
- RETAINER
33 6685399
- 6685399 - SEAL
34 6682881
- 6682881 - SCREW ECCENTRIC
35 6671746
- 6671746 - NUT
- LOCK
- Was 6682882 - seal lock
36 6685390
- 6685390 - SCREW
- W/Ref. 55
37 6698345
- 6698345 - ORING
38 6685393
- 6685393 - SHAFT
39 6685395
- 6685395 - BEARING
40 6685394
- 6685394 - BEARING
- CONE
41 6685396
- 6685396 - BEARING ASSY
42 6682887
- 6682887 - WIRE
43 6685388
- 6685388 - RING
- slide
44 6685392
- 6685392 - CRADLE
45 6685397
- 6685397 - RING
- RETAINER
46 7000301
- 7000301 - PISTON GROUP
47 7000300
- 7000300 - PLATE
- VALVE
48 6685405
- 6685405 - RING
- wear
49 6685406
- 6685406 - RING
- sealing
50 6698341
- 6698341 - ROTATOR
- ASSY
51 6698350
- 6698350 - SEAL KIT
