Bobcat
/
435.0
/

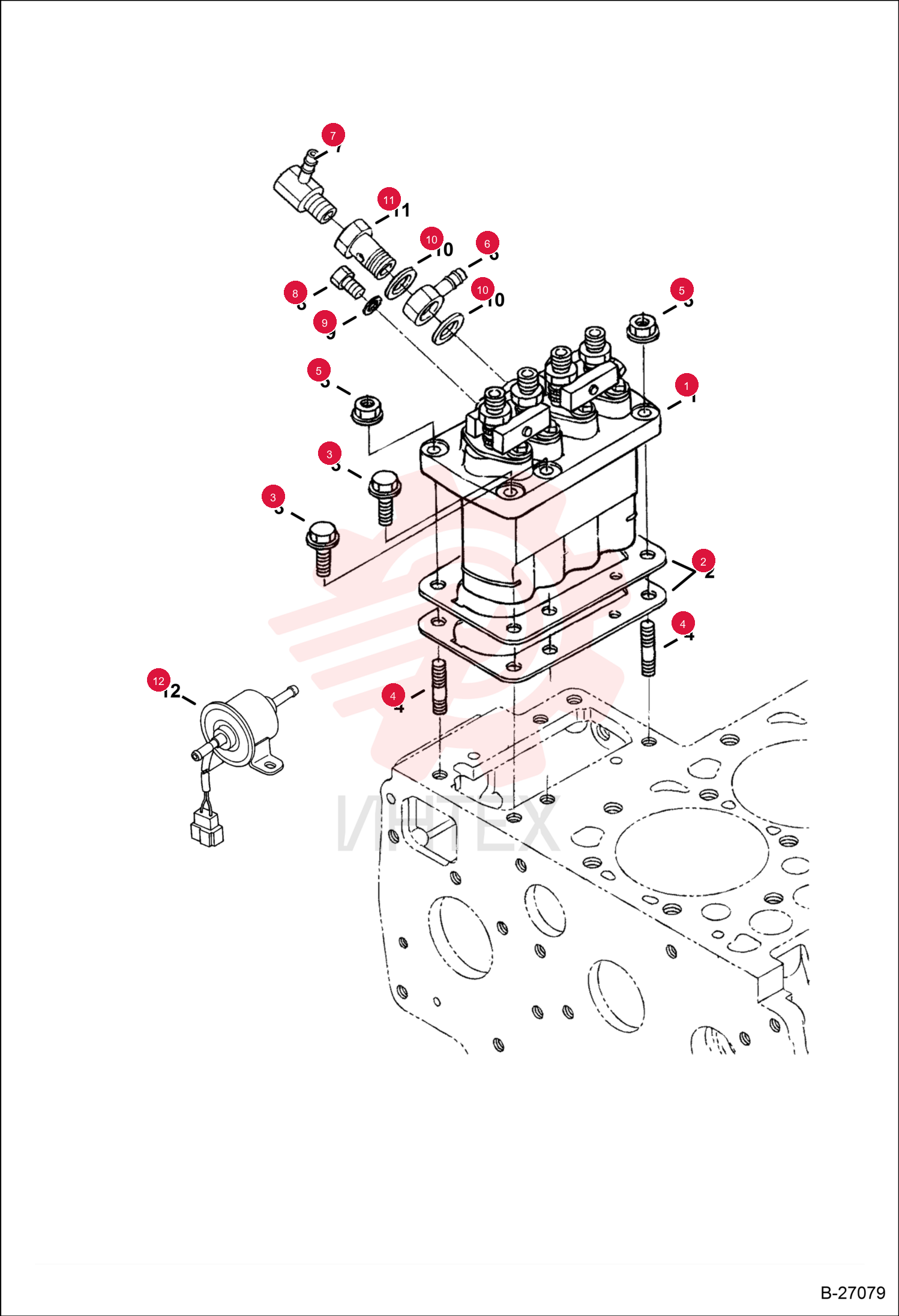

PUMP, INJECTION 6698230 (1)

PUMP, INJECTION 6698230 (1)

PUMP, INJECTION 6698230 (1)

1 6698230

  • 6698230 - PUMP
  • INJECTION

2 6684829

  • 6684829 - SHIM
  • 0
  • 35 mm - injection pump

3 6655210

  • 6655210 - SHIM
  • 0
  • 30 mm - injection pump

4 6682515

  • 6682515 - SHIM
  • 0
  • 25 mm - injection pump

5 3974626

  • 3974626 - SHIM
  • 0
  • 20 mm - injection pump

6 6698119

  • 6698119 - SHIM
  • PUMP INJ
  • 0
  • 175 mm - injection pump

7 6680801

  • 6680801 - BOLT

8 6652670

  • 6652670 - STUD 5

9 6969819

  • 6969819 - NUT
  • FLANGE

10 6513707

  • 6513707 - FITTING
  • BANJO
  • eye

11 6698262

  • 6698262 - ORIFICE

12 6599084

  • 6599084 - SCREW
  • bleeder

13 6685471

  • 6685471 - GASKET
  • bleed

14 7019024

  • 7019024 - GASKET
  • Use W/Ref. 11 (7019023 eye bolt)

15 6698120

  • 6698120 - GASKET
  • Use W/Ref. 11 (6685473 eye bolt) - Was 3974403

16 7019023

  • 7019023 - BOLT
  • EYE 12MM
  • Use W/Ref. 10 (7019024 gasket)

17 6685473

  • 6685473 - BOLT
  • EYE 12MM
  • Use W/Ref. 10 (6698120 gasket) - Was 6685473

18 6684852

  • 6684852 - PUMP
  • electric fuel
