435.0
/

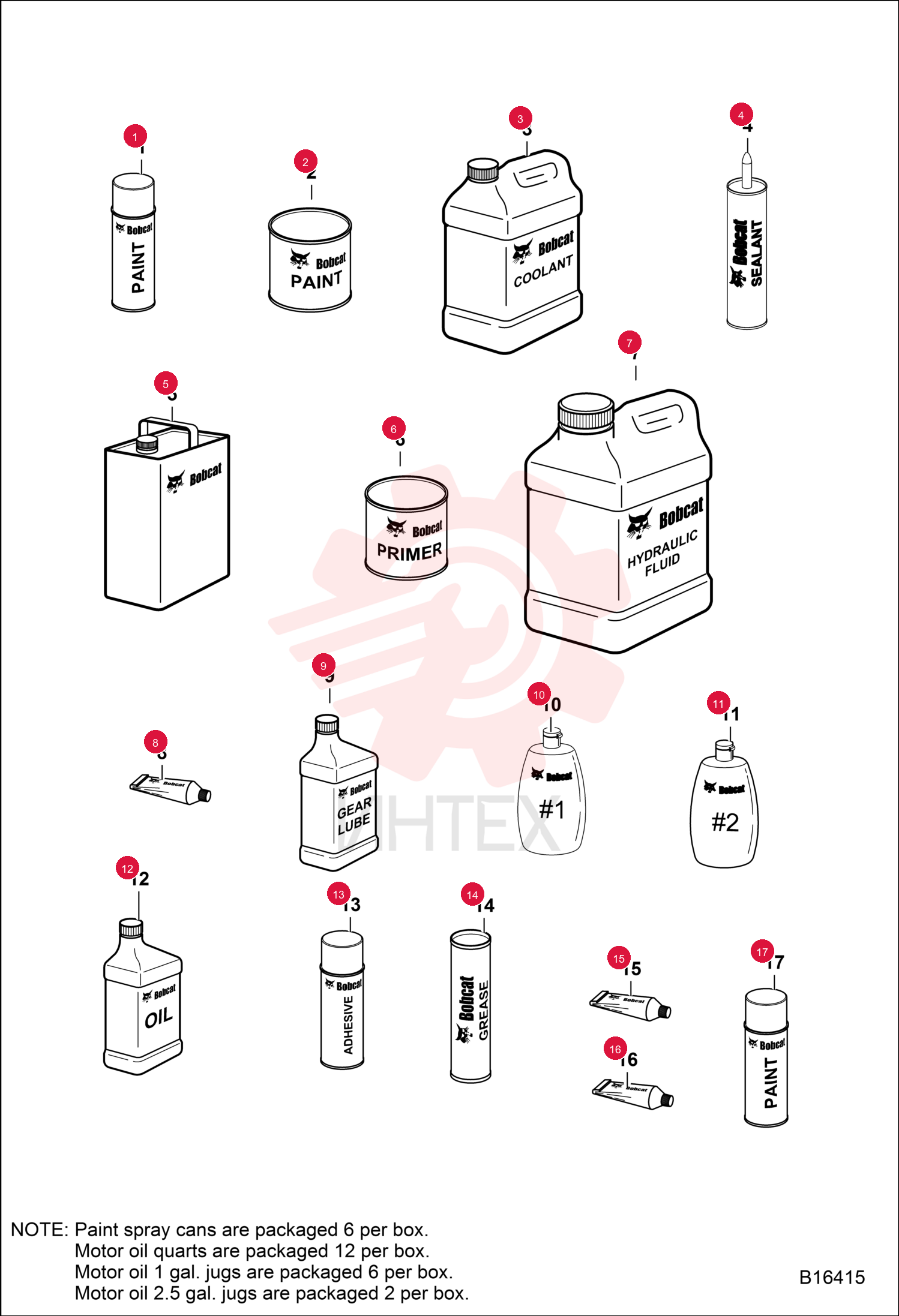

PAINT, WHITE SPRAY CAN 6 6902230 (3)

PAINT, WHITE SPRAY CAN 6 6902230 (3)

PAINT, WHITE SPRAY CAN 6 6902230 (3)

1 6902230

  • 6902230 - PAINT
  • WHITE SPRAY CAN 6

2 6902229

  • 6902229 - PAINT
  • CHARCOAL SPRAY CAN 6

3 7251690

  • 7251690 - PAINT
  • ORANGE SPRAY CAN 6
  • original shade - EMEA - Was 6902228

4 7305844

  • 7305844 - PAINT ORANGE SPRAY CAN 6
  • original shade Was 6902228 - Was 7251690

5 7305844

  • 7305844 - PAINT ORANGE SPRAY CAN 6
  • updated shade

6 6902235

  • 6902235 - PAINT
  • WHITE QT 6

7 6902234

  • 6902234 - PAINT
  • CHARCOAL QT 6

8 6722782

  • 6722782 - PNT QT 6
  • orange - quart

9 7251689

  • 7251689 - PAINT
  • ORANGE QT 6
  • original shade - EMEA original shade - EMEA

10 7305845

  • 7305845 - PAINT ORANGE QT 6
  • updated shade

11 6902233

  • 6902233 - PAINT
  • ORANGE QT 6
  • original shade

12 6983128

  • 6983128 - ANTIFREEZE/COOLANT
  • PG 53/47 PREMIX GAL

13 6983129

  • 6983129 - ANTIFREEZE/COOLANT
  • PG CONCENTRATE GAL

14 6633583

  • 6633583 - SEALANT
  • POLYURETHANE 300 ML
  • chaincase covers

15 7251705

  • 7251705 - PRIMER
  • QT 6
  • Was 6902236

16 6563330

  • 6563330 - FLUID
  • OIL HYD
  • 55 Gallon Drum

17 6722344

  • 6722344 - FLUID
  • OIL HYD
  • 5 Gallons Container

18 6563328

  • 6563328 - FLUID
  • OIL HYD
  • 5 Gallons - 2-2 1/2 Gallon Containers

19 6599360

  • 6599360 - SEALANT
  • ELEC .3 OZ
  • electrical - tube - 3 oz

20 6634393

  • 6634393 - LUBRICAN
  • 90 wt. gear - pint - for use in cooling fan drive assy

21 6630190

  • 6630190 - POLISH
  • window-1 (64 oz.)

22 6630188

  • 6630188 - POLISH
  • window - #1 - 8 oz

23 6630191

  • 6630191 - POLISH
  • window - #2 (64 oz.) - scratch remover

24 6630189

  • 6630189 - POLISH
  • window - scratch remover - #2 - 8 oz

25 6674204

  • 6674204 - 15W40 2.5GAL 2 OIL
  • 15W40 CE/SG-2.5 Gal.-SEE NOTE

26 6724558

  • 6724558 - 15W40GL 6 OIL
  • SAE 15W40 - 1 Gal. - SEE NOTE

27 6657299

  • 6657299 - 15W40QT 12 OIL
  • 15W40 CE/SG - 1 Qt. -SEE NOTE

28 6674205

  • 6674205 - 10W30 2.5GAL 2 OIL
  • 10W30 CE/SG-2.5 Gal.-SEE NOTE

29 6724557

  • 6724557 - 10W30GL 6 OIL
  • SAE 10W30 - 1 Gal. - SEE NOTE

30 6657301

  • 6657301 - 10W30QT12 OIL
  • 10W30 CE/SG - 1 Qt. -SEE NOTE

31 6674206

  • 6674206 - FLUID
  • OIL HYD 30W
  • 30 CE/SG - 2.5 Gal. - SEE NOTE

32 6657303

  • 6657303 - OIL
  • 30W QT
  • 30 CE/SG - 1 Qt. - SEE NOTE

33 6724559

  • 6724559 - OIL
  • 30W GAL
  • SAE 30 - 1 Gallon

34 6652818

  • 6652818 - ADHESIVE
  • insulation - spray can

35 6903122

  • 6903122 - GREASE
  • MULTI PURPOSE
  • general purpose

36 6650388

  • 6650388 - SEALANT
  • flange

37 6736645

  • 6736645 - PAINT
  • RED .5 OZ

38 6736642

  • 6736642 - PAINT
  • WHITE .5 OZ

39 6736641

  • 6736641 - PAINT
  • CHARCOAL .5 OZ

40 7251691

  • 7251691 - PAINT
  • ORANGE .5 OZ
  • original shade - EMEA

41 7305843

  • 7305843 - PAINT ORANGE .5 OZ
  • updated shade

42 6736644

  • 6736644 - PAINT
  • ORANGE .5 OZ
  • original shade
