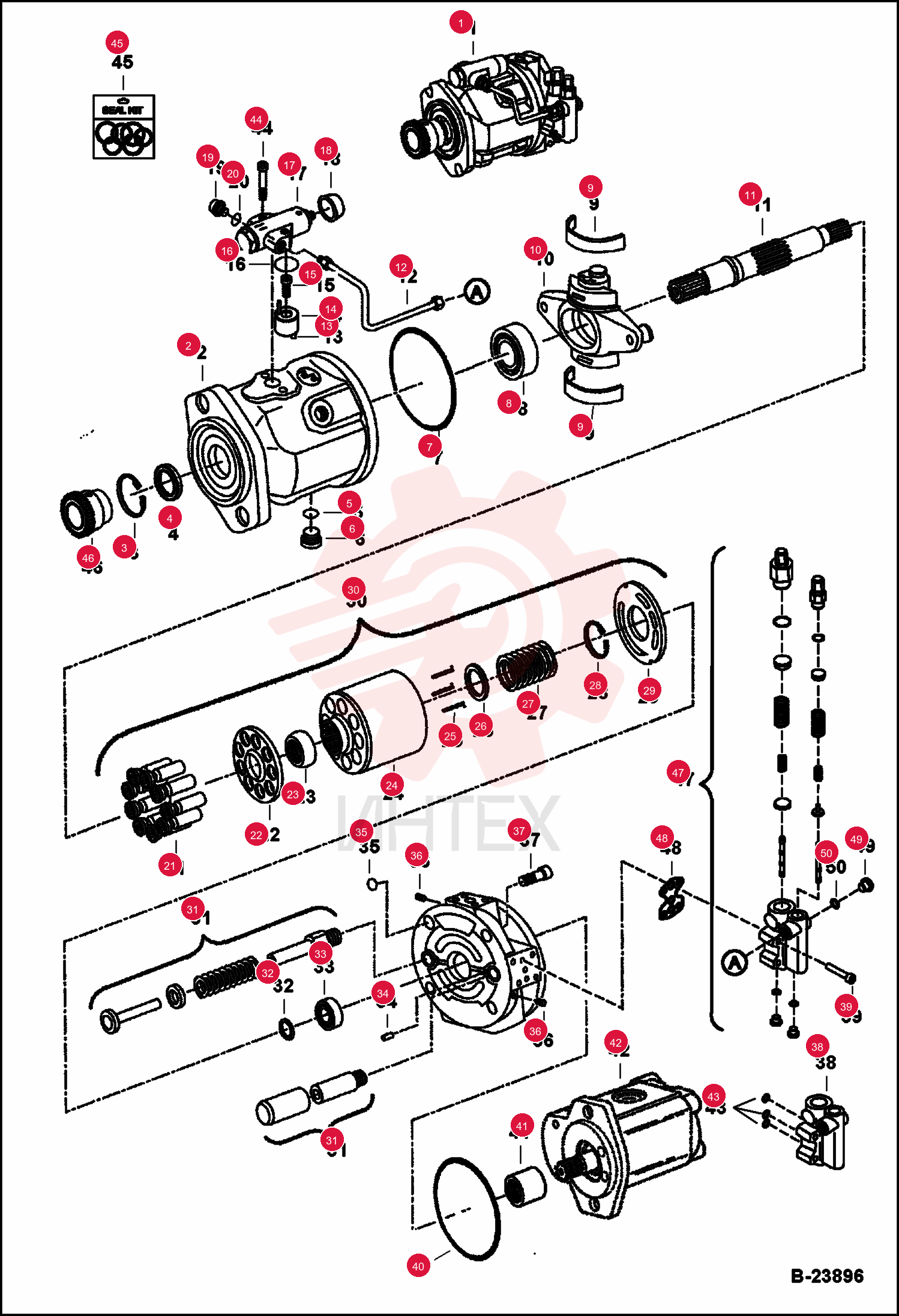

PUMP, HYD 7001430REM (3)
1 7001430REM
- 7001430REM - PUMP
- HYD
- - assy - W/gear pump - Was 6685694
2 7001430
- 7001430 - PUMP
- HYD
- - assy - W/gear pump - Was 6685694
3 6691458
- 6691458 - RING
- Was 6686754
4 6672231
- 6672231 - SEAL
- Was 6686751
5 6686757
- 6686757 - PLUG
- W/Ref. 6
6 6671787
- 6671787 - O-RING
7 6686752
- 6686752 - O-RING
8 6672228
- 6672228 - BEARING
- Was 6686749
9 6672224
- 6672224 - CRADLE ASSEMBLY
- Was 6686746
10 6688517
- 6688517 - SHAFT
- Was 6686747
11 6686776
- 6686776 - PIPE
- includes fittings
12 6676393
- 6676393 - PIN
- Was 6686773
13 6676391
- 6676391 - CARRIER
- Was 6686769
14 6686771
- 6686771 - SCREW
- SOCKET
15 6686770
- 6686770 - O-RING
16 6691344
- 6691344 - O-RING
17 6679149
- 6679149 - SPRING
18 6679148
- 6679148 - SPRING
19 6686768
- 6686768 - VALVE
- does not include spring seat - Also Order 6679148 spring & 6679149 spring
20 6686775
- 6686775 - CAP
- INSULATION
21 6671783
- 6671783 - PLUG
- goes in the X port - Was 6686767
22 6672245
- 6672245 - LENS PLTE
- Was 6686761
23 6688519
- 6688519 - ROTATING
- Ref. 21 - 29
24 6688520
- 6688520 - CONTROL
- Was 6686744
25 6691449
- 6691449 - SHIM
- adjusting - Was 6686748
26 6672229
- 6672229 - BEARING
- Was 6686750
27 6672235
- 6672235 - DOWEL PIN
- Was 6686759
28 6671783
- 6671783 - PLUG
- goes in the X port - Was 6686767
29 6672255
- 6672255 - BOLT
- Was 6686766
30 6688920
- 6688920 - ORING
31 6688921
- 6688921 - COUPLING
32 6688093
- 6688093 - PUMP
33 6686765
- 6686765 - O-RING
34 6692558
- 6692558 - SCREW
35 6686695
- 6686695 - SEAL KIT
- seal does not include Ref. 40
36 7001950
- 7001950 - CONTROL
- Use W/gasket - must replace gasket each time controller is removed
37 6691519
- 6691519 - GASKET
- one time use - must replace when controller is removed
38 6691491
- 6691491 - PLUG
- W/Ref. 50
