Bobcat
/
435.0
/

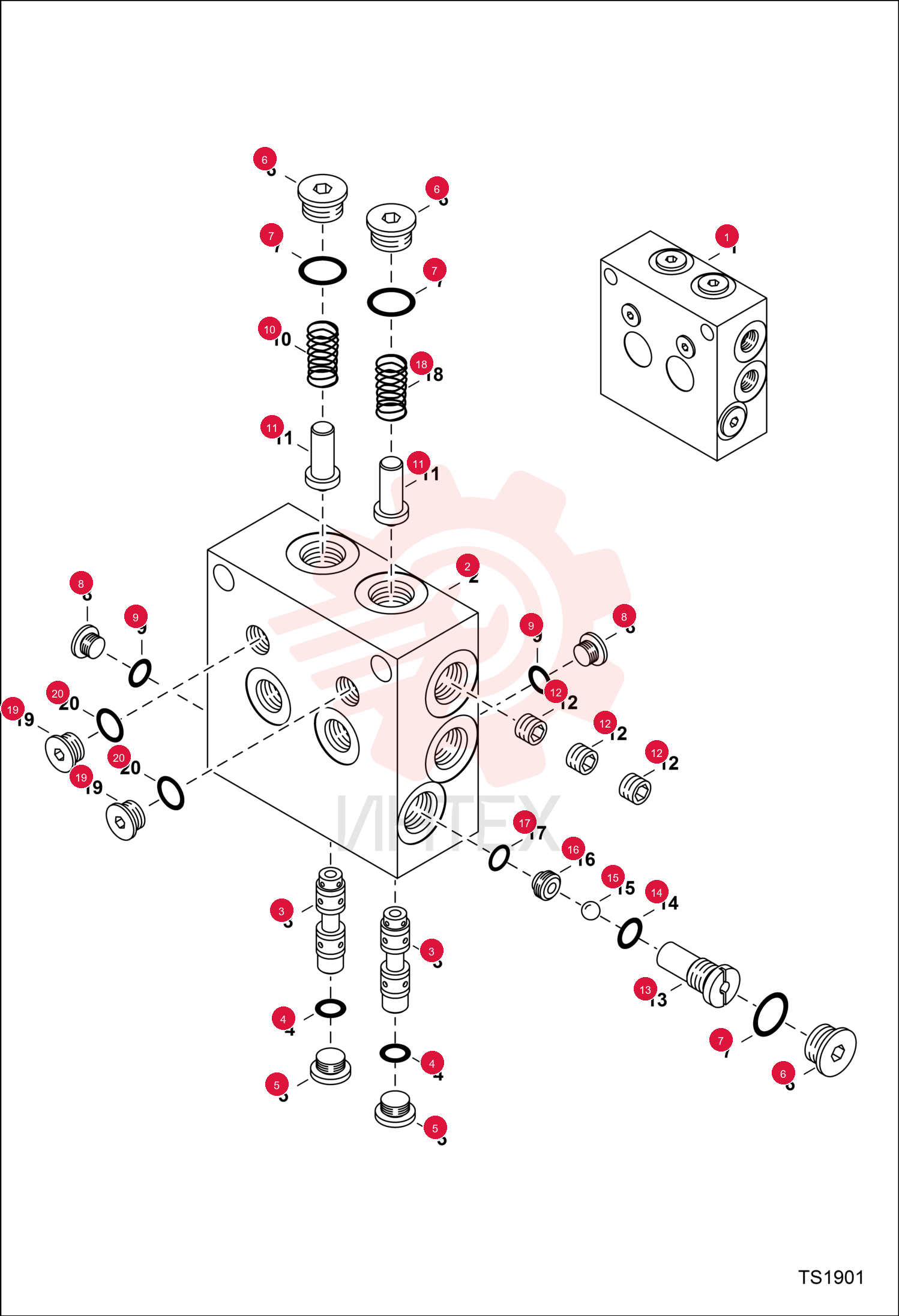

VALVE, SEQUENCE DUAL 7010002 (4)

VALVE, SEQUENCE DUAL 7010002 (4)

VALVE, SEQUENCE DUAL 7010002 (4)

1 7010002

  • 7010002 - VALVE
  • SEQUENCE DUAL
  • Ref. 2-21

2 95K4

  • 95K4 - O-RING

3 90K3

  • 90K3 - PLUG
  • W/Ref. 4 - Was 90KV3

4 24K5

  • 24K5 - PLUG
  • W/Ref. 5 - Was 90KV5

5 95K6

  • 95K6 - O'RING

6 90KV1

  • 90KV1 - PLUG
  • W/Ref. 9

7 95K2

  • 95K2 - O-RING

8 6674950

  • 6674950 - SPRING END

9 7271422

  • 7271422 - ORIFICE
  • Use W/ 7010002 valve

10 6674949

  • 6674949 - ORIFICE
  • Use W/ 6673053 valve

11 6672547

  • 6672547 - SEAL
  • O-RING

12 6672551

  • 6672551 - SEAL
  • O-RING

13 6674948

  • 6674948 - SPRING

14 90KV1

  • 90KV1 - PLUG
  • W/Ref. 20

15 95K2

  • 95K2 - O-RING
