435.0
/

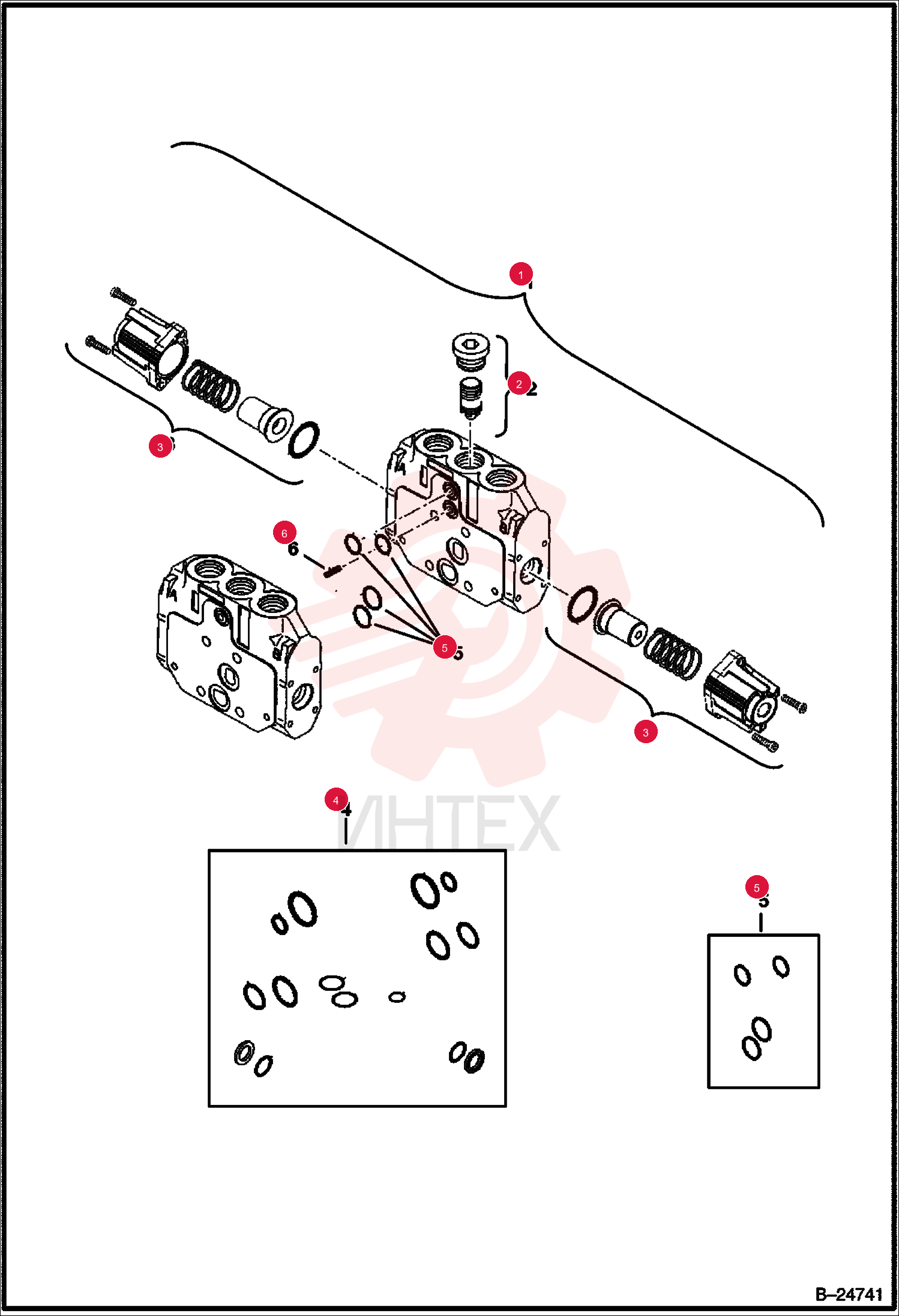

VALVE, SECTION 6679924 (1)

VALVE, SECTION 6679924 (1)

VALVE, SECTION 6679924 (1)

1 6679924

  • 6679924 - VALVE
  • SECTION
  • W/(3) O-ring grooves - Was 6686582

2 6677690

  • 6677690 - KIT
  • COMPENSATOR
  • pressure - Was 6686896

3 6677699

  • 6677699 - ACTUATOR ASSEMBLY
  • assy - Was 6685254

4 6677470

  • 6677470 - SEAL KIT
  • assy - Was 6685264

5 6677472

  • 6677472 - KIT
  • SEAL
  • Was 6686594

6 6677695

  • 6677695 - SCREW
