Bobcat
/
463
/

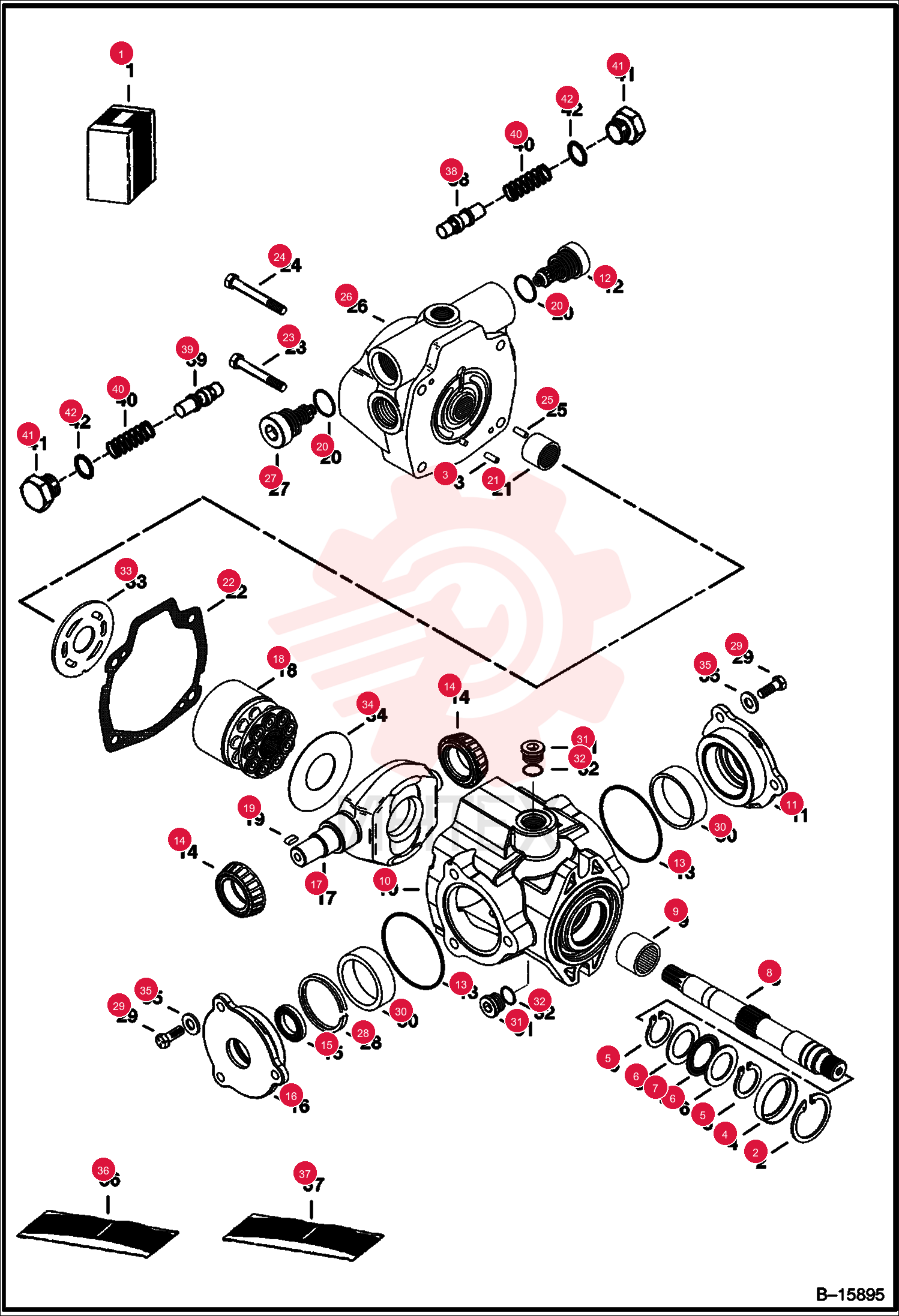

SNAP RING 661415 (1)

SNAP RING 661415 (1)

SNAP RING 661415 (1)

1 661415

  • 661415 - SNAP RING

2 6677588

  • 6677588 - PIN

3 6677591

  • 6677591 - SPACER

4 710776

  • 710776 - RING
  • RETAINER

5 6598878

  • 6598878 - RACE

6 3292657

  • 3292657 - BEARING
  • thrust

7 6677586

  • 6677586 - SHAFT

8 851239

  • 851239 - BEARING

9 6677589

  • 6677589 - HOUSING
  • W/Ref. 9 - Also Order Ref. 37

10 6677600

  • 6677600 - COVER

11 6677597

  • 6677597 - CHECK VALVE
  • W/Ref. 20

12 6677605

  • 6677605 - O-RING

13 6677598

  • 6677598 - BEARING

14 6656353

  • 6656353 - SHAFT SEAL
  • Was 6635527

15 6677599

  • 6677599 - COVER
  • Also Order Ref. 37

16 6677590

  • 6677590 - PLATE
  • yoke - Also Order Ref. 37

17 6598893

  • 6598893 - ROTAT.KIT

18 6630170

  • 6630170 - KEY

19 6677596

  • 6677596 - O-RING

20 654386

  • 654386 - BEARING

21 6635508

  • 6635508 - GASKET
  • Was NSS

22 6677601

  • 6677601 - CAP SCREW

23 6677602

  • 6677602 - CAP SCREW

24 214028

  • 214028 - PIN

25 6677587

  • 6677587 - PLATE
  • END
  • back - W/Ref. 21

26 6677595

  • 6677595 - VALVE
  • RELIEF
  • W/Ref. 20

27 6677604

  • 6677604 - CRUSH RING
  • Was N

28 6677594

  • 6677594 - CAP SCREW

29 6677603

  • 6677603 - BEARING
  • bearing

30 6677607

  • 6677607 - PLUG
  • W/Ref. 32

31 6634874

  • 6634874 - O-RING

32 6667998

  • 6667998 - PLATE
  • Was 6677606

33 6677592

  • 6677592 - PLATE
  • THRUST
  • thrust

34 6677593

  • 6677593 - WASHER

35 6677608

  • 6677608 - KIT
  • SEAL

36 6677502

  • 6677502 - SHIM KIT

37 6630243

  • 6630243 - POPPET
  • seat

38 6648940

  • 6648940 - RELIEF VALVE

39 6676143

  • 6676143 - SPRING

40 6513998

  • 6513998 - PLUG
  • W/Ref. 42
