Главная
/
Бренды
/
Bobcat
/
641.0
/

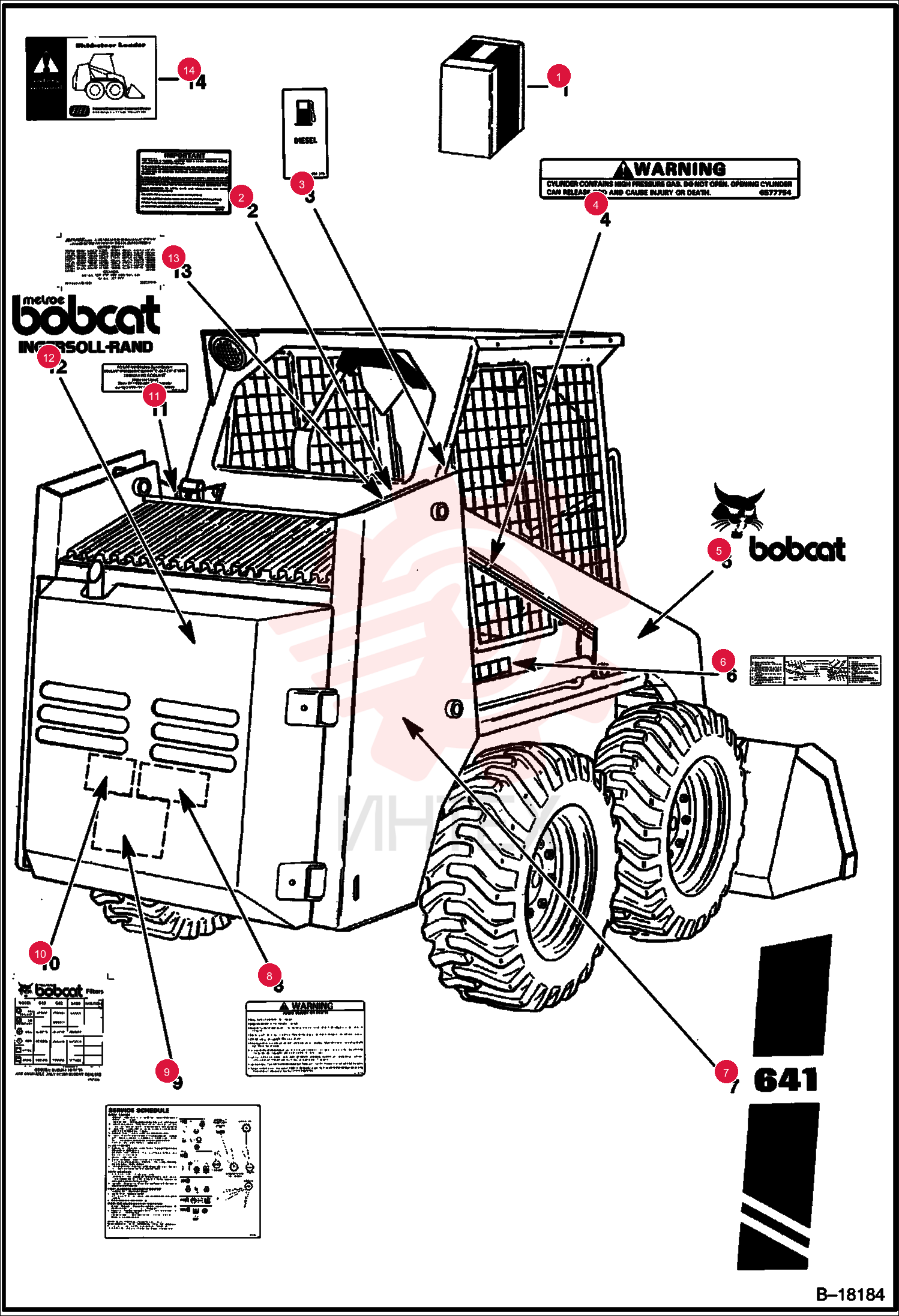

KIT, DECAL 6569280 (1)

KIT, DECAL 6569280 (1)

KIT, DECAL 6569280 (1)

1 6569280

  • 6569280 - KIT
  • DECAL
  • decal - Ref. 2-4 & 5-13 on this page & Ref. 2-18 on Ill. DECALS B18183

2 6560573

  • 6560573 - DECAL
  • SAFETY 5
  • spark arrestor

3 6589739

  • 6589739 - DECAL 5
  • diesel fuel - Was 6561379

4 6577754

  • 6577754 - DECAL
  • WARNING 5
  • gas spring

5 6557412

  • 6557412 - DECAL
  • Bobcat head

6 6557413

  • 6557413 - DECAL
  • Bobcat head

7 6706558

  • 6706558 - DECAL
  • OPERATION
  • lift arm support - Not in Kit

8 6569077

  • 6569077 - DECAL
  • model no. - R.H. - Not in Kit - Shown

9 6569076

  • 6569076 - DECAL
  • model no. - L.H. - Not in Kit

10 6579511

  • 6579511 - DECAL
  • WARNING
  • warning

11 6567875

  • 6567875 - DECAL
  • service

12 6571853

  • 6571853 - DECAL
  • filter - Not in Kit

13 6708929

  • 6708929 - DECAL
  • COOLANT
  • propylene glycol

14 6556500

  • 6556500 - MANUAL EMI SAFETY - LOADER
  • not in kit
